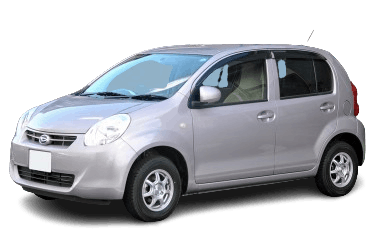

This article provides a detailed overview of the fuse box diagrams for the first-generation Daihatsu Sirion and Boon (M-platform; M300 code), covering model years 2005 through 2013.
Fuse No. 12 in the passenger compartment fuse box protects the cigarette lighter / 12V power outlet circuit.
Engine Compartment Fuse Box
The fuse box is located on the left side of the engine compartment, adjacent to the battery.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| F1 | Main ignition circuit | 50 |
| F2 | Power steering | 50 |
| F3 | Starter motor | 50 |
| F4 | Anti-lock Braking System (ABS) module | 40 |
| F5 | Ignition switch | 30 |
| F6 | Radiator cooling fan motor | 30 |
| F7 | Power windows | 30 |
| F8 | HVAC blower motor | 40 |
| F9 | Engine Control Module (ECM) | 15 |
| F10 | Horn | 10 |
| F11 | A/C compressor magnetic clutch | 10 |
| F12 | Stop lamps / Brake lights | 15 |
| F13 | Engine Control Module (ECM) | 10 |
| F14 | Anti-lock Braking System (ABS) | 20 |
| F15 | Instrument cluster, clock, parking lights | 10 |
| F16 | Interior illumination / Dome light | 7.5 |
| F17 | Reversing lamps / Backup lights | 15 |
| F18 | Right fog lamp | 10 |
| F19 | Left fog lamp | 10 |
| F20 | Right fog lamp | 10 |
| F21 | Left fog lamp | 10 |
| F22 | Right headlamp (High beam) | 10 |
| F23 | Left headlamp (High beam) | 10 |
| F24 | A/C system | 7.5 |
| 1 | HVAC Blower Motor Relay | |
| 2 | Radiator Cooling Fan Relay | |
| 3 | Headlamp Relay | |
| 4 | A/C Compressor Magnetic Clutch Relay | |
| 5 | Fog Lamp Relay | |
Passenger Compartment Fuse Box
The fuse box is located underneath the dashboard.
General view of the passenger compartment fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| F1 | Starter | 7.5 |
| F2 | Central locking system | 15 |
| F3 | Turn signal and hazard warning lamps | 10 |
| F4 | Windshield wipers and washers | 20 |
| F5 | Power windows | 30 |
| F6 | Engine Control Module (ECM) | 10 |
| F7 | Alternator / Battery charging indicator | 7.5 |
| F8 | Rear window defogger | 20 |
| F9 | Transmission Control Module (TCM) and shift position indicators. Power windows. Rear window wiper and washer. Central locking and “Key Free” system. Turn signal and hazard warning lamps. Windshield wipers and washers. Reversing lamps. Manual A/C and air ionizer. |
7.5 |
| F10 | Engine Control Module (ECM) | - |
| F11 | Power mirrors. Central locking and “Key Free” system. Audio system. | 7.5 |
| F12 | Cigarette lighter / 12V power outlet | 30 |
| 1 | Starter Relay | |
| 2 | Turn Signal Flasher Relay | |
| 3 | Ignition / Accessory Relay | |
| 4 | Engine Control Module (ECM) Relay | |
| 5 | Horn Relay | |
| 6 | Fuel Pump Relay | |
