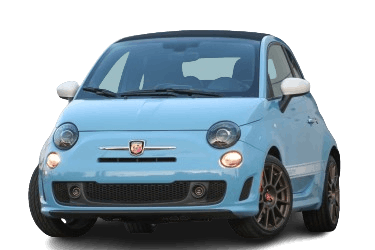

The Fiat 500 is a compact, front-wheel-drive city car. The standard configuration features a three-door body style with seating for four. Similar to the Volkswagen New Beetle and BMW MINI, its exterior design incorporates distinct retro styling cues. This article provides a detailed overview of the fuse box diagrams for the second-generation Fiat 500 (Type 150; Small Wide platform) facelift models produced between 2014 and 2022.
Below, you will find the locations and diagrams of the power distribution centers. The fuses corresponding to the “Cigarette Lighter” and “Fuel Pump” are highlighted in bold.
Engine Compartment Fuse Box
Located on the right side of the engine compartment, adjacent to the battery.
An example of the layout is shown above.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| F01 | Body Control Module (BCM) | 60 |
| F02 | Audio Amplifier | 20 |
| F03 | Ignition Switch | 20 |
| F04 | Anti-lock Braking System (ABS) Pump | 40 |
| F05 | Electric Power Steering (EPS) | 70 |
| F06 | Radiator Cooling Fan — Single Speed | 20 |
| F06 | Radiator Cooling Fan — Low Speed | 30 |
| F07 | Radiator Cooling Fan — High Speed | 40 |
| F08 | HVAC Blower Motor | 40 |
| F09 | Powertrain Control Module (PCM) | 10 |
| F10 | Horn | 10 |
| F11 | Powertrain Control Module (PCM) | 15/10 |
| F14 | High Beam (Projector Shutter) | 5 |
| F15 | Cigarette Lighter / Power Outlet | 15 |
| F16 | Transmission Control Module (TCM) | 7.5 |
| F17 | Engine Management (MultiAir — if equipped) | 15/25 |
| F18 | Engine Management | 15 |
| F18 | Powertrain Components (MultiAir — if equipped) | 5 |
| F19 | A/C Compressor Clutch | 7.5 |
| F20 | Heated Seats (if equipped) | 15 |
| F21 | Fuel Pump Module | 15 |
| F22 | Engine Management | 20 |
| F23 | Anti-lock Braking System (ABS) Valves | 20 |
| F24 | Electronic Stability Control (ESC) | 7.5 |
| F30 | Fog Lights | 15 |
| F82 | Sunroof / Convertible Soft Top | - |
| F83 | Coolant Pump (if equipped) | - |
| F84 | Transmission | 10 |
| F85 | Rear Window Defroster | - |
| F87 | Rear Window Defroster | 5 |
| F90 | Heated Outside Mirrors (if equipped) | 5 |
Passenger Compartment Fuse Box
The interior fuse block is integrated into the Body Control Module (BCM) and is located under the dashboard on the driver's side.
Overview of the Fiat 500 interior fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| F13 | Left Low Beam, Headlight Leveling | 7.5 |
| F50 | Supplemental Restraint System (Airbags) | 7.5 |
| F51 | Audio System, Climate Control, Brake Light Switch, Clutch Switch | 5 |
| F37 | Brake Light Switch, Instrument Cluster | 5 |
| F49 | Power Mirrors, Navigation System, Parking Sensors | 5 |
| F31 | Ignition, Climate Control System | 5 |
| F47 | Driver's Side Power Window | 20 |
| F12 | Right Low Beam | 7.5 |
| F32 | Front and Rear Dome Lights, Cargo Area and Door Illumination | 5 |
| F53 | Instrument Cluster | 5 |
| F38 | Central Locking System | 20 |
| F36 | OBD-II Diagnostic Port, Audio System, Climate Control | 10 |
| F43 | Windshield Wipers and Washer Pump | 20 |
| F48 | Passenger's Side Power Window | 20 |
