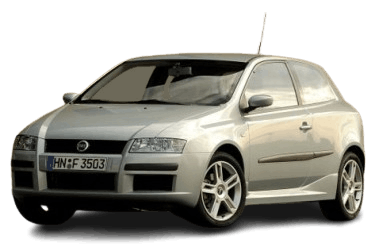

The Fiat Stilo is a C-segment vehicle produced by the Italian manufacturer from 2001 to 2010. The car premiered at the 2001 Geneva Motor Show. Initially, the model was available only as a hatchback. In 2003, a station wagon variant was introduced, designated as the Stilo MultiWagon. In this article, we provide a detailed overview of the fuse box diagrams for the first-generation Fiat Stilo (body code 192), covering the 2001–2010 model years.
Here you will find the locations and photos of the fuse and relay boxes. The fuses protecting the "cigarette lighter" and "fuel pump" circuits are highlighted in bold.
In the engine compartment
The main fuse box is located next to the battery, beneath a protective cover. Additionally, a primary fuse block containing high-current mega fuses is mounted directly to the positive battery terminal.
Main fuse box
The image below illustrates the layout of the main fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Protected Component | Rating (A) |
| F1 | Anti-lock Braking System (ABS) | 60 |
| F2 | Electronic Power Steering (EPS) | 70 |
| F3 | Selespeed automated transmission | 30 |
| F4 | Radiator cooling fan motor (low speed) – 1.2/1.6 | 30 |
| F5 | Radiator cooling fan motor (high speed) – 1.2/1.6 | 50 |
| F6 | Glow plugs (diesel engines) | 50 |
| F7 | Auxiliary heater, HVAC system | 30 |
| F8 | Ignition switch | 20 |
| F9 | Engine control module (ECM) – diesel | 30 |
| F10 | Engine control module (ECM) – petrol | 15 |
| F11 | 15 | |
| F12 | Engine control module (ECM) – diesel/petrol | 10 |
| F13 | 15 | |
| F14 | A/C compressor clutch, engine control module (ECM) | 7.5 |
| F15 | Selespeed automated transmission | 15 |
| F16 | Front fog lights | 15 |
| F17 | Headlight washer pump | 20 |
| F18 | Radiator cooling fan control module ( 1.8/2.0/JTD ), engine control module (ECM), starter relay (Selespeed) | 7.5 |
| F19 | Air conditioning system | 7.5 |
| F20 | Left high beam headlight | 10 |
| F21 | Horn | 15 |
| F22 | Right high beam headlight | 10 |
| F23 | Electronic Power Steering (EPS) | 10 |
| 1 | Fuel heater relay | |
| 2 | Empty / Not used | |
| 3 | Engine control module (ECM) relay | |
| 4 | Fuel pump module / Fuel pump relay | |
| 5 | Radiator cooling fan relay – low speed (1.2/1.6) | |
| 6 | A/C compressor clutch relay | |
| 7 | Radiator cooling fan relay – high speed (1.2/1.6) | |
| 8 | Headlight washer pump relay | |
| 9 | Front fog light relay | |
| 10 | Horn relay | |
| 11 | HVAC blower motor relay | |
| 12 | High beam headlight relay | |
Battery fuse panel
Mounted directly on the positive battery terminal.
| Diagram | ||
|---|---|---|
|
||
| No. | Protected Circuit | Rating (A) |
| F1 | Passenger compartment fuse box power supply | 70 |
| F2 | Power window relay, sunroof relay, luggage compartment fuse box power supply | 60 |
| F3 | Auxiliary heater | 50 |
| F4 | Engine compartment fuse box power supply | 150 |
In the passenger compartment
The interior fuse box is located on the driver's side, behind the lower dashboard trim panel.
General view of the Fiat Stilo (192) passenger compartment fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Protected Component | Rating (A) |
| F1 | Power window (right rear door) | 20 |
| F2 |
|
20 |
| F3 | Anti-lock Braking System (ABS), alarm system, audio system, auxiliary heater, HVAC system, turn signals, interior lighting, telematics/telephone, parking assist module, power sunroof, rain/light sensor | 7.5 |
| F4 | Anti-lock Braking System (ABS), brake light switch, cruise control system, engine control module (ECM) | 7.5 |
| F5 | Headlight leveling system, left low beam headlight | 15 |
| F6 | Power sunroof | 20 |
| F7 | Power window (left rear door) | 20 |
| F8 | Supplemental Restraint System (SRS / Airbags), Anti-lock Braking System (ABS), engine control module (ECM), HID (xenon) headlights, headlight leveling system, instrument cluster, trip computer, brake lights | 10 |
| F9 | Anti-lock Braking System (ABS) | 7.5 |
| F10 | Headlight leveling system, right low beam headlight | 15 |
| F11 | Power sunroof | 20 |
| F12 | Driver's door control module, power window (driver) | 20 |
| F13 | Body control module (BCM) / Door lock module | 15 |
| F14 | Supplemental Restraint System (SRS / Airbags) | 7.5 |
| F15 | Tire Pressure Monitoring System (TPMS) module | 7.5 |
| F16 | Rear window wiper/washer | 15 |
| F17 | Heated windshield washer nozzles | 7.5 |
| F18 | Windshield and rear window wiper/washer systems | 30 |
| F19 | Heated rear window (defogger) | 30 |
| F20 | 12V auxiliary power outlet, cigarette lighter | 20 |
| F21 | Central locking system, switch illumination, trailer wiring harness connector | 20 |
| F22 | Alarm system, audio system, auxiliary heater, OBD-II diagnostic connector, interior lighting, HVAC system, telematics/telephone, TPMS module, navigation system | 10 |
| F23 | Tailgate/trunk release actuator, fuel filler door release actuator | 10 |
| F24 | Hazard warning lights, instrument cluster, trip computer | 10 |
| F25 | Air quality sensor (HVAC), power mirrors, headlight washer system, HVAC system, rear window wiper/washer, reverse lights, windshield wiper/washer | 7.5 |
| Relay Functions | ||
| 1 | Power windows, power sunroof relay | |
| 2 | Heated rear window (defogger) relay | |
| 3 | Windshield wiper motor relay, cigarette lighter relay | |
| 4 | Headlight relay | |
In the luggage compartment
The rear fuse box is located behind the trim panel on the left side of the luggage compartment.
| Diagram | ||
|---|---|---|
|
||
| No. | Protected Component | Rating (A) |
| F1 | Spare / Unused | — |
| F2 | Spare / Unused | — |
| F3 | Alarm system | 10 |
| F4 | Spare / Unused | — |
| F5 | Audio amplifier (premium audio system) | 25 |
| F6 | Spare / Unused | |
| F7 | Power driver's seat | 30 |
| F8 | Heated passenger seat | 10 |
| F9 | Heated driver's seat | 10 |
| F10 | Power passenger seat | 30 |
| F11 | Spare / Unused | — |
| F12 | High-mount stop light (CHMSL), cruise control | 7.5 |
| 1 | Heated seats relay | |
| 2 | Stop light relay, high-mount stop light (CHMSL), cruise control | |
