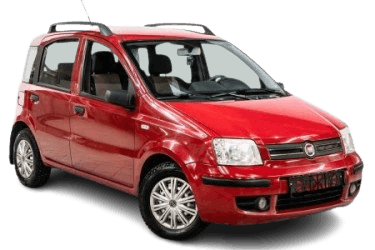

The second generation Fiat Panda went on sale in autumn 2003. Created on a new platform, the car was exclusively five-door. The very next year, the model was recognized as the best European car. This generation was marked by the appearance of a very popular Cross modification and a sports version 100HP. In this material, we will analyze in detail the 2nd generation Panda fuse circuits 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012 of release.
Here you will find the locations and photos of the mounting blocks. Separately, we note the fuses responsible for the cigarette lighter and the fuel pump.
In the passenger compartment
It is located on the driver's side behind the dashboard trim. To access the unit, unscrew the fixing screws.
Location of components:
1 - panel A;
2 - panel B;
3 - tweezers for extracting fuses.
Panel A
Access example.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| F31 | reversing lights | 7.5 |
| F35 | Audio system | 7.5 |
| F37 | Stop lights | 10 |
| F41 | Door mirror heater | 7.5 |
| F45 | Seat heater | 25 |
| F46 | Sunroof | 20 |
| F49 | Air conditioning system, fuel filter water sensor, tire pressure monitoring control unit | 7.5 |
| F50 | Airbag | 10 |
| F51 | Instrument cluster, multifunctional control unit | 7.5 |
| FA | — | |
| FB | — | |
Panel B
General view.
| Diagram | ||
|---|---|---|
|
||
| No. | Purpose | A |
| F12 | Right headlight low beam | 10 |
| F13 | Left headlight - low beam | 10 |
| F38 | central locking | 20 |
| F39 | Air conditioning system, audio system, diagnostic socket, multifunction control unit, telephone, tire pressure monitoring control unit | 10 |
| F40 | Rear window heater | 30 |
| F43 | Windshield wiper/washer | 30 |
| F47 | Power windows | 20 |
| F48 | 20 | |
| F52 | Rear wiper motor | 15 |
| F53 | Rear window washer, windshield washers | 15 |
In the engine compartment
The block is located near the battery. To gain access to the fuses, you need to depress the two latches A and B.
Photo - an example of execution.
Type 1
Models from 2007 of release.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| 1 | Air conditioning compressor | 7.5 |
| 2 | high beam | 15 |
| 3 | Sound signal | 15 |
| 4 | trailer control unit | 15 |
| 5 | Engine management | 7.5 |
| 6 | ABS/ESP control unit | 20 |
| 7 | Fog lights | 15 |
| 8 | Fuel pump | |
| 9 | headlight washer | 20 |
| 10 | Transmission | 15 |
| 11 | Gas injection control unit or Reserve | 20 |
| 12 | Engine management / Gearbox | 7.5 |
| 13 | Electric power steering | 10 |
| 14 | ABS / Brake lights | 7.5 |
| 15 | Engine cooling fan | 40 |
| 16 | Dashboard | 70 |
| 17 | ABS / ESP | 40 |
| 18 | Electric power steering | 60 |
| 19 | Engine cooling fan | 30 |
| 20 | Selespeed | 30 |
| 21 | Egnition lock | 20 |
| 22 | Not used | |
| 23 | Not used | |
| 24 | Fuse box No. 2 in the cabin | 30 |
| 25 | A/C Compressor / Engine Management | 15 |
| 26 | Engine management | 10 |
| 27 | Engine management | 20 |
| 28 | climate control fan | 30 |
| 29 | Cigarette lighter fuse / 12V socket | 20 |
| R1 | Engine cooling fan | |
| R2 | Engine cooling fan | |
| R3 | Sele speed gearbox | |
| R4 | Main relay | |
| R5 | climate control fan | |
| R6 | Cigarette lighter, accessory socket | |
| R7 | headlight washer | |
| R8 | fog lights | |
| R9 | immobilizer | |
| R10 | GAS solenoid valves (depending on configuration) | |
| R11 | high beam | |
| R12 | Horn | |
| R13 | Climate control compressor relay | |
| R14 | Fuel pump | |
Type 2
Up to 2007 model year.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| F1 | Multifunction control box | 70 |
| F2 | Dashboard Fuse/Relay Box 1 (F45/F54) | 40 |
| F3 | Automatic transmission-Selespeed | 30 |
| F4 | Anti-Lock Braking System (ABS) | 60 |
| F5 | power steering | 60 |
| F6 | Cooling Fan Motor 1 - Low Speed | 30 |
| F7 | Cooling fan motor 2 - high speed | 40 |
| F8 | Air conditioner | 30 |
| F9 | Headlight washers | 20 |
| F10 | Sound signal | 15 |
| F11 | Engine management | 15 |
| F14 | high beam headlights | 15 |
| F16 | Engine management | |
| F17 | Engine management | 15 |
| F18 | Engine management | |
| F19 | Air conditioner | |
| F20 | Fuel filter heater | 30 |
| F21 | Fuel Primer Pump - Diesel | 15 |
| F22 | Engine management | 30 |
| F23 | Egnition lock | 30 |
| F24 | power steering | 15 |
| F30 | Fog lights | 15 |
| F32 | Engine management | 15 |
| F36 | Trailer control unit | 20 |
| F42 | Anti-lock braking system (ABS), brake lights | 7.5 |
| F44 | Cigarette lighter fuse Fiat Panda 2 | 20 |
| F71 | glow plugs | 80 |
| F72 | Coolant heater 1 | 30 |
| F73 | Coolant heater 2 | 50 |
| 2 | high beam headlights | |
| 3 | Horn | |
| 5 | AC compressor electromagnetic clutch | |
| 6 | Cooling Fan - Low Speed | |
| 7 | Cooling Fan - High Speed | |
| 8 | heater fan | |
| 9 | Engine management system | |
| 10 | Priming fuel pump - Diesel | |
| 14 | Fog lights | |
| 17 | headlight washer pump | |
| 19 | fuel heater | |
| 20 | Start inhibit switch | |
| 21 | Automatic transmission control system - Selespeed | |
