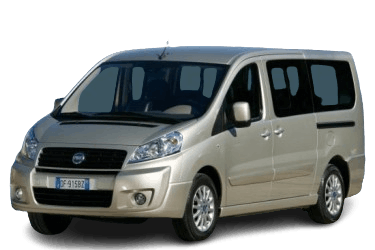

The Fiat Scudo is a minivan produced since 1995, also marketed under the Citroën Jumpy and Peugeot Expert nameplates. This article provides a comprehensive overview of the fuse box diagrams for the second-generation Fiat Scudo (chassis code 270 / 272), covering model years 2007 through 2016.
Below, you will find the locations and diagrams of the power distribution boxes. The fuses protecting the "Cigarette lighter" and "Fuel Pump" circuits are highlighted in bold.
Passenger Compartment
Two power distribution boxes are located within the cabin to protect various electrical circuits.
Main Fuse Box
Left-hand-drive (LHD) vehicles: The main fuse box is located on the passenger side, behind the glove compartment.
Right-hand-drive (RHD) vehicles: The main fuse box is located on the driver's side, behind the glove compartment.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| F1 | Rear window wiper | 15 |
| F2 | Spare | - |
| F3 | Supplemental Restraint System (SRS) / Airbag control module | 5 |
| F4 | Headlamp leveling system, OBD-II diagnostic port, Electronic Stability Program (ESP) control module, HVAC climate control, diesel particulate filter (DPF) additive pump, steering angle sensor | 10 |
| F5 | Power side mirrors, passenger power window | 30 |
| F6 | Driver power window | 30 |
| F7 | Interior dome lights, glove compartment illumination | 5 |
| F8 | Multifunction display, anti-theft alarm siren, audio system, CD changer, telematics/radiotelephone, trailer towing control module | 20 |
| F9 | Cigarette lighter, 12V auxiliary power outlet in luggage compartment | 10 |
| F10 | Tailgate switch/rear trim strip, starter motor relay, instrument cluster | 30 |
| F11 | OBD-II diagnostic port, immobilizer/anti-theft control module | 15 |
| F12 | Base equipment, SRS / Airbag control module | 15 |
| F13 | Engine Control Module (ECM), trailer towing control module | 5 |
| F14 | Rain sensor, automatic climate control panel, rear cabin HVAC system | 15 |
| F15 | Central locking system | 30 |
| F16 | Spare | - |
| F17 | Rear window defogger and heated side mirrors | 40 |
Auxiliary Fuse Panel
An auxiliary fuse panel is located on the right side, beneath the floor trim.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| F1 | Heated seats | 30 |
| F2 | 12V auxiliary power outlet (third-row seating) | - |
| F3 | Trailer towing control module | 40/50 |
| F4 | Spare | - |
| F36 | Central locking system | 15 |
| F37 | Central locking system | 10 |
| F38 | Rear window wiper | 20 |
| F39 | Rear cabin HVAC blower | - |
| F40 | Power folding side mirrors | 5 |
Engine Compartment
Depending on the vehicle's trim level and options, there may be one or two power distribution boxes located in the engine bay to protect electrical circuits.
Main Engine Bay Fuse Box
This unit is located adjacent to the windshield washer fluid reservoir.
General view of the Fiat Scudo under-hood power distribution box.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| F1 | Engine Control Module (ECM), fuel injection system, radiator cooling fan relay | 20 |
| F2 | Horn | 15 |
| F3 | Windshield and rear window washer fluid pump | 10 |
| F4 | Headlamp washer pump | 20 |
| F5 | Fuel pump module | 15 |
| F6 | Secondary brake light switch, electro-hydraulic power steering (EHPS) pump | 10 |
| F7 | Anti-lock Braking System (ABS) / Electronic Stability Program (ESP) control module | 10 |
| F8 | Ignition switch | 20 |
| F9 | Primary brake light switch | 10 |
| F10 | Fuel injection system / Throttle body | 30 |
| F11 | HVAC blower motor | 40 |
| F12 | Windshield wipers | 30 |
| F13 | Body Control Module (BCM) / Various circuits | 40 |
| F14 | Spare | 30 |
Auxiliary Fuse Box
Depending on the vehicle's specification, an auxiliary fuse box may also be present.
| Diagram | ||
|---|---|---|
|
||
| F1 | Spare | 15 |
| F2 | Auxiliary alternator and relay contact | 15 |
| F3 | Trailer towing equipment | 15 |
| F4 | Power inverter | 15 |
| F5 | Turn signals / Hazard lights | 40 |
