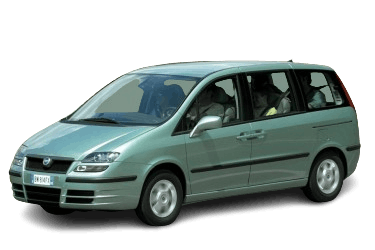

The Fiat Ulysse II is a front-wheel-drive multi-purpose vehicle (MPV). It was available with both manual and automatic transmissions. In this article, we will take a detailed look at the power distribution and fuse box diagrams for the second-generation Fiat Ulysse (chassis code 179; model years 2002–2011), covering both diesel and gasoline engine variants.
Below, you will find the locations and photographs of the power distribution boxes. The fuses responsible for the “Cigarette Lighter” and “Fuel Pump” are highlighted in bold.
Passenger Compartment
Two power distribution boxes are located in this area to protect the vehicle's electrical circuits.
Main Fuse Box
The main power distribution box is located behind the glove box on the passenger side.
General view of the Fiat Ulysse interior fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| 1 | Rear fog lamps | 10 |
| 2 | Heated rear window | 15 |
| 4 | Main electronic control unit (ECU) power supply | 15 |
| 5 | Left stop lamp | 10 |
| 7 | Fiat Ulysse II cigarette lighter fuse, passenger side glove box illumination, auto-dimming rearview mirror | 20 |
| 9 | Front sunroof, windshield wipers | 30 |
| 10 | OBD-II diagnostic port | 20 |
| 11 | Alarm system, Connect infotainment system, audio system, multifunction display, steering wheel controls, diesel particulate filter (DPF) additive module | 15 |
| 12 | License plate lamps, right parking lamp, climate control illumination, interior dome lights (1st, 2nd, and 3rd rows) | 10 |
| 14 | Door locking system, central locking | 30 |
| 15 | Rear window wiper | 30 |
| 16 | Supplemental Restraint System (SRS/Airbag) power supply, main electronic control unit (ECU) power supply | 5 |
| 17 | Right stop lamp, Center High-Mount Stop Lamp (CHMSL), trailer stop lamps | 15 |
| 18 | Diagnostic port power, brake and clutch pedal position switches | 10 |
| 20 | Audio system | 10 |
| 22 | Left parking lamp, trailer parking lamp | 10 |
| 23 | Electronic alarm siren | 15 |
| 24 | Parking assist module | 15 |
| 26 | Heated rear window | 40 |
Auxiliary Fuse Box
The auxiliary power distribution box is located in the floor compartment on the front passenger side.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| F1 | Right power sliding door actuator | 40 |
| F2 | Left power sliding door actuator | 40 |
| F3 | Hi-Fi audio amplifier | 30 |
| F4 | Spare | - |
| F29 | Spare | - |
| F30 | Spare | - |
| F31 | Spare | - |
| F32 | Power-adjustable driver's seat | 25 |
| F33 | Power-adjustable front passenger seat | 25 |
| F34 | Sunroof (3rd row) | 20 |
| F35 | Sunroof (2nd row) | 20 |
| F36 | Heated front passenger seat | 10 |
| F37 | Heated driver's seat | 10 |
| F38 | Power child safety locks | 15 |
| F39 | 12V power outlet (3rd row) | 20 |
| F40 | 12V power outlet (front console) | 20 |
| MF1 | Right power sliding door actuator | 40 |
| MF2 | Left power sliding door actuator | 40 |
| MF3 | Hi-Fi audio amplifier | 30 |
| MF4 | Spare | - |
Engine Compartment
The engine compartment fuse box is located on the right side.
Example of access.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| 1 | Reverse lamp switch, xenon headlamps, electric cooling fan control, engine coolant level sensor, heated diesel fuel filter, glow plugs, cruise control system, mass air flow (MAF) sensor | 10 |
| 2 | Fuel pump module, Exhaust Gas Recirculation (EGR) system, and turbocharger | 15 |
| 3 | Anti-lock Braking System (ABS), Electronic Stability Program (ESP) | 10 |
| 4 | Ignition-switched power supply for the main electronic control unit (ECU) | 10 |
| 5 | Diesel Particulate Filter (DPF) system | 10 |
| 6 | Front fog lamps | 15 |
| 7 | Headlamp washers | 20 |
| 8 | ECU relay power supply, electric cooling fan relay, diesel fuel pressure control solenoid, and EGR system | 20 |
| 9 | Left low beam headlamp, headlamp leveling system | 15 |
| 10 | Right low beam headlamp | 15 |
| 11 | Left high beam headlamp | 10 |
| 12 | Right high beam headlamp | 10 |
| 13 | Horn | 15 |
| 14 | Windshield washer pump (rear window) | 10 |
| 15 | Oxygen (O2) sensor, fuel injectors, spark plugs, EVAP purge solenoid, fuel pressure solenoid | 30 |
| 17 | Windshield wipers | 30 |
| 18 | Auxiliary cooling fans | 40 |
| “MAXI” Fuse Block | ||
|
||
| MF1 | Electric cooling fan (high speed) | 50 |
| MF2 | Anti-lock Braking System (ABS) control module | 50 |
| MF3 | 30 | |
| MF4 | Main electronic control unit (ECU) power supply 1/2 | 60 |
| MF5 | 70 | |
| MF6 | Electric cooling fan (low speed) | 30 |
| MF7 | Fiat CODE immobilizer system / Ignition switch | 40 |
| MF8 | Climate control system blower motor (A/C and heater) | 50 |
