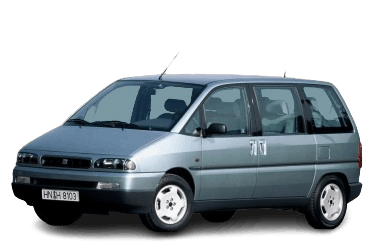

The first-generation Fiat Ulysse is a front-wheel-drive minivan designed and produced by the French-Italian joint venture Sevel Nord in Valenciennes, France. As a member of the original Eurovan family, the Ulysse was positioned as the most affordable model in the lineup. This article provides detailed fuse box diagrams for the first-generation Fiat Ulysse (Platform U60; chassis code 220), covering model years 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, and 2002.
Below, you will find the locations and photographs of the electrical distribution boxes. Fuses associated with the “Cigarette lighter” and “Fuel pump” are highlighted in bold.
Engine Compartment
The fuse box is located adjacent to the battery. The layout varies depending on the vehicle’s model year.
Type 1
Models manufactured from 07/2000 onwards
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| 1 | Spare | - |
| 2 | Fuel module (fuel pump) | 20 |
| 3 | Left low beam headlamp | 10 |
| 4 | Right low beam headlamp | 10 |
| 5 | Telephone | 10 |
| 6 | Engine Control Module (ECM) | 10 |
| Immobilizer | ||
| 7 | Left fog lamp | 10 |
| 8 | Right fog lamp | 10 |
| 9 | Engine cooling fan (low speed) | 25 |
| 10 | Headlamp washers | 30 |
| Fog lamps | ||
| 11 | Spare | - |
| 12 | Intermittent headlamp washer / windshield washer | 15 |
| 13 | Headlamp washers | 5 |
| 14 | Spare | - |
| 15 | HVAC blower motor | 40 |
| 16 | Engine cooling fan | 30 |
| R1 | Fog lamps | |
| R2 | Shunt | |
| R3 | Ignition cut-off relay | |
| R4 | Engine cooling fan | |
| R5 | Not used | |
| R6 | Headlamp washers | |
| R7 | A/C system | |
| R8 | A/C compressor cut-off relay (Bitron) | |
| R9 | Engine cooling fan | |
| R10 | Engine cooling fan | |
Type 2
Models manufactured up to 2000
General view of the engine compartment fuse box.
| Diagram | ||
|---|---|---|
Schematic diagram. |
||
| No. | Description | A |
| F1 | Trailer tow connector | 20 |
| F2 | Fuel module (fuel pump) | 20 |
| F3 | Spare (lighting circuits) | - |
| F4 | Spare (lighting circuits) | - |
| F5 | Telephone | 10 |
| F6 | Engine Control Module (ECM) | 10 |
| F7 | Spare (lighting circuits) | - |
| F8 | Spare (lighting circuits) | - |
| F9 | Engine cooling fan motor (low speed) | 30 |
| F10 | Headlamp washers, fog lamps | 30 |
| F11 | Spare | |
| F12 | Headlamp washer timer relay | 5 |
| F13 | Oxygen (O2) sensor | 15 |
| F14 | ABS hydraulic control unit (modulator) | 30 |
| F15 | HVAC blower motor | 40 |
| F16 | Engine cooling fan motor (high speed) | 40 |
| 1 | Ignition | |
| 2 | Engine cooling fan motor relay 3 | |
| 3 | Engine cooling fan motor relay 2 | |
| 4 | Engine cooling fan motor relay 1 | |
| 5 | - | |
| 6 | Headlamp washer delay relay | |
| 7 | A/C compressor clutch relay 1 | |
| 8 | Fog lamp relay | |
| 9 | A/C compressor clutch relay 2 | |
| 10 | - | |
Passenger Compartment
Located on the driver's side, behind the lower dashboard trim panel.
Type 1
Models manufactured from 07/2000 onwards.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| 1 | Audio system / Radio | 10 |
| 2 | Instrument cluster / Vehicle speed sensor (VSS) | 5 |
| 3 | Cruise control / Stop lamps | 15 |
| 4 | Right tail lamp / Left parking lamps | 5 |
| 5 | A/C system / Engine cooling fan | 10 |
| 6 | Heated exterior mirrors / Heated seats | 10 |
| 7 | Engine cooling fan / Alarm system / Warning chime | 20 |
| 8 | Supply for fuses 15 and 25 | 30 |
| 9 | Left tail lamp / License plate lamp / Right tail lamp | 5 |
| 10 | Not used | 30 |
| 11 | Rear power windows | 30 |
| 12 | Reversing lamps / ABS / OBD diagnostic connector | 10 |
| 13 | Driver's power seat | 30 |
| 14 | Manual and automatic HVAC / Horn / Alarm system / Charging system | 5 |
| 15 | Immobilizer / Alarm system | 30 |
| 16 | Cigarette lighter | 20 |
| 17 | Engine cooling fan | 15 |
| 18 | Rear fog lamps | 10 |
| 19 | Headlamps | 10 |
| 20 | HVAC system | 30 |
| 21 | Heated seats | 20 |
| 22 | Rear window wiper motor | 20 |
| 23 | - | - |
| 24 | Windshield wiper motor | 30 |
| 25 | Clock / Audio system / HVAC system | 10 |
| 26 | Turn signal indicators / Hazard warning lamps | 15 |
| 27 | Heated rear window (defogger) | 30 |
| 28 | Charging system indicator / Power mirrors / Intermittent windshield wipers | 15 |
| 29 | Sunroof / Windshield washer and wiper system | 30 |
| 30 | Clock / Turn signal indicators / Interior dome lamps | 15 |
Type 2
Models manufactured up to 2000.
General view of the interior passenger compartment fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| F1 | Audio system / Radio | 10 |
| F2 | Interior lighting, instrument cluster, fuel gauge, multifunction display, trip computer, vehicle speed sensor (VSS), cooling fan temperature switch, engine coolant level sensor, fuel/water separator sensor | 5 |
| F3 | Spare | 15 |
| F4 | Left parking lamps, right tail lamp, trailer tow connector, cargo compartment lamp | 5 |
| F5 | HVAC system | 10 |
| F6 | Anti-theft alarm system | 10 |
| F7 | Horns, trailer tow connector | 20 |
| F8 | Shunt for fuses F15 and F25 | |
| F9 | Right parking lamps, left tail lamp, license plate lamp, parking lamp indicator | 5 |
| F10 | Spare | 30 |
| F11 | Rear power windows | 30 |
| F12 | Reversing lamps, alarm system siren, alarm control module | 10 |
| F13 | Driver's power seat adjustment | 30 |
| F14 | Passenger power seat adjustment | 30 |
| F15 | Central locking control module, interior lamps, courtesy lamp delay relay | 30 |
| F16 | Front cigarette lighter, rear 12V power outlet | 20 |
| F17 | Engine cooling fan relay, cooling fan temperature switch, A/C compressor clutch relay | 15 |
| F18 | Rear fog lamps | 10 |
| F19 | Instrument cluster and switch illumination | 5 |
| F20 | HVAC blower motor, engine coolant temperature gauge, coolant level indicator lamp, engine oil pressure warning lamp | 30 |
| F21 | Heated seats | 20 |
| F22 | Rear window wiper motor | 20 |
| F23 | Heated seats, heated rear window (defogger), heated exterior mirrors | 15 |
| F24 | Windshield wiper motor, windshield washer pump | 30 |
| F25 | Audio system memory, clock, trip computer, central locking control module | 5 |
| F26 | Hazard warning lamps | 30 |
| F27 | Heated rear window (defogger) and exterior power mirrors | 30 |
| F28 | Stop lamps, central locking control module, exterior power mirror adjustment, power windows, power window control module, alternator indicator lamp, emergency protection module, courtesy lamp delay relay | 15 |
| F29 | Sunroof, windshield washer pump | 30 |
| F30 | CD player, telephone, glove box illumination, parking lamp warning chime, turn signal indicators, interior lighting, central locking control module, sunroof, clock | 15 |
| 1 | Courtesy lamp delay relay | |
| 2 | Power window relay 1 | |
| 3 | Heated rear window (defogger) relay | |
| 4 | HVAC blower motor relay | |
| 5 | Windshield wiper motor relay | |
| 6 | Not used | |
| 7 | Anti-theft alarm relay | |
| 8 | Shock sensor relay | |
| 9 | Power window relay 2 | |
| 10 | Heated seat relay | |
