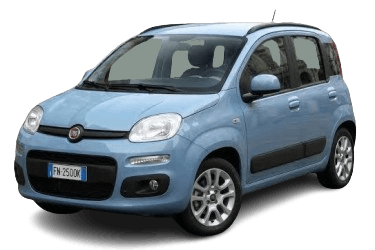

The Panda is a city car manufactured by the Italian automaker Fiat, a subsidiary of the Stellantis group. The third generation of the vehicle debuted in the autumn of 2011 at the Frankfurt Motor Show. This guide provides a comprehensive overview of the fuse box diagrams for the Fiat Panda (3rd Gen; Fiat Mini platform; chassis code 319), covering the 2011 through 2020 model years.
Below, you will find the locations and photographs of the power distribution boxes. The fuses responsible for the “Cigarette Lighter” and “Fuel Pump” are highlighted in bold for quick reference.
Engine Compartment
The main power distribution box is located on the right side of the engine compartment, behind a protective cover. An additional fuse panel containing high-current fusible links is mounted directly on the positive battery terminal.
Main Fuse Box
General overview.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| 1 | Electric power sunroof | 20 |
| 2 | Braking system | 20 |
| 3 | Ignition switch | 20 |
| 4 | HVAC blower motor | 40 |
| 5 | ABS pump motor | 40 |
| 6 | Horn | 15 |
| 7 | A/C compressor clutch | 7.5 |
| 8 | Two-speed radiator cooling fan / Unused | 40 |
| 9 | Electric Power Steering (EPS) | 70 |
| 10 | Two-speed or single-speed radiator cooling fan | 20 / 30 |
| 11 | Body Control Module (BCM) | 60 |
| 12 | Diesel heated fuel filter / Unused | 50 |
| 13 | Heated windshield | 70 |
| 14 | Automated manual transmission pump / Glow plug control module | 50 / 30 |
| 15 | Fuel delivery module (Fuel pump) | 15 |
| 16 | 12V power outlet / Cigarette lighter | 15 |
| 17 | High beam headlights | 15 |
| 18 | Fog lights | 15 |
| 19 | Intelligent Battery Sensor (IBS) | 5 |
| 20 | Heated seats | 15 |
| 21 | Engine Control Module (ECM) / Unused | 7.5 |
| 22 | HVAC blower motor | 5 |
| 23 | Transmission Control Module (TCM) / Electronic differential / CNG injectors | 7.5/10 |
| 24 | LPG/CNG system relay | 7.5 |
| 25 | Engine Control Module (ECM) / Fuel delivery module / CNG injectors | 10 |
| 26 | Engine Control Module (ECM) / LPG control module | 15 |
| 27 | Engine Control Module (ECM) | 10 |
| 28 | Heated exterior mirrors | 7.5 |
| 29 | Braking system / Electric Power Steering (EPS) | 7.5 |
| 30 | Engine Control Module (ECM) / Transmission Control Module (TCM) / CNG injectors | 7.5 |
| 31 | Reverse light switch / Spare | 5 |
| 32 | Heated rear window (Defroster) | 30 |
| R1 | Radiator cooling fan high-speed relay | |
| R2 | Engine Control Module (ECM) relay | |
| R3 | Heated rear window relay | |
| R5 | HVAC blower motor relay | |
| R6 | Radiator cooling fan single-speed relay | |
| R7 | Diesel fuel filter heater relay | |
| R8 | Fog light relay | |
| R9 | Horn relay | |
| R10 | Fuel pump relay | |
| R11 | A/C blower motor relay | |
| R12 | A/C compressor clutch relay | |
| R13 | High beam headlight relay | |
| R14 | 12V power outlet / Cigarette lighter relay | |
| R15 | CNG relay / Start-Stop system relay | |
| R16 | LPG supply valve / Start-Stop system / CNG relay | |
High-Current Fusible Links
Mounted on the positive battery terminal.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| SA1 | Intelligent Battery Sensor (IBS) | 30 |
| SA2 | PTC cabin heater 1 | 30 |
| SA3 | PTC cabin heater 2 | 50 |
Passenger Compartment
Located on the driver's side, in the lower section of the dashboard.
General overview of the Fiat Panda (319) interior fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| F12 | Unused | - |
| F13 | Headlight leveling system | 5 |
| F31 | 12V power outlet | 5 |
| F32 | Unused | - |
| F36 | OBD-II diagnostic port / Voltage regulator / General power supply | 10 |
| F37 | Brake light switch / Instrument cluster | 7.5 |
| F38 | Central locking system | 20 |
| F43 | Front and rear windshield washer pumps | 20 |
| F47 | Driver's side power window | 20 |
| F48 | Passenger's side power window | 20 |
| F49 | Parking assist / ABS Control Module / Heated seats / Transmission solenoid / Multi-function display / Lighting control | 7.5 |
| F50 | Supplemental Restraint System (Airbags) | 7.5 |
| F51 | Infotainment system / Climate control / Brake pedal switch / Clutch pedal switch / Power sunroof / Reverse lights | 5 |
| F53 | Instrument cluster power supply | 7.5 |
Luggage Compartment
An additional fuse and relay panel is located on the left side of the luggage compartment.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| 1 | Braking system | 5 |
| 2 | Spare | - |
| 3 | Spare | - |
| 4 | Spare | - |
| 5 | Spare | - |
| 6 | Spare | - |
| 7 | Spare | - |
| 8 | Spare | - |
| R1 | Passenger heated seat relay | |
| R2 | Driver heated seat relay | |
| R3 | Spare relay | |
| R4 | Braking system relay | |
