Fuses Fiat Tipo (356/357; 2015 - 2022)

The Fiat Tipo (also known as Egea in Turkey) is a small family car. It was presented in May 2015 at the Istanbul Motor Show. In this article we will understand in detail fuse box diagrams Fiat Tipo (factory index 356/357) 2nd generation 2015, 2016, 2017, 2018, 2018, 2019, 2020, 2021, 2022 years of manufacture.

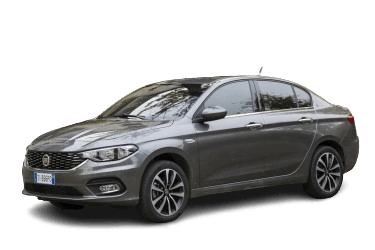

general view of the car
Here you will find the locations and photos of the mounting blocks. Also, we will separately mark the fuses responsible for the cigarette lighter.

In the cabin

Location of the fuse box in the passenger compartment of a right-hand drive vehicle
Right hand drive models: is located on the passenger side behind the glove box. To access, fold out the glove compartment by releasing the catches (1).

Location of the fuse box in the passenger compartment of a car with a left-hand drive
Left hand drive models: is located on the driver's side at the bottom of the dashboard. To access, remove the snap-on cover by pulling it toward you.

General view of the Fiat Tipo interior fuse box.

No. Description A
F47 Front power window (driver's side) 25
F48 Front power window (passenger side) 25
F36 Uconnect™ system, climate control system, EOBD systems, USB / AUX ports, steering wheel controls, fiat tipo cigarette lighter fuse 15
F38 Dead Lock system (if fitted) / central locking system / trunk door 20
F43 Windshield washer pump 20
F33 Rear left power window 25
F34 Rear right power window 25
Additional board (responsible for door locking)
1 driver's door 7.5
2 front passenger door 7.5
3 Left rear door 7.5
4 Right rear door  7.5

In the engine compartment

The location of the fuse box in the engine compartment of the car.
It is located near the battery. To access the fuses, remove the protective cover by releasing the catches.

General view.

No. Purpose A
F10 Horn (beep) 15
F84 Adjusting the position of the driver's seat 10
F88 Rearview mirror heating 7.5
F20 Rear window heating 30

In the trunk

Installation location of the fuse box in the luggage compartment of the car
It is located behind the protective cover, on the left side.

No. Description A
F97 Rear12V power outlet 15
F99 Driver's seat heating 10
F92 Front passenger seat heating 10
F90 Adjusting the driver's seat 10
