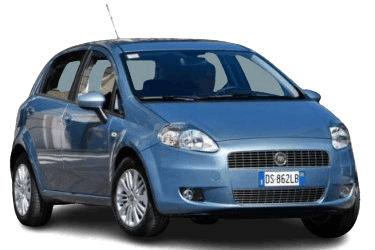

The Fiat Grande Punto is the third generation of the subcompact passenger car produced by Italian automaker Fiat. In 2009, an updated model named Punto Evo debuted at the Frankfurt Motor Show. Following another update in 2012, the model name reverted simply to Punto. This article provides detailed fuse box diagrams and relay layouts for the Fiat Punto, Grande Punto, and Punto Evo (3rd Gen, SCCS platform; chassis code 199) for model years 2005 through 2018.
Here you will find the locations and diagrams for the power distribution boxes. Fuses for the “Cigarette lighter” and “Fuel pump” are highlighted in bold.
In the Luggage Compartment
It is located on the left side of the luggage compartment. Open the access panel to reach the fuses.
| Assignment of fuses in the luggage compartment (Type 1) | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| F50 | Sunroof | 20 |
| F52 | Anti-theft alarm system | 7.5 |
| F55 | Not used | — |
| F56 | Not used | — |
| F57 | Power seat adjustment | 10 |
| F58 | Not used | — |
| F62 | Not used | — |
| F64 | Rear right power window | 20 |
| F67 | Not used | — |
| F68 | Driver’s seat heater | 10 |
| F75 | Not used | — |
| F80 | Rear auxiliary power socket (12V) | 15 |
| F81 | Rear left power window | 20 |
| F82 | Tire Pressure Monitoring System (TPMS) | 5 |
| F83 | Front passenger seat heater | 10 |
| F84 | Not used | — |
| F88 | Not used | — |
| 1 | Auxiliary ignition circuit relay | |
| 2 | — | |
| 3 | — | |
| 4 | — | |
| Luggage compartment fuse box diagram (Type 2) | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| F8 | Not used | — |
| F50 | Sunroof | 20 |
| F52 | Not used | — |
| F55 | Not used | — |
| F56 | Not used | — |
| F57 | Driver’s seat lumbar adjustment pump motor | 10 |
| F62 | Tire Pressure Monitoring System (TPMS) | 10 |
| F64 | Rear right power window | 20 |
| F67 | Subwoofer audio amplifier | 20 |
| F68 | Driver’s seat heater | 10 |
| F75 | Not used | — |
| F80 | Luggage compartment auxiliary power socket (12V) | 15/20 |
| F81 | Rear left power window | 20 |
| F82 | Not used | — |
| F83 | Front passenger seat heater | 10 |
| F84 | Not used | — |
| F88 | Not used | — |
| 1 | Auxiliary load shedding relay 2 (crank cutout) | |
| 2 | Driver’s seat heater relay | |
| 3 | Front passenger seat heater relay | |
| 4 | — | |
In the Passenger Compartment
Located behind the access panel on the driver’s side of the dashboard.
General view of the passenger compartment fuse box.
| Passenger compartment fuse box diagram (Type 1) | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| F12 | Right low-beam headlight | 7.5/15 |
| F13 | Left low-beam headlight, headlight leveling control | 7.5/15 |
| F31 | Engine compartment fuse/relay box supply | 5 |
| F32 | Interior lighting | 5 |
| F36 | EOBD diagnostic port, anti-theft alarm system, audio system | 10 |
| F37 | Instrument cluster power supply, brake pedal switch, center high-mounted stop lamp (CHMSL) | 5 |
| F38 | Central locking system | 15 |
| F43 | Windshield and rear window washer pump | 20 |
| F47 | Power windows | 20 |
| F48 | Power windows | 20 |
| F49 | Instrument panel backlighting, power door mirrors, sunroof control unit, MyPort infotainment connector | 5 |
| F50 | Airbag / SRS Electronic Control Unit (ECU) | 7.5 |
| F51 | Brake pedal switch (NC contact), clutch pedal switch, climate control module, Blue&Me control unit, audio system, alternator voltage regulator control, rear bumper reverse lights, fuel filter water sensor, glow plug control unit, mass air flow (MAF) sensor, brake booster vacuum sensor, engine compartment fuse box relay coils | 5/10 |
| F53 | Instrument cluster | 5 |
| Passenger compartment fuse box diagram (Type 2) | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| F21 | Electric Power Steering (EPS) control unit | 7.5 |
| F22 | Instrument cluster, brake lights, clutch pedal position sensor | 7.5 |
| F26 | ABS/ESP electronic control unit | 7.5 |
| F42 | Windshield washer pump, rear window washer pump | 20 |
| F44 | Not used | — |
| F45 | Instrument cluster, EOBD diagnostic connector | 10 |
| F51 | Hands-free / cellular phone control module | 15 |
| F53 | Interior lighting | 10 |
| F58 | Airbag / SRS system | 10 |
| F61 | Instrument cluster, instrument panel backlighting, Tire Pressure Monitoring System (TPMS), park assist | 7.5 |
| F73 | Tailgate / trunk release actuator | 15 |
| F77 | Central locking system | 20 |
| F85 | Ignition switch | — |
| F86 | Not used | — |
In the Engine Compartment
The engine compartment fuse box is located next to the battery under a protective cover. A power distribution panel containing fusible links is mounted directly on the battery terminal.
General view.
| Assignment of fuses in the engine compartment (Type 1) | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| F1 | Not used | 70 |
| F2 | Luggage compartment fuse/relay box | 40 |
| F3 | Main ignition circuits | 20 |
| F4 | ABS/ESP system | 40 |
| F5 | Electric Power Steering (EPS) | 70 |
| F6 | Radiator cooling fan motor | 20 30 40 |
| F7 | 30 40 50 |
|
| F8 | Not used | 15/30 |
| F9 | Headlight washer pump | 20 |
| F10 | Horn | 15 |
| F11 | Engine Management System (EMS) | 10 |
| F14 | High-beam headlights | 15 |
| F15 | Auxiliary PTC heater | 30 |
| F16 | Not used | 5 |
| F17 | Engine Control Module (ECM/ECU) | 10 |
| F18 | Engine Control Module (ECM/ECU) | |
| F19 | Air conditioning compressor clutch | |
| F20 | Heated rear window (defogger) | 30 |
| F21 | Fuel pump fuse | 15 |
| F22 | Engine control components | 10 15 20 |
| F23 | ABS/ESP control unit | 20 |
| F24 | Not used | 5 |
| F30 | Front fog lights | 15 |
| F81 | Glow plug heating system | 60 |
| F82 | Auxiliary PTC heater | 50 |
| F83 | Climate control / HVAC blower motor | 40 |
| F84 | Not used | 7.5/10 |
| F85 | Not used | |
| F86 | Cigarette lighter fuse (Fiat Punto / Grande / Evo) | 15 |
| Auxiliary power socket (12V) | 15 | |
| F87 | Not used | 5/7.5 |
| F88 | Heated door mirrors | 7.5 |
| 1 | Engine management main relay | |
| 2 | Heated rear window relay | |
| 3 | Horn relay | |
| 7 | Headlight washer pump relay | |
| 9 | Fuel pump relay | |
| 11 | High-beam headlights relay | |
| 12 | Air conditioning compressor clutch relay | |
| 13 | Front fog lights relay | |
| Assignment of fuses in the engine compartment (Type 2) | ||
|---|---|---|
Reference photo. |
||
Diagram layout. |
||
| No. | Description | Rating (A) |
| F1 | Body Control Module (BCM) / Distribution box | 60 |
| F2 | HVAC blower motor | 40 |
| F3 | ABS control unit | 40 |
| F4 | Front fog lights | 15 |
| F5 | Headlight washer system | 30 |
| F6 | ABS/ESP system | 30 |
| F7 | Air conditioning compressor clutch | |
| F8 | Heated rear window | 30 |
| F9 | Front right power window motor | 20 |
| F10 | Front left power window motor | 20 |
| F11 | Fuel pump fuse (Fiat Punto 3: Grande, Evo) | 15 |
| F12 | Not used | — |
| F13 | Starter motor solenoid | 30 |
| F14 | Transmission Control Module (Dualogic automated manual gearbox) | 7.5 |
| F15 | Engine Control Module (ECM) | 7.5 |
| F16 | Air conditioning system, power door mirrors, power window switches | 7.5 |
| F17 | Transmission Control Module (Dualogic automated manual gearbox) | 30 |
| F18 | Radiator cooling fan motor | 30 40 60 |
| F19 | Variable intake manifold actuator | 7.5 |
| F20 | Engine management system | 15 |
| F21 | Reverse lights, mass air flow (MAF) sensor, fuel filter water sensor, glow plug ECU | 10 |
| F22 | Not used | — |
| F23 | Radiator cooling fan motor | 20 30 40 |
| F24 | Cigarette lighter fuse (Fiat Punto 3) | 20 |
| F25 | Engine Control Module (ECM) | 7.5 |
| F26 | 10 | |
| F27 | Engine management system | 15 |
| F28 | Not used | — |
| F29 | Transmission Control Module (Dualogic automated manual gearbox) | 15 |
| F30 | Horn | 15 |
| F31 | Left low-beam headlight | 10 |
| F32 | Right low-beam headlight | 10 |
| F33 | Left high-beam headlight | 10 |
| F34 | Right high-beam headlight | 10 |
| F35 | Air conditioning compressor clutch solenoid | 7.5 |
| F36 | Heated door mirrors | 10 |
| F37 | Not used | — |
| 1 | Heated rear window and door mirror heater relay | |
| 2 | Auxiliary load shedding relay 1 (crank cutout) | |
| 3 | Radiator cooling fan relay 2 (medium speed) | |
| 4 | Headlight washer pump relay | |
| 5 | Front fog lights relay | |
| 6 | Fuel pump relay (fuel pump module) | |
| 7 | Radiator cooling fan relay (high speed) | |
| 8 | Radiator cooling fan relay (low speed) | |
| 9 | Front power windows relay | |
| 10 | Climate control system relay | |
| 11 | Starter motor relay | |
| 12 | Main ignition circuits relay | |
| 13 | Engine management system relay | |
| 14 | Horn relay | |
| 15 | Low-beam headlights relay | |
| 16 | High-beam headlights relay | |
| 17 | Air conditioning compressor clutch relay | |
| Battery-mounted fusible links | ||
|---|---|---|
|
||
| F3 | Luggage compartment fuse/relay box | 60 |
| F6 | Electric Power Steering (EPS) motor | 70 |
| F7 | Dualogic automated manual transmission | 30 |
