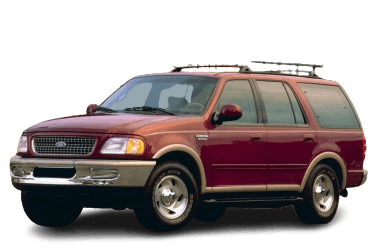

The first-generation Ford Expedition (UN93) was built on the Ford U platform, which it shared with the Lincoln Navigator. It was intended to replace the outdated two-door Ford Bronco. This article provides detailed fuse box diagrams for the first-generation Ford Expedition (F-150 derived body-on-frame platform; chassis code UN93), covering the 1996, 1997, 1998, 1999, 2000, 2001, and 2002 model years.
Below are the locations and photographs of the power distribution boxes. The fuses protecting the “Cigarette Lighter” and “Fuel Pump” circuits are highlighted in bold.
Engine Compartment
Up to three fuse boxes are located in the engine compartment, depending on the vehicle's trim and configuration. The primary fuse block is available in two different versions.
Fuse Box #1 (Power Distribution Box)
General layout of the primary fuse block (Type 1).
| Fuse Box #1 Diagram (Type 1) | ||
|---|---|---|
|
||
| No. | Circuit Description | Amperage (A) |
| 1 | Auxiliary Power Point | 20 |
| 2 | Powertrain / Transmission Control Module | 30 |
| 3 | Headlamps / Autolamps | 30 |
| 4 | Console Power Point | 20 |
| 5 | Trailer Running Lamps | 20 |
| 6 | Parking Lamps / Exterior Illumination (Feeds Cabin Fuse 18) | 15 |
| 7 | Horn | 20 |
| 8 | Power Door Locks | 30 |
| 9 | Daytime Running Lamps (DRL), Fog Lamps | 15 |
| 10 | Fuel Pump | 20 |
| 11 | Alternator Field | 20 |
| 12 | Rear Wiper Motor | 10 |
| 13 | A/C Compressor Clutch | 15 |
| 14 | Spare / Unused | - |
| 15 | Running Board Lamps | 10 |
| 16 | Spare / Unused | - |
| 17 | Power Quarter Windows | 10 |
| 18 | Powertrain Control Module (PCM), Fuel Injectors, Fuel Pump, Mass Air Flow (MAF) Sensor | 15 |
| 19 | Trailer Tow: Stop / Right Turn Signal | 10 |
| 20 | Trailer Tow: Stop / Left Turn Signal | 10 |
| 21 | Spare / Unused | - |
| 22 | Spare / Unused | - |
| 23 | Heated Exhaust Gas Oxygen (HEGO) Sensor, Catalyst Monitor Sensor (CMS), Automatic Transmission | 15 |
| 24 | Spare / Unused | - |
| 101 | Trailer Battery Charge | 30 |
| 102 | Four-Wheel Anti-Lock Brake System (4WABS) Module | 50 |
| 103 | Central Junction Box (CJB) Battery Power Feed | 50 |
| 104 | 4x4 Transfer Case Shift Motor and Clutch | 30 |
| 105 | Front HVAC Blower Motor | 40 |
| 106 | Spare / Unused | - |
| 107 | Spare / Unused | - |
| 108 | Electronic Trailer Brake Controller | 50 |
| 109 | Air Suspension Compressor | 50 |
| 110 | Heated Seats | 30 |
| 111 | Ignition Switch Battery Feed (Run / Start) | 40 |
| 112 | Power Driver Seat, Power Adjustable Pedals, Memory Module | 30 |
| 113 | Ignition Switch Battery Feed (Accessory / Run) | 40 |
| 114 | Auxiliary HVAC Blower Motor | 30 |
| 115 | Spare / Unused | - |
| 116 | Heated Rear Defroster and Mirrors | 40 |
| 117 | Spare / Unused | - |
| 118 | Spare / Unused | - |
| 201 | Trailer Running Lamp Relay | - |
| 202 | Front Wiper Motor Relay | - |
| 203 | Reverse Lamp Relay | - |
| 204 | A/C Clutch Relay | - |
| 205 | Rear Wiper Relay (Down) | - |
| 206 | Fog Lamp Relay | - |
| 207 | Front Washer Pump Relay | - |
| 208 | Rear Washer Pump Relay | - |
| 209 | Rear Wiper Relay (Up) | - |
| 301 | Fuel Pump Relay | - |
| 302 | Trailer Battery Charge Relay | - |
| 303 | Wiper High/Low Speed Relay | - |
| 304 | Powertrain Control Module (PCM) Relay | - |
| 401 | Spare / Unused | - |
| 501 | Powertrain Control Module (PCM) Diode | - |
| 502 | A/C Compressor Diode | - |
| 503 | Spare / Unused | - |
| 601 | Accessory Delay (Power Windows, Power Quarter Windows, Moonroof) | 30 |
| 602 | Spare / Unused | - |
| Fuse Box #1 Diagram (Type 2) | ||
|---|---|---|
|
||
| No. | Circuit Description | Amperage (A) |
| 1 | Trailer Running Lamp Relay, Trailer Tow Backup Lamp Relay | 20 |
| 2 | Supplemental Restraint System (SRS) / Airbag Diagnostic Monitor | 10 |
| 3 | All Door Lock / Unlock Relay | 30 |
| 4 | Air Suspension Compressor Switch | 15 |
| 5 | Horn Relay | 20 |
| 6 | Radio, Premium Audio Amplifier, CD Changer, Rear Integrated Control Panel (RICP), Powered Subwoofer | 30 |
| 7 | Headlamp Switch, Parking Lamp Relay | 15 |
| 8 | Headlamp Switch, Headlamp Relay, Multi-Function Switch | 30 |
| 9 | Daytime Running Lamps (DRL) Module, Fog Lamp Relay | 15 |
| 10 | Instrument Panel Auxiliary Power Point | 25 |
| 11 | Console Auxiliary Power Point | 25 |
| 12 | Rear Wiper Motor (Up/Down) Relays | 10 |
| 13 | Auxiliary A/C Relay | 30 |
| 14 | Four-Wheel Anti-Lock Brake System (4WABS) Module | 60 |
| 15 | Air Suspension Solid State Compressor Relay | 50 |
| 16 | Trailer Battery Charge Relay, Engine Fuse Block (Fuse 2) | 40 |
| 17 | Electronic Shift-On-The-Fly (ESOF) Relay, Transfer Case Shift Relay | 30 |
| 18 | Power Seats | 30 |
| 19 | Fuel Pump Relay | 20 |
| 20 | Ignition Switch (B4 and B5) | 50 |
| 21 | Ignition Switch (B1 and B3) | 50 |
| 22 | Battery Power to Central Junction Box (CJB) Fuses / Relays | |
| 23 | Instrument Panel (I/P) Blower Motor Relay | 40 |
| 24 | PCM Power Relay Feed, Engine Fuse Block (#1) | 30 |
| 25 | Central Junction Box (CJB) Panel, Accessory Delay Relay | 30 |
| 26 | Spare / Unused | |
| 27 | Central Junction Box (CJB) Panel, Heated Defroster Relay | |
| 28 | Electronic Trailer Brake Controller | 20 |
| 29 | Power Quarter Window Relay, Hybrid Cooling Fan Relay | 30 |
Fuse Box #2
Diagram.
| No. | Circuit Description | Amperage (A) |
| 1 | Powertrain Control Module (PCM) | 5 |
| 2 | Stop / Turn Lamps | 20 |
| 3 | Rear Integrated Control Panel (RICP), CD Changer, Radio | 5 |
Fuse Box #3
Diagram.
| No. | Circuit Description | Amperage (A) |
| 1 | Mega Fuse: Main Power Supply | 175 |
| 2 | Mega Fuse: Alternator Output | 175 |
| 3 | Alternator Field Mini-Fuse | 20 |
| 4 | Running Board Lamps | 10 |
| 5 |
|
20 |
Passenger Compartment Fuse Panel
The Central Junction Box (CJB) is located on the driver's side, underneath the instrument panel, behind a protective cover.
Reference image for the passenger compartment fuse panel.
| Panel Diagram | ||
|---|---|---|
|
||
| No. | Circuit Description (Type 1) | Amperage (A) |
| 1 | Audio System | 25 |
| 2 | Overhead Trip Computer, Electronic Automatic Temperature Control (EATC), Powertrain Control Module (PCM), Instrument Cluster | 5 |
| 3 | Cigarette Lighter, OBD-II Data Link Connector | 20 |
| 4 | Remote Keyless Entry (RKE) Module, Power Mirrors, Memory Module (Seats and Pedals) | 7.5 |
| 5 | Speed Control Module, Reverse Lamps, Electronic Variable Orifice (EVO) Module, Climate Mode Switch (Front Blower Relay), Daytime Running Lamps (DRL) Relay, Backup Sensing System, Autolock, Electrochromic Mirror | 15 |
| 6 | Overhead Trip Computer, Compass, Brake Shift Interlock, Air Suspension Module, Generic Electronic Module (GEM), EVO Steering Sensor, Heated Mirrors, Heated Rear Defroster, Backup Sensing System | 5 |
| 7 | Auxiliary A/C Blower Relay Coil | 5 |
| 8 | Radio, Remote Keyless Entry (RKE) Module, Generic Electronic Module (GEM) | 5 |
| 9 | Spare / Unused | - |
| 10 | Spare / Unused | - |
| 11 | Front Washer Pump Relay, Front Wiper (Run / Park) Relay, Wiper Hi/Lo Relay, Wiper Motor, Rear Washer Pump Relay | 30 |
| 12 | Air Suspension Switch | 15 |
| 13 | Brake Pedal Position (BPP) Switch (Lamps), Turn Signal / Hazard Flasher, Speed Control Module | 20 |
| 14 | Rear Wiper Motor, Running Board Lamps, Battery Saver Relay, Interior Lamp Relay, Accessory Delay Relay (Power Windows, Moonroof, Quarter Windows) | 15 |
| 15 | Brake Pedal Position (BPP) Switch (Speed Control, Brake Shift Interlock, 4WABS, PCM Inputs, Air Suspension Module, Autolock), Generic Electronic Module (GEM) | 5 |
| 16 | Headlamps (High Beams), Instrument Cluster (High Beam Indicator) | 20 |
| 17 | Heated Mirrors, Heated Defroster Switch Indicator | 10 |
| 18 | Instrument Illumination (Dimmer Switch Feed) | 5 |
| 19 | Spare / Unused | - |
| 20 | Audio System, Air Suspension Module, Generic Electronic Module (GEM), Memory Module | 5 |
| 21 | Starter Relay Coil, Transmission Digital Transmission Range (DTR) Sensor | 15 |
| 22 | Supplemental Restraint System (SRS) Module, Climate Switch, EATC Blower Relay | 10 |
| 23 | Auxiliary A/C, Heated Seats, Trailer Battery Charge Relay, Turn Signal / Hazard Flasher, 4x4 Clutch Relay, Overhead Console, Electrochromic Mirror, Four-Wheel Anti-Lock Brake System (4WABS) Module | 10 |
| 24 | Spare / Unused | - |
| 25 | Spare / Unused | - |
| 26 | Right Low Beam Headlamp | 10 |
| 27 | Fog Lamp Relay, Fog Lamp Indicator (Instrument Cluster) | 5 |
| 28 | Left Low Beam Headlamp | 10 |
| 29 | Autolamp Module, Overdrive Control Module | 5 |
| 30 | Passive Anti-Theft System (PATS) Transceiver, Instrument Cluster, Ignition Coils, Powertrain Control Module (PCM) Relay | 30 |
| 31 | Rear Integrated Control Panel (RICP), CD Changer | 10 |
| R1 | Interior Lamp Relay | - |
| R2 | Battery Saver Relay | - |
| R3 | Heated Rear Defroster Relay | - |
| R4 | One-Touch Down Window Relay | - |
| R5 | Accessory Delay Relay | - |
| No. | Circuit Description (Type 2) | Amperage (A) |
| 1 | Stop / Turn Signal Lamps | 15 |
| 2 | Instrument Cluster, Overhead Trip Computer | 5 |
| 3 | Cigarette Lighter | 25 |
| 4 | Autolamp Module, Headlamp Relay, Remote Anti-Theft Personality (RAP) Module, Power Mirrors | 5 |
| 5 | A/C Clutch, Blower Relay, Reverse Lamps, Speed Control, DRL, Instrument Cluster, Blend Door Actuator, Electronic Variable Orifice (EVO) Steering Module | 15 |
| 6 | Generic Electronic Module (GEM), Brake Shift Interlock, Air Suspension Module, Heated Backlight (HBL) Relay, Steering Sensor, Trip Computer, Compass | 5 |
| 7 | Console Rear Blower, Auxiliary Blower Relay Coil | 5 |
| 8 | Generic Electronic Module (GEM), Radio, Remote Anti-Theft Personality (RAP) Module | 5 |
| 9 | Spare / Unused | - |
| 10 | Spare / Unused | - |
| 11 | Front Wiper Motor, Front Washer Pump | 30 |
| 12 | OBD-II Data Link Connector | 5 |
| 13 | Brake Pedal Position (BPP) Switch, Brake Pressure Switch | 15 |
| 14 | Interior Lamps, Accessory Delay Relay, Rear Wiper Relay | 15 |
| 15 | Generic Electronic Module (GEM), Passive Anti-Theft System (PATS) Module | 5 |
| 16 | High Beam Headlamps, High Beam Indicator (Instrument Cluster) | 20 |
| 17 | Heated Mirrors, Heated Mirror Switch | 10 |
| 18 | Instrument Cluster and Switch Illumination | 5 |
| 19 | Supplemental Restraint System (SRS) Diagnostic Monitor, Instrument Cluster | 10 |
| 20 | Generic Electronic Module (GEM), Air Suspension Module | 5 |
| 21 | Starter Relay Coil | 15 |
| 22 | Supplemental Restraint System (SRS) Diagnostic Monitor | 10 |
| 23 | Electronic Flasher, 4WD Vacuum Solenoids, Trailer Battery Charge Relay, Climate Console Door Actuator, Blend and Mode Auxiliary Door Actuators, Auxiliary Blower Switch Module | 10 |
| 24 | Instrument Panel (I/P) Blower Relay Coil | 10 |
| 25 | Four-Wheel Anti-Lock Brake System (4WABS) Module, 4WABS Warning Lamp Relay | 5 |
| 26 | Right Low Beam Headlamp, DRL Module | 10 |
| 27 | Fog Lamp Relay, Headlamp Switch | 5 |
| 28 | Left Low Beam Headlamp | 10 |
| 29 | Autolamp Module, Instrument Cluster, Transmission Control Switch and Indicator Lamp | 5 |
| 30 | Ignition Coils, PCM Relay, PATS Transceiver, Radio Interference Capacitors | 30 |
| 31 | Spare / Unused | - |
| R1 | Interior Lamp Relay | - |
| R2 | Battery Saver Relay | - |
| R3 | Heated Backlight (HBL) Relay | - |
| R4 | One-Touch Down Window Relay | - |
| R5 | Accessory Delay Relay | - |
