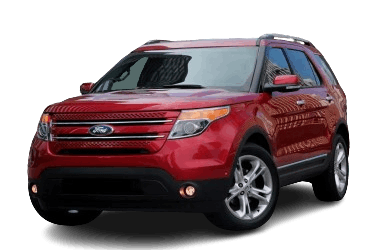

The Explorer is a midsize crossover SUV produced from 1990 to the present. This article provides fuse and relay box diagrams, circuit descriptions, and component locations for the 5th-generation Ford Explorer (D4 platform; model years 2011–2019, produced from 2010 through 2019). During this production run, the vehicle received two major facelifts.
The manufacturer reserves the right to modify technical specifications, equipment, and component layouts without notice. As a result, fuse panel configurations may vary. Always verify circuit assignments using your vehicle’s factory documentation. If you encounter any difficulties, consult an authorized Ford dealership.
Passenger Compartment
The passenger compartment fuse box is located under the instrument panel on the driver’s side, behind a protective cover.
A wiring diagram and fuse layout switch legend are printed on the panel cover.
Type 1
Vehicles manufactured through 2015.
General view.
| Diagram | |
|---|---|
|
|
| № | Circuit Protected / Component |
| 1 | 30A Driver front power window switch (one-touch up/down) |
| 2 | 15A Not used (spare) |
| 3 | 30A Front passenger power window switch (one-touch up/down) |
| 4 | 10A Demand lamps (overhead console, 2nd row, cargo area), glove box lamp, 2nd/3rd row seat-fold lamps, vanity mirror lamps |
| 5 | 20A Audio amplifier |
| 6 | 5A Spare |
| 7 | 7.5A Driver Seat Module (DSM) logic power |
| 8 | 10A Spare |
| 9 | 10A 4-inch display (SYNC), power liftgate module, electronic finish panel |
| 10 | 10A Run/accessory relay coil (wipers, rear window washer), rain sensor |
| 11 | 10A Instrument cluster, Head-Up Display (HUD) |
| 12 | 15A Interior courtesy lamps, puddle lamps, console bin LED backlighting |
| 13 | 15A Right turn signal/stop lamps, trailer tow right turn/stop |
| 14 | 15A Left turn signal/stop lamps, trailer tow left turn/stop |
| 15 | 15A Reverse lamps, stop lamps, High-Mount Stop Lamp (CHMSL) |
| 16 | 10A Right low-beam headlamp |
| 17 | 10A Left low-beam headlamp |
| 18 | 10A Keypad illumination, Brake Shift Interlock (BSI), Push-button start switch, PATS, Powertrain Control Module (PCM) run/start signal, Power 2nd-row seat release |
| 19 | 20A Memory seat module power supply |
| 20 | 20A Power door locks |
| 21 | 10A Intelligent Access (IA) module, SecuriCode keypad |
| 22 | 20A Horn relay |
| 23 | 15A Steering wheel control module, Intelligent Access (IA), headlamp switch |
| 24 | 15A Diagnostic Link Connector (OBD-II DLC), steering wheel control module |
| 25 | 15A Liftgate release motor |
| 26 | 5A Radio Frequency (RF) module |
| 27 | 20A Intelligent Access (IA) module |
| 28 | 15A Ignition switch, push-button start switch |
| 29 | 20A Audio unit, Global Positioning System (GPS) module |
| 30 | 15A Front park lamps |
| 31 | 5A Trailer Brake Controller (TBC) |
| 32 | 15A 110V AC power outlet switch, power folding mirrors, power mirrors, driver power window switch backlighting, lock switch illumination |
| 33 | 10A Occupant Classification System (OCS) module |
| 34 | 10A Blind Spot Information System (BLIS), rear view camera, cross-traffic alert system |
| 35 | 5A Head-Up Display (HUD), humidity sensor, Terrain Management System switch, Hill Descent Control switch, headlamp switch |
| 36 | 10A Heated steering wheel module |
| 37 | 10A Restraints Control Module (RCM) |
| 38 | 10A Auto-dimming interior mirror, power moonroof switch |
| 39 | 15A High-beam shutter actuators |
| 40 | 10A Rear park lamps, license plate lamps, trailer tow park lamps |
| 41 | 7.5A Overdrive cancel switch, Tow/Haul mode switch |
| 42 | 5A Spare |
| 43 | 10A Spare |
| 44 | 10A Spare |
| 45 | 5A Spare |
| 46 | 10A Climate control module |
| 47 | 15A Fog lamps, side mirror turn signal indicators |
| 48 | 30A Circuit Breaker: Power rear windows, front passenger window, driver window switch |
| 49 | Delayed accessory relay (Body Control Module) |
Type 2
Vehicles manufactured from 2015 onward.
General view.
| Diagram | |
|---|---|
|
|
| № | Circuit Protected / Component |
| 1 | 10A Demand lamps, battery saver system |
| 2 | 7.5A Power memory seat module switch |
| 3 | 20A Driver door unlock relay |
| 4 | 5A Trailer Brake Controller (TBC) |
| 5 | 20A Heated rear seats module |
| 6 | Spare |
| 7 | Spare |
| 8 | Spare |
| 9 | Spare |
| 10 | 5A SecuriCode keyless entry keypad, power liftgate module |
| 11 | 5A Rear climate control module |
| 12 | 7.5A Front climate control module |
| 13 | 7.5A Instrument cluster, Data Link Connector (DLC), Steering Column Control Module (SCCM) |
| 14 | Spare |
| 15 | 10A Data Link Connector (DLC) power, overhead display |
| 16 | Spare |
| 17 | 5A Electronic finish panel |
| 18 | 5A Push-button start switch, ignition switch, key interlock |
| 19 | 7.5A Transmission control switch (Tow/Haul function) |
| 20 | Spare |
| 21 | 5A Terrain Management System switch, overhead display, humidity sensor |
| 22 | 5A Occupant Classification System (OCS) sensor |
| 23 | 10A Delayed accessory logic, power windows, moonroof, power folding mirror relay, DC inverter, window/moonroof switch backlighting |
| 24 | 20A Central door locking relay |
| 25 | 30A Driver Door Module (DDM), front left power window motor |
| 26 | 30A Passenger Door Module (PDM), front right power window motor |
| 27 | 30A Power moonroof module |
| 28 | 20A Sony 10-speaker audio amplifier |
| 29 | 30A Sony 14-speaker audio amplifier |
| 30 | Spare |
| 31 | Spare |
| 32 | 10A SYNC module, GPS module, display screen, RF receiver |
| 33 | 20A Audio unit / Radio receiver |
| 34 | 30A Run/Start relay coil |
| 35 | 5A Restraints Control Module (RCM) |
| 36 | 15A Lane Keeping System module, Auto High Beam camera, electrochromic mirror, rear heated seat switches |
| 37 | 20A Heated steering wheel module |
| 38 | 30A Front left power window motor, rear power window motors |
Engine Compartment
The power distribution box is located in the engine compartment adjacent to the battery, under a protective cover.
Type 1
Vehicles manufactured through 2015.
Sample reference photo.
| Diagram | |
|---|---|
|
|
| № | Circuit Protected / Function |
| 1 | Spare |
| 2 | Spare |
| 3 | 30A Trailer Brake Controller (TBC) module |
| 4 | 30A Front wiper motor, windshield washer pump |
| 5 | 50A Anti-lock Brake System (ABS) pump motor |
| 6 | Spare |
| 7 | 30A Power liftgate module |
| 8 | 20A Power moonroof |
| 9 | 20A Auxiliary power point 2 (rear console) |
| 16 | Spare |
| 17 | 40A 110V AC power inverter module |
| 18 | 40A Front climate control blower motor |
| 19 | 30A Starter motor solenoid |
| 20 | 20A Auxiliary power point 1 / Cigar lighter |
| 21 | 20A Auxiliary power point 3 (cargo area) |
| 22 | 30A Power 3rd row seat module |
| 23 | 30A Power driver seat, memory module |
| 24 | 30A Trailer tow battery charge relay |
| 26 | 40A Rear window defroster, heated exterior mirrors |
| 27 | 20A Auxiliary power point (console) |
| 28 | 30A Climate controlled seats module |
| 29 | 40A Engine cooling fan 1 (high speed), cooling fans 1 & 2 (low speed primary) |
| 30 | 40A Engine cooling fan 2 (high speed) |
| 31 | 25A Engine cooling fans 1 & 2 (low speed secondary) |
| 39 | 40A Rear auxiliary blower motor |
| 40 | Spare |
| 41 | 30A Heated 2nd row seats module |
| 42 | 30A Power passenger seat |
| 43 | 40A ABS module valves |
| 45 | 5A Rain sensor |
| 46 | Spare |
| 47 | Spare |
| 48 | Spare |
| 49 | Spare |
| 50 | 15A Heated exterior mirrors |
| 51 | Spare |
| 56 | 15A Transmission Control Module (TCM) |
| 57 | 20A Left High-Intensity Discharge (HID) headlamp |
| 58 | 10A Alternator battery current sensor |
| 59 | 10A Brake On/Off (BOO) switch |
| 60 | 10A Trailer tow park lamps |
| 61 | 20A Power 2nd row seat release |
| 62 | 10A A/C compressor clutch |
| 63 | 15A Trailer tow turn signal / stop lamps |
| 64 | 15A Rear window wiper motor |
| 65 | 30A Fuel pump relay |
| 67 | 20A Vehicle Power (VPWR) 2 (emission control components) |
| 68 | 20A Vehicle Power (VPWR) 4 (ignition coils) |
| 69 | 20A Vehicle Power (VPWR) 1 (PCM) |
| 70 | 10A Vehicle Power (VPWR) 3 (relay coils, AWD module, A/C variable compressor control) |
| 71 | Spare |
| 72 | Spare |
| 73 | Spare |
| 74 | Spare |
| 75 | Spare |
| 76 | Spare |
| 78 | 20A Right High-Intensity Discharge (HID) headlamp |
| 79 | 5A Adaptive Cruise Control (ACC) module |
| 80 | Spare |
| 81 | Spare |
| 82 | 15A Rear window washer pump |
| 83 | Spare |
| 84 | 20A Trailer tow park lamps |
| 85 | Spare |
| 86 | 7.5A Powertrain Control Module (PCM) keep-alive power, PCM relay coil, EVAP canister vent valve |
| 87 | 5A Starter relay coil |
| 89 | 5A Front blower relay coil, Electronic Power Assisted Steering (EPAS) module |
| 90 | 10A PCM/ECM (2.0L EcoBoost engine), transmission controls |
| 91 | 10A Run/Accessory feed |
| 92 | 10A ABS module, factory test/fill switch |
| 93 | 5A Rear blower motor relay coil, rear window defroster relay coil, trailer tow battery charge relay coil |
| 94 | 30A Passenger compartment fuse panel (Run/Start feed) |
| 95 | Spare |
| 96 | Spare |
| 97 | Spare |
| Fuses 9, 20, and 21 (rated at 20A) protect the auxiliary power sockets and cigarette lighter in the Ford Explorer. | |
| Relays | |
| 10 | 3rd row power seat release relay |
| 11 | Rear window defroster relay |
| 12 | Trailer tow battery charge relay |
| 13 | Starter relay |
| 14 | Engine cooling fan 2 high-speed relay |
| 15 | Fuel pump relay |
| 25 | Not used |
| 32 | Rear auxiliary blower motor relay |
| 33 | Engine cooling fans 1 & 2 low-speed relay 2 |
| 34 | Front blower motor relay |
| 35 | Engine cooling fan 1 high-speed relay, low-speed relays 1 & 2 |
| 36 | Not used |
| 37 | Trailer tow right turn signal / stop lamp relay |
| 38 | Trailer tow reverse lamp relay |
| 44 | Rear window washer relay |
| 52 | Not used |
| 53 | Trailer tow left turn signal / stop lamp relay |
| 54 | Not used |
| 55 | Front wiper relay |
| 66 | Powertrain Control Module (PCM) relay |
| 77 | Trailer tow park lamp relay |
| 88 | Starter relay |
| 98 | A/C compressor clutch relay |
Type 2
Vehicles manufactured from 2015 onward.
| Diagram | |
|---|---|
|
|
| № | Circuit Protected / Function |
| 1 | 20A Powertrain Control Module (PCM) power supply |
| 2 | 20A Engine emission components, Malfunction Indicator Lamp (MIL) |
| 3 | 20A A/C compressor clutch relay coil, Variable Air Conditioning Control (VACC), Active Grille Shutters |
| 4 | 20A Ignition coils |
| 5 | Spare |
| 6 | Spare |
| 7 | Spare |
| 8 | Spare |
| 9 | Spare |
| 10 | 15A Heated exterior mirrors |
| 12 | 40A Rear window defroster |
| 13 | Spare |
| 15 | 20A Horn relay feed |
| 16 | 10A A/C compressor clutch relay feed |
| 22 | 25A Cooling fan relay No. 2 |
| 23 | Spare |
| 24 | Spare |
| 25 | Spare |
| 26 | 30A Anti-lock Brake System (ABS) valves |
| 27 | 30A Trailer tow battery charge relay feed |
| 28 | Spare |
| 30 | 10A Headlamp leveling control |
| 31 | 10A Electronic Power Assisted Steering (EPAS) module |
| 32 | 10A Anti-lock Brake System (ABS) module |
| 33 | 10A Powertrain Control Module (PCM) / Ignition feed |
| 34 | 10A Blind Spot Information System (BLIS), Adaptive Cruise Control (ACC), front/rear view cameras |
| 35 | Spare |
| 41 | 40A Rear blower motor |
| 42 | Spare |
| 43 | 40A Front blower motor |
| 44 | 50A Voltage Quality Module (VQM) feed |
| 45 | 40A Cooling fan relay No. 1 |
| 46 | 30A Trailer Brake Controller (TBC) |
| 47 | Spare |
| 48 | 50A Body Control Module (BCM) feed 1 |
| 49 | Spare |
| 50 | 50A Body Control Module (BCM) feed 2 |
| 51 | 50A Cooling fan relay No. 3 |
| 52 | 60A Anti-lock Brake System (ABS) pump motor |
| 53 | Spare |
| 54 | Spare |
| 55 | Spare |
| 56 | 40A Power inverter module |
| 57 | Spare |
| 58 | Spare |
| 59 | Spare |
| 60 | 20A Auxiliary power point (front console / storage compartment) |
| 61 | Spare |
| 62 | 20A Auxiliary power point (instrument panel) |
| 63 | 30A Fuel pump module |
| 64 | Spare |
| 65 | 20A Auxiliary power point (2nd row) |
| 66 | Spare |
| 67 | 20A Auxiliary power point (cargo area) |
| 68 | Spare |
| 69 | 30A Power liftgate module |
| 70 | 20A Trailer tow turn signal / stop lamps (LH & RH) |
| 71 | Spare |
| 72 | 30A Climate controlled seats module |
| 73 | 30A Driver seat module, driver power seat switch |
| 74 | 30A Power passenger seat switch |
| 75 | 30A Front wiper motor |
| 76 | Spare |
| 77 | Spare |
| 78 | 30A Power 3rd row seat module |
| 79 | 30A Starter relay |
| 80 | Spare |
| 81 | 10A Trailer tow reverse lamp relay |
| 82 | 20A Electronic steering column lock module |
| 83 | 10A Brake Pedal Position (BPP) switch |
| 84 | Spare |
| 85 | 5A 2nd-row USB smart charging port (if equipped) |
| 86 | Spare |
| 87 | Spare |
| 88 | Spare |
| 89 | Spare |
| 90 | Spare |
| 91 | Spare |
| 92 | 15A Multi-contour driver seat module |
| 93 | 10A Alternator battery current sensor |
| 94 | 15A Rear window washer pump relay |
| 95 | 15A Rear window wiper motor relay |
| 96 | 10A Powertrain Control Module (PCM) relay coil |
| 97 | 5A Rain sensor |
| 98 | 20A Power 2nd-row seat release motors |
| 99 | 20A Trailer tow park lamp relay |
| Fuses 60, 62, 65, and 67 (20A), as well as fuse 85 (5A), power the auxiliary power sockets and USB ports. | |
| Relays | |
| 11 | Engine cooling fan relay No. 3 (RH side) |
| 14 | Powertrain Control Module (PCM) relay |
| 17 | Rear window defroster & heated mirror relay |
| 18 | Rear blower motor relay |
| 19 | Not used |
| 20 | Engine cooling fan relay (LH side) |
| 21 | Engine cooling fan series/parallel relay |
| 29 | Run/Start relay |
| 36 | Front blower motor relay |
| 37 | Trailer tow battery charge relay |
| 38 | A/C compressor clutch relay |
| 39 | Horn relay |
| 40 | Not used |
