Ford unveiled the sixth-generation Explorer at the North American International Auto Show in January 2019. The model was also offered in the European market between 2019 and 2023. Unlike the North American market, the vehicle was sold in Europe exclusively with a hybrid engine. In this material, we will understand in detail the fuse box diagrams of the Ford Explorer 6 (sixth generation; body make U625; CD6 platform) 2019, 2020, 2021, 2022, 2023, 2024, 2025 model years.
Here you will find the location and photos of distribution boxes. The fuses responsible for the “Cigarette lighter” and “Fuel Pump” are highlighted in bold.
In the engine compartment
The fuse box is located on the left side of the underhood compartment.
To gain access, remove the protective cladding and the plastic cover of the unit.
General view.

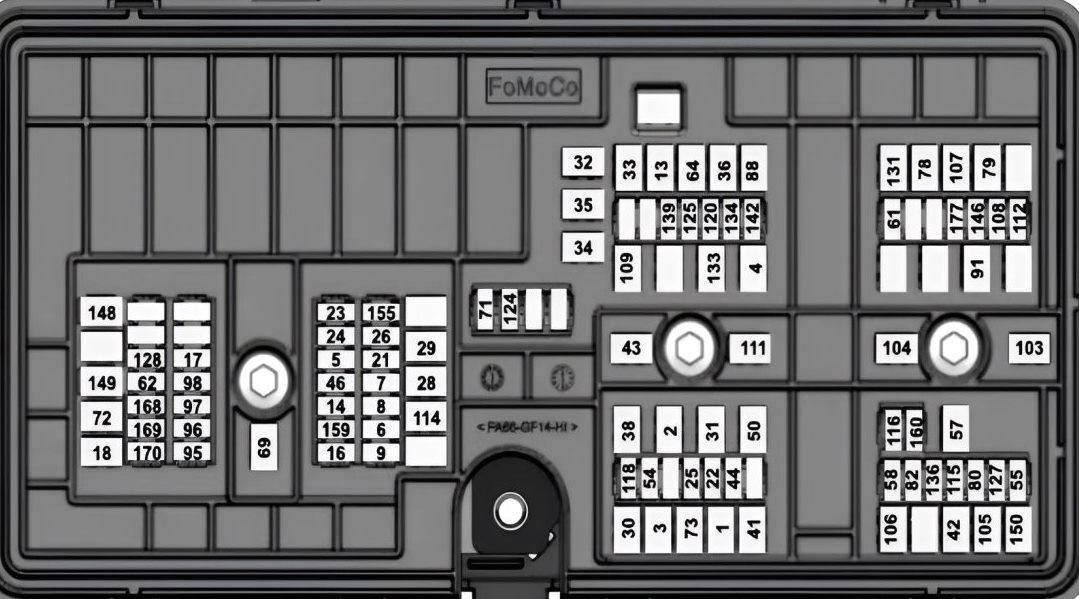

| Diagram | ||
|---|---|---|
|
||
| № | Description | Amps |
| 1 | Body control module - battery power #1. | 40A |
| 2 | Main console power outlet. | 20A |
| 3 | Body control module - battery power #2. | 40A |
| 4 | Fuel pump. | 30A |
| 5 | Power supply to powertrain control module. | 5A |
| 6 | Power supply to powertrain control module. | 20A |
| 7 | Canister vent solenoid. Exhaust leakage control module. Exhaust gas heat recuperator (hybrid electric vehicle). Tank pressure control valve (hybrid electric vehicle). Filling valve (plug-in hybrid electric vehicle). Vapour lock valve. Universal exhaust gas sensor. Catalyst monitoring sensor. Catalyst control sensor. Canister purge valve. | 20A |
| 8 | Cooling fan relay coil. Battery interrupt block. Transmission oil pump. Auxiliary coolant pump. Fuel shutter door (hybrid electric vehicle). Engine coolant relief valve. Active grille shutters. | 20A |
| 9 | Ignition coils. | 20A |
| 13 | Front blower motor relay. | 40A |
| 14 | Transmission oil pump. Air conditioner compressor variable clutch. Auxiliary pumps (hybrid electric vehicle). | 15A |
| 16 | Windscreen and rear window washer pump relay power supply. | 15A |
| 17 | Charging status indicator (hybrid electric vehicle). | 5A |
| 18 | Starter motor. | 30A |
| 21 | Headlight levelling motors. Adaptive headlights. | 10A |
| 22 | Electric power steering module. | 10A |
| 23 | Anti-lock braking system module with integrated parking brake. | 10A |
| 24 | Powertrain control module. Hybrid transmission control module. | 10A |
| 25 | Air quality sensor. 360 camera with parking assist. Rear-view camera. Blind spot warning system. Adaptive cruise control module. | 10A |
| 26 | Transmission control module. | 15A |
| 28 | Anti-lock braking system with integrated parking brake. | 40A |
| 29 | Anti-lock brake system pump with integrated parking brake. | 60A |
| 30 | Driver's seat module. | 30A |
| 31 | Passenger seat motor. | 30A |
| 32 | Ford Explorer cigarette lighter socket in the front of the vehicle | 20A |
| 33 | Power socket in the luggage compartment. | 20A |
| 34 | Power socket in console end cap. | 20A |
| 35 | Cigarette lighter socket in 4. | 20A |
| 36 | Power inverter. | 40A |
| 38 | Climate control seat module. | 30A |
| 41 | Motorised lift gate module. | 30A |
| 42 | Trailer brake control module. | 30A |
| 43 | Body control module. | 60A |
| 44 | Brake on/off switch. | 10A |
| 46 | Charger control module (hybrid electric vehicle). | 15A |
| 50 | Heated lighting. | 40A |
| 54 | Heated steering wheel. | 20A |
| 55 | Parking lights for towing a trailer. | 20A |
| 57 | Battery charging for towing trailer. | 30A |
| 58 | Back-up trailer towing lights. | 10A |
| 61 | Multi-contour seat module. | 15A |
| 62 | Headlight washer pump. | 15A |
| 64 | Four-wheel drive module. | 40A |
| 69 | Front window wiper motor. | 30A |
| 71 | Rear window wiper motor. | 15A |
| 72 | Reserve. | 20A |
| 73 | Driver's door module. | 30A |
| 78 | Heated left windscreen. | 50A |
| 79 | Heated right windscreen. | 50A |
| 80 | Trailer towing. | 20A |
| 82 | Reserve. | 20A |
| 88 | Rear blower motor. | 20A |
| 91 | Towed trailer lighting module. | 20A |
| 95 | Integrated spark control (hybrid electric vehicle). | 15A |
| 96 | Reserve. | 15A |
| 97 | Electric air conditioning (hybrid electric vehicle). High voltage heater with positive temperature coefficient (hybrid electric vehicle). | 10A |
| 98 | Proportional traction battery coolant valve (hybrid electric vehicle). | 10A |
| 103 | Reserve. | 50A |
| 104 | Reserve. | 50A |
| 105 | Reserve. | 40A |
| 106 | Reserve. | 40A |
| 107 | Reserve. | 40A |
| 108 | Reserve. | 20A |
| 109 | Passenger door module. | 30A |
| 111 | Power supply to the body control module for voltage quality control. | 30A |
| 112 | Reserve. | 20A |
| 114 | Reserve. | 50A |
| 115 | Amplifier. | 20A |
| 116 | Reserve. | 5A |
| 118 | Heated second row seats. | 30A |
| 120 | Fuel injectors. | 15A |
| 124 | Rain sensor. | 5A |
| 125 | USB charger 1. | 5A |
| 127 | Amplifier. | 20A |
| 128 | Reserve. | 15A |
| 131 | Power seat module. | 40A |
| 133 | Heated windscreen wiper park. | 15A |
| 134 | Multimedia entertainment system. | 10A |
| 136 | Reserve. | 20A |
| 139 | USB charger 2. | 5A |
| 142 | Traffic camera. | 5A |
| 146 | Electronic battery management module. | 15A |
| 148 | Left headlight module. | 30A |
| 149 | Right headlamp module. | 30A |
| 150 | Reserve. | 40A |
| 155 | Transmission control module (hybrid electric vehicle). | 25A |
| 159 | DC/DC converter (hybrid electric vehicle). | 15A |
| 160 | Redundant. | 10A |
| 168 | Low voltage supply disconnector. | 20A |
| 169 | Coolant pump (hybrid electric vehicle). | 10A |
| 170 | Traction battery coolant pump (hybrid electric vehicle). / Pedestrian horn (hybrid electric vehicle) (2021-2022). | 10A |
| 177 | Reserve. | 10A |
In the passenger compartment
The fuse box is located under the dashboard on the driver's side.
To get access to the block, you need to remove the plastic cover.
Photo - example.

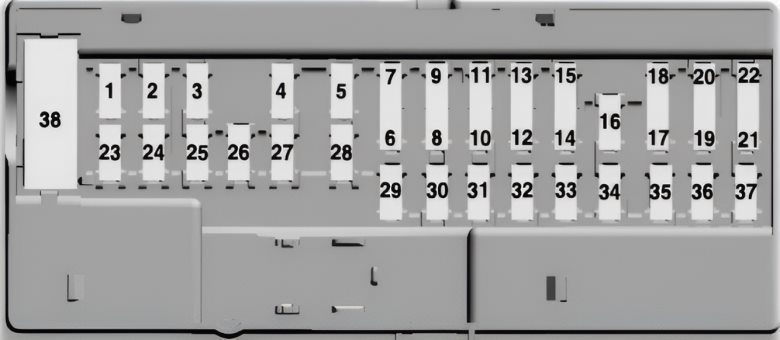

| Diagram | ||
|---|---|---|
|
||
| № | Description | Amps |
| 1 | Not in use. | |
| 2 | Sunroof. ERA-GLONAS. eCall. Telematics control unit module. Inverter. Driver's door switch kit. | 10A |
| 3 | Seat switch with memory Wireless accessory charger module. Seat switches. | 7,5A |
| 4 | Standby. | 20A |
| 5 | Not in use. | |
| 6 | Not used. | 10A |
| 7 | Power supply for the smart data connector. | 10A |
| 8 | Telematics control unit modem. Hands-free liftgate control module. Liftgate actuator module. | 5A |
| 9 | Keypad switch. Rear climate control. | 5A |
| 10 | Not used. | |
| 11 | Not used. | |
| 12 | Climate control head. Gear shift module. | 7,5A |
| 13 | Steering column control module. Smart datalink connector. Instrument panel. | 7,5A |
| 14 | Reserve. | 15A |
| 15 | SYNC. Integrated control panel. | 15A |
| 16 | Not used. | |
| 17 | Headlight control module. | 7,5A |
| 18 | Reserve. | 7,5A |
| 19 | Headlamp switch. Push-button ignition switch. | 5A |
| 20 | Ignition switch. Telematics control unit module. Electromagnetic key lock. | 5A |
| 21 | Not used. | 5A |
| 22 | Pedestrian horn (hybrid electric vehicle). | 5A |
| 23 | Redundant. | 30A |
| 24 | Sunroof | 30A |
| 25 | Redundant. | 20A |
| 26 | Standby. | 30A |
| 27 | Standby. | 30A |
| 28 | Standby. | 30A |
| 29 | Reserve. | 15A |
| 30 | Trailer brake connector. | 5A |
| 31 | Terrain control switch. Travelling mode switch. Transceiver module. | 10A |
| 32 | Audio system control module. | 20A |
| 33 | Not used. | |
| 34 | Start relay. | 30A |
| 35 | Standby. | 5A |
| 36 | Parking assistance module. Image processing module A. | 15A |
| 37 | Redundant. | 20A |
| 38 | Left rear power window. Right rear power windows. | 30A |
View and print PDF:
The 2025 Explorer does not have this type of fuse box inside the cab. The fuse box is in the glove box.
