Fuses and relays Ford Fusion (CX70), 2002–2011

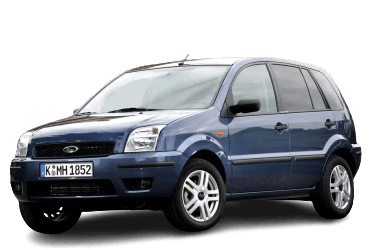

The European-market Fusion subcompact MPV was produced at the Ford plant in Germany from 2002 to 2011 with 1.2L, 1.4L, and 1.6L gasoline and diesel engines. The vehicle underwent a mid-cycle facelift during this production run. This guide details the fuse boxes and relay panels for the Ford Fusion (B3 platform; chassis code CX70), complete with circuit diagrams and location photos. The fuse responsible for the “Cigarette Lighter” is highlighted in bold.

Fuse and relay assignments may vary depending on vehicle equipment and model year. Always cross-reference with your vehicle’s technical documentation.

In the Engine Compartment

Power Fuse Panel


Mounted on the side of the battery at the positive cable terminal, this panel consists of high-current fuse links. Accessing it requires lifting the battery.

Diagram
No. Description
FA 80A Auxiliary heater (PTC heater)
FB 60A Transmission control module
FC 60A Auxiliary heater (PTC heater) / Glow plugs (diesel engine)
FD 40A Radiator cooling fan and air conditioning
FE 60A Exterior lighting and Generic Electronic Module (GEM)
FF 60A Ignition switch
FG 60A Engine management and exterior lighting
FH 60A Heated windshield, ABS, ESP, power windows

Relay Box


Located next to the battery in a square housing.

Diagram
R1 - A/C cut-off at wide-open throttle (WOT)
R2 - High-speed engine cooling fan
R3 - Auxiliary heater (PTC heater)
R4 - Auxiliary heater (PTC heater)

In the Passenger Compartment


The main fuse and relay box is located inside the passenger compartment behind the glove box. To access it, gently squeeze the sides of the glove box inward.


The exact circuit layout is printed on the diagram inside the cover.

Diagram
No. Fuse Description
F1 Spare
F2 Trailer towing socket
F3 Trailer towing socket
F4 10A Heating, ventilation, and air conditioning (HVAC) system
F5 20A Anti-lock Braking System (ABS)
F6 30A Anti-lock Braking System (ABS)
F7 15A Durashift EST automated transmission
F8 7.5A Power exterior mirrors
F9 10A Left low-beam headlight
F10 10A Right low-beam headlight
F11 15A Daytime running lights (DRL)
F12 15A Fuel injection system power supply, ECU
F13 20A Diesel engine management system
F14 30A Starter motor
F15 20A Fuel pump
F16 3A Fuel injection relay power feed, ECU
F17 15A Exterior lighting switch
F18 15A Audio unit
F19 15A Daytime running lights (DRL)
F20 7.5A Instrument cluster, power delay module, license plate lights
F21 Spare
F22 7.5A Left side / position lights
F23 7.5A Right side / position lights
F24 20A Central locking system and alarm horn
F25 15A Hazard warning lights
F26 20A Heated rear window, tailgate release
F27 15A Horn
F28 3A Battery sense, starter circuit
F29 15A Cigarette lighter
F30 15A Ignition system
F31 10A Exterior lighting switch
F32 7.5A Heated exterior mirrors
F33 7.5A Instrument cluster switch
F34 Spare
F35 7.5A Heated front seats
F36 30A Power windows
F37 3A Anti-lock Braking System (ABS) module
F38 7.5A Generic Electronic Module (GEM)
F39 7.5A Airbag system (SRS)
F40 7.5A Automatic transmission control module
F41 Spare
F42 30A Heated windshield
F43 30A Heated windshield
F44 3A Audio unit
F45 15A Brake lights
F46 20A Windshield wiper and washer system
F47 10A Rear window wiper
F48 7.5A Reverse lights
F49 30A Blower motor
F50 20A Fog lights
F51 15A Auxiliary power outlet / cigarette lighter
F52 10A Left high-beam headlight
F53 10A Right high-beam headlight
Fuses No. 29 and No. 51 (15A) are responsible for the Ford Fusion cigarette lighter and power outlets.


Please note that the Generic Electronic Module (GEM)—located under the dashboard behind the glove box—is also responsible for controlling the central locking, alarm system, turn signals, wipers, interior lighting, and diagnostic system (OBD).
