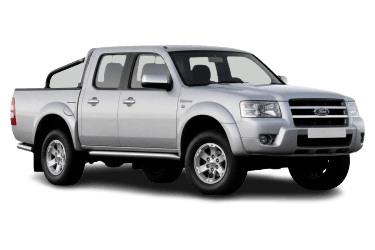

The Ranger compact pickup was produced in North America across three generations until 2011. Subsequently, Ford introduced the updated global/European Ford Ranger T6. This article details the fuse and relay box diagrams for the Ford Ranger (Ford-Mazda DEW / J97 platform; chassis codes PK / PJ / PK2) produced in 2006, 2007, 2008, 2009, 2010, 2011, and 2012. The fuse responsible for the “Cigarette lighter” is highlighted in bold.
This model features two main fuse and relay boxes: one in the passenger compartment and one under the hood. Layouts and circuit assignments may vary depending on the model year and target market.
Engine Compartment
Location example
| Diagram | |
|---|---|
|
|
| No. | Protected Circuit / Component |
| 1 | 80 A – Main fuse (overall circuit protection) |
| 2 | 60 A – Glow plugs |
| 3 | 40 A – Engine management system, instrument cluster, cigarette lighter, power windows |
| 4 | 60 A – Headlamps |
| 5 | 20 A – Fuel injectors and fuel system |
| 6 | 40 A – ABS pump motor, hazard warning lights, brake lights |
| 7 | 30 A – Fuel heater |
| 8 | 60 A – Air conditioning system, windshield wipers and washers |
| 9 | 60 A – Air conditioning system, heated rear window, central locking, ABS solenoid valve 1, power windows, tail lights, fog lamps |
Passenger Compartment
Located under the dashboard behind the access cover.
Location example
| Diagram | |
|---|---|
|
|
| No. | Protected Circuit / Component |
| 1 | 20 A – Cigarette lighter, audio system, power exterior mirrors, auxiliary power outlet |
| 2 | 15 A – Heated seats |
| 3 | 15 A – Windshield wipers and washers |
| 4 | 10 A – A/C and ABS relays |
| 5 | 30 A – Central locking system |
| 6 | 30 A – Power windows |
| 7 | 20 A – ABS solenoid valves |
| 8 | 15 A – Brake lights, horn |
| 9 | 10 A – Hazard warning lights |
| 10 | 15 A – Instrument cluster, reverse lights, turn signals, remote wheel free (RWF) hub lock |
| 11 | 15 A – Engine management system |
| 12 | Spare |
| 13 | 10 A – A/C compressor clutch |
| 14 | 20 A – Heated rear window |
| 15 | 10 A – Rear fog light |
| 16 | 15 A – Right headlamp |
| 17 | 15 A – Left headlamp |
| 18 | 15 A – Front fog lights |
| 19 | 10 A – Front and rear parking lights, license plate light |
| 20 | 15 A – Interior lights, warning indicators |
| 21 | Spare |
| 22 | 30 A – Power windows |
