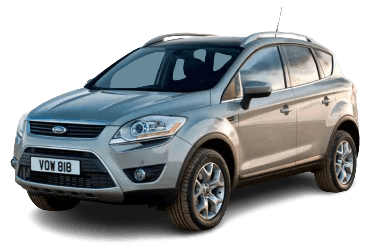

The 1st generation Ford Kuga compact crossover was produced in 2008, 2009, 2010, 2011, 2012, 2013 with diesel and gasoline engines. In our material, we will show the location of all electronic control units, we will describe in detail the fuse boxes and the Ford Kuga 1 relay . The fuse responsible for the “Cigarette lighter” is highlighted in bold.
The purpose of relays and fuses in distribution blocks may differ from that shown and depends on the year of manufacture of the Ford Kuga 1.
General arrangement
Location of the electronic control units.
|
|
| № | Description |
| 1 | ABS electronic control unit |
| 2 | Air conditioning electronic control unit (with automatic temperature control) |
| 3 | Sunlight sensor (air conditioning) (with automatic temperature control) |
| 4 | Air conditioning / heater fan motor control unit (with automatic temperature control) - next to the fan motor |
| 5 | Shock sensor (SRS) |
| 6 | Side impact sensor, driver's side - in the B-pillar |
| 7 | Side impact sensor, passenger side - in the B-pillar |
| 8 | Anti-theft alarm horn (with optional battery) |
| 9 | Anti-theft alarm horn (without additional battery) - on the right side of the luggage compartment |
| 10 | Volume change sensor (anti-theft system) - in the interior lamp - if equipped |
| 11 | Sunlight sensor - if equipped |
| 12 | Auto Light Circuit Control Relay - In the under-dash fuse / relay box |
| 13 | Additional heater (electric) - if available |
| 14 | Accumulator battery |
| 15 | Battery Current Monitor Relay - in the under-dash fuse / relay box |
| 16 | CD - changer - under the passenger seat |
| 17 | Central locking relay - in the under-dash fuse / relay box |
| 18 | Central locking relay (driver's door) - in the under-dash fuse / relay box |
| 19 | Central locking relay (unlocked) - in the under-dash fuse / relay box |
| 20 | Central locking relay, double locking relay - in the under-dash fuse / relay box |
| 21 | Diagnostic connector (DLC) |
| 22 | Driver's door control unit |
| 23 | Rear left door electrical control unit |
| 24 | Passenger door electronics control unit |
| 25 | Rear right door electrical control unit |
| 26 | Electronic engine control unit - behind the wheel arch |
| 27 | Cooling fan motor control unit |
| 28 | Electronic control unit 4WD - on the rear gearbox |
| 29 | Fuse / relay box, engine compartment 1 |
| 30 | Fuse / Relay Box, Engine Compartment 2 - Near Battery |
| 31 | Fuse / relay box, instrument panel |
| 32 | Fuse / relay box, luggage compartment - right side of luggage compartment |
| 33 | Acceleration Sensor (Lateral) (with ESP) |
| 34 | Headlamp High Beam Relay - In the under-dash fuse / relay box |
| 35 | Headlight range control unit (with xenon headlights) |
| 36 | Headlamp low beam relay - in the under-dash fuse / relay box |
| 37 | Heated rear window relay - in the under-dash fuse / relay box |
| 38 | Heater blower motor resistor (no automatic temperature control) - next to blower motor |
| 39 | Heater control unit (without automatic temperature control) |
| 40 | Sound signals |
| 41 | Main ignition circuit relay 2 - Integrated in engine compartment fuse / relay box 1 |
| 42 | Immobilizer control unit |
| 43 | Instrument cluster control unit |
| 44 | Remote control unit for central locking and engine start - on the left side of the luggage compartment - if equipped |
| 45 | Remote start control unit (keyless) - on the left side of the luggage compartment - if equipped |
| 46 | Multifunction control unit - in the under-dash fuse / relay box - functions: Air conditioning, anti-theft system, sunlight sensor, lighting, automatic lighting control system, auxiliary heater, Battery current monitoring system, low brake fluid level indicator, central locking, charging system, cruise control system, diagnostics system, fog lights, parking brake indicator, hazard warning lights, headlight washers, heated rearview mirrors, heated rear window, seat heater, heated windshield, windshield washer nozzle heaters, direction indicators, lamps interior lighting, ambient temperature sensor, pedal control system, rain sensor,rear window wiper / washer, reversing lights, tailgate unlocking, windshield wiper / washer |
| 47 | Navigation control unit - in the navigation system display |
| 48 | Ambient temperature sensor |
| 49 | Parking system control unit - right side of luggage compartment |
| 50 | Rear view camera when parking - in the rear door |
| 51 | Parking speaker, front. - if there's |
| 52 | Parking speaker, rear - right side of luggage compartment - if equipped |
| 53 | The power steering control unit (electric power steering) is in the power steering pump. |
| 54 | Rain sensor - in the sun sensor - if equipped |
| 55 | Rear window wiper / washer relay - in the under-dash fuse / relay box |
| 56 | Driver's seat heating control unit - under the driver's seat |
| 57 | Passenger Seat Heating Control Unit - Under Passenger Seat |
| 58 | Steering column lock control unit |
| 59 | Steering wheel position sensor (with ESP) |
| 60 | Steering Wheel Position Sensor (Electric Power Steering) - on the steering rack |
| 61 | SRS electronic control unit |
| 62 | Body Height Sensor (Front) - With Xenon Headlights |
| 63 | Body Height Sensor (Rear) - With Xenon Headlights |
| 64 | Telephone control unit |
| 65 | Trailer control unit - left side of luggage compartment - if equipped |
| 66 | Windshield wiper motor 1 relay (low speed) - in the under-dash fuse / relay box |
| 67 | Windshield wiper motor 2 relay (high speed) - in the under-dash fuse / relay box |
| 68 | Lateral movement sensor (with ESP) - in acceleration sensor |
In the passenger compartment
It is located under the dashboard on the passenger side, under the glove compartment.
| Diagram | |
|---|---|
|
|
| № | Description |
| 100 | 10A Electronic modules (powered by ignition switch) |
| 101 | 20A Electric drive, driver's seat |
| 102 | 10A Heater control, remote control receiver |
| 103 | 10A Power supply of external lighting controls from the battery |
| 104 | 10A Energy saving system, interior lamps |
| 105 | 25A Heated rear window |
| 106 | 20A Keyless engine start |
| 107 | 10A Battery powered instrument cluster, on-board diagnostics |
| 108 | 7.5A Additional functions of the instrument cluster (audio system and navigation system) |
| 109 | 20A Cigarette lighter, additional electrical outlet at the back |
| 110 | 10A Power supply of the switch of the outdoor lighting system during the daytime from the generator |
| 111 | 5A Fuel pump (diesel engine only) |
| 111 | 15A Fuel pump (only petrol engine) |
| 112 | 15A Audio modules (battery powered) |
| 113 | 10A Outdoor lamps in the daytime (sidelights) |
| 114 | 10A Power supply of the instrument cluster from the generator, engine immobilizer |
| 115 | 7.5A Power supply of external lighting controls from the generator |
| 116 | 20A Fog lights / lights |
| 117 | 7.5A License plate lighting |
| 118 | 20A Door electrical module (left rear) |
| 119 | 15A Additional power socket in the luggage compartment |
| 119 | 25A Additional power socket in the luggage compartment (vehicles with a trailer tow module) |
| 120 | 20A Door electrical module (right rear) |
| 121 | 20A Heated front seats |
| 122 | 10A Airbag module |
| 123 | 7.5A Heated exterior mirrors |
| 124 | 7.5A Rear and front side lights, brake lights (left side) |
| 125 | 7.5A Rear and front side lights, brake lights (right side) |
| 126 | 20A Keyless Entry System |
| 127 | Reserve |
| 128 | Reserve |
| 129 | 20A Windshield wipers |
| 130 | 10A AWD Module |
| 131 | 15A Rear window cleaner |
| 132 | 15A Stop lights |
| 133 | 25A Central locking relay, passenger door module |
| 134 | 20A Central locking system relay, driver's door module |
| 135 | 20A Daytime running lamps |
| 136 | 15A Windscreen washer pump, heated windscreen washer jets |
| 137 | 10A Loudspeaker for turning on the emergency battery power supply |
| 138 | 10A Powertrain control module, accelerator pedal, automatic transmission, IGN keyless module monitoring |
| 139 | 10A High beam headlights, right side |
| 140 | 10A High beam headlights, left side |
| 141 | 10A Reversing light |
| 142 | 15A Low beam headlights (right side) |
| 143 | 15A Low beam headlights (left side) |
| The fuse number 109, 20A, is responsible for the Ford Kuga cigarette lighter. | |
In the engine compartment
Located under the protective cover on the left side, next to the battery.
General view.
| Diagram | |
|---|---|
|
|
| № | Purpose of fuses |
| 1 | 50A Electro Engine Cooling Fan |
| 2 | 80A Power steering |
| 3 | 60A Internal fuse box 1 |
| 4 | 60A Internal fuse box 2 |
| 5 | 80A PTC Heater |
| 6 | 60A Glow plugs (only for vehicles with diesel engines) |
| 7 | 30A Anti lock ABS system, dynamic stabilization pump |
| 8 | 20A Anti lock ABS system, dynamic stabilization system valves |
| 9 | 20A Powertrain control unit |
| 10 | 30A Fan of the climate control system |
| 11 | 20A Ignition switch (starter and instruments) |
| 12 | 40A Relay 15 ignition |
| 13 | 20A Starter electrical winding |
| 14 | 40A Heated windshield, right side |
| 15 | Reserve |
| 16 | 40A Heated windshield, left side |
| 17 | Reserve |
| 18 | 30A Power converter |
| 19 | 10A ABS module |
| 20 | 15A Sound signal |
| 21 | 20A Auxiliary heater |
| 22 | 10A Power steering module |
| 23 | 30A Headlight washers |
| 24 | 15A Auxiliary heater (only for vehicles with diesel engines) |
| 25 | 10A Ignition relay |
| 26 | 10A automatic transmission |
| 27 | 10A Air conditioning compressor clutch |
| 28 | 10A Glow plug control (only for vehicles with diesel engines) |
| 29 | 10A Separate climate control system |
| 30 | 3A Powertrain control unit, automatic transmission |
| 31 | 10A Intelligent battery charging |
| 32 | 10A automatic transmission |
| 33 | 10A Heated oxygen sensors (only for vehicles with gasoline engines) |
| 33 | 10A Intermediate air cooling bypass valve (only for vehicles with diesel engines) |
| 34 | 10A Injectors, ignition coils |
| 35 | 10A Powertrain control unit, valve, solenoid valve |
| 36 | 10A Powertrain control unit |
| Relays | |
|
|
| 1 | Reserve |
| 2 | Horn relay |
| 3 | Reversing light relay |
| 4 | Reserve |
| 5 | Fuel heater relay |
| 6 | Reserve |
| 7 | Windshield heater relay |
| 8 | Relay for main ignition circuits |
| 9 | Headlight washer pump relay |
| 10 | Heater blower motor relay |
| 11 | Fully open throttle position relay |
| 12 | Glow plug relay |
| 13 | Starter relay |
| 14 | Engine control relay |
