Fuses and relays Honda Fit Aria (GD; 2002 - 2009)

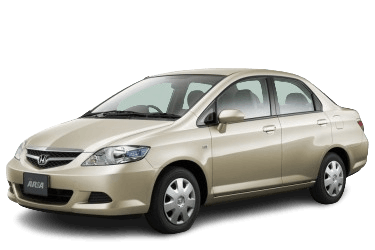

This sedan, based on the Fit model, has gained great popularity in the Japanese market. It began production at the end of 2002 and became the 4th model in the SMALL MAX series, continuing the Fit, Mobilio and Mobilio Spike concepts. In this material, we will analyze in detail the fuse circuits of Honda Fit Aria (first generation; GD) 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 2WD & 4WD.

Here you will find the locations and photos of the fuse boxes. The fuses responsible for the “Cigarette lighter” and “Fuel Pump” are highlighted in bold.

In the passenger compartment

Located on the driver's side, at the bottom of the dashboard, behind a plastic cover.

General view of the distribution box.

Diagram
No.	Description	A
1	Cooling system radiator relay, condenser fan relay, compressor electromagnetic clutch relay, heater fan motor relay, electric mirror drives, air conditioner switch, rear window defogger switch	7.5
2	Front passenger door power window	20
3	Power window regulator, rear right door	20
4	Electric power window rear left door	20
5	Ignition key lock control circuit (built into the instrument cluster), ignition key lock solenoid valve, radio	7.5
6	Cigarette lighter fuse Honda Fit Aria	15
7	Driver's door power window	20
8	Powertrain control unit, main injection system relay No. 1, main injection system relay No. 2, crankshaft position sensor, camshaft position sensor, idle speed control valve, injectors, immobilizer receiver (models from 03/2004 onwards) )	15
9	Heated rear window	30
10	SRS electronic control unit	10
11	Powertrain control unit, fuel pump fuse, SRS electronic control unit	15
12	Pressure modulator and ABS control unit, supply voltage control unit (models up to 10/2005), electronic control unit for power steering (models up to 10/2005), selector lever lock solenoid valve (models up to 10/2005), combination devices (models up to 10/2005), central locking remote control unit (models from 10/2005), generator (models up to 10/2005), oxygen sensor (models from 10/2005), recovery system solenoid valve topple vapors (models from 10/2005)	7.5
13	Drive motor clean windshield glass, washer pump	20
14	Ignition coils (front row)	15
15	Ignition coils (rear row)	15
16	Direction indicator and hazard warning light control circuit (instrument cluster)	10
17	Power window control unit (integrated in the main power window control switch), illumination of the main power window control switch, supply voltage control unit (models from 10/2005), electronic control unit for power steering (models from 10/2005), solenoid valve selector lock (models from 10/2005), instrument cluster (models from 10/2005), central locking remote control unit (models from 10/2005), generator (models from 10/2005), oxygen sensor ( models from 10/2005), a solenoid valve for the EVAP system (models from 10/2005), an automatic headlight beam control unit (models with gas discharge headlights) (models from 10/2005),electric headlight range control (models from 10/2005) Power window relay	7.5
18	No	-
19	Rear window wiper motor	10
20	Reversing light relay	7.5
Relay
1	Power window relay
8	Reversing light relay
Rest: wiring harnesses, or not used

In the engine compartment

The location of the fuse box in the engine compartment of the car.

The photo shows an example.

Diagram
No.	Decoding of fuses	A
1	Accumulator battery	80
2	Power steering electronic control unit	40
3	Egnition lock	50
4	Pressure modulator and ABS control unit	40 30 *
5	Heater blower motor	40
6	Fuses No. 2, No. 3, No. 4, No. 7, No. 8, No. 9 (fuse box in the passenger compartment)	50
7	Electric drives for door locks	20
8	Diagnostic socket, radio, instrument cluster, remote control for central locking, luggage compartment lamp, interior lamp, local illumination lamp, immobilizer receiver (models from 03/2004)	10
9	switch illumination, instrument cluster illumination, air conditioning and heating control panel illumination, radio cassette illumination, tail lights, license plate illumination, selector position indication panel illumination	10
10	Cooling fan motor	20
11	Condenser fan motor Electromagnetic compressor clutch	20
12	Right discharge lamp control unit (models with discharge headlights), electromagnet for switching the operating mode of the right headlight (models with discharge headlights) Right headlight (models with halogen headlights)	20
13	Left discharge lamp control unit (models with discharge headlights), electromagnet for switching the operating mode of the left headlight (models with discharge headlights), headlight high beam indicator (models with discharge lamps) LH headlight (models with halogen headlights), high beam indicator (models with halogen headlights)	20
14	Direction indicator and hazard warning light control circuit (instrument cluster)	10
15	Pressure modulator and ABS control unit	30 20 *
16	Pressure modulator and ABS control unit, powertrain control unit, brake lights, additional brake light Sound signal Horn relay	10
* - models of release from 10/2005
Relay
2	Compressor electromagnetic clutch relay
3	Condenser fan motor relay
1	Headlight relay
5	Cooling fan motor relay
4	Horn relay
