Fuses and relays Honda Fit / Jazz (GD; 2001 - 2007)

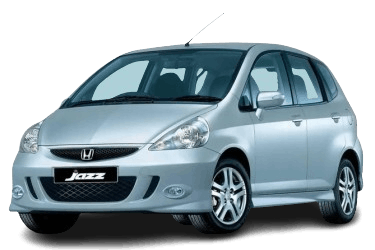

Honda Fit for the domestic Japanese market (in the European market the car is called the Honda Jazz) has been produced since June 2001 and since that moment has not ceased to maintain a high level of sales and great popularity. This small car looks like a minivan with incredible sportiness. The model, targeting the American market, debuted at the Detroit Auto Show in January 2006.  In this material, we will analyze in detail the fuse circuits (GD) of the first generation 2001, 2002, 2003, 2004, 2005, 2006, 2007 release.

Here you will find the locations and photos of the fuse boxes. Separately, we note the elements responsible for the cigarette lighter and fuel pump.

In the passenger compartment

Fuse box located on the driver's side at the bottom of the dashboard.

General view of the block.

No. Decoding A
1 Empty -
2 Driver's door power window 20
3 Driver's door lock electric drive, rear door lock electric drive 20
4 Power window regulator, rear right door 20
5 Turn signal and alarm circuit (instrument cluster), reversing light relay, reversing lights 10
6 No -
7 Ignition coil (front) 15
8 Connector for additional equipment, cigarette lighter fuse jazz / fit 15
9 Front passenger position detection system unit, ignition coil (rear) 15
10 Windshield wiper motor, electric washer pump 20
11 Electronic control unit PGM-FI, fuel module (fuel pump fuse honda jazz / fit), electronic control unit SRS 15
12 Heated rear window 20
13 Power window regulator, rear left door 20
14 Front passenger door power window 20
15 SRS electronic control unit 10
16 Sunroof control unit, pressure modulator and ABS electronic flea control system, supply voltage monitoring system unit, EPS electronic control unit, e / m switch lock valve, instrument cluster, central locking remote control unit, generator, oxygen sensor, electropneumatic vapor recovery system valve fuel 7.5
  • Ignition key lock control circuit, instrument cluster, ignition key lock solenoid valve, "MULTIVISION" system unit (models with navigation system), audio system unit (models without navigation system), TV tuner (models with navigation system)
  • Connector for additional equipment
18 Connector for additional equipment -
19 No -
20 Electronic control unit PGM-FI, the main relay of the injection system No. 1, the main one is the relay of the injection system No. 2, the crankshaft position sensor, the valve of the idle speed control system, the TDC sensor; injectors 15
  • Window lifter control relay (built into the switch), lighting of the main window lifter control switch
  • Turnip electric windows
  • Cooling fan motor relay, condenser fan motor relay, air conditioning compressor electromagnetic clutch relay, air conditioning electronic control unit (with automatic control), heater fan motor relay, electric mirror drive, air conditioning switch
  • Connector for additional equipment
23 No -
33 Fog lamp relay
34 Heater blower motor relay
32 Main Relay # 1 PGM-FI
31 Main Relay # 2 PGM-FI
18 Power window relay
30 Central locking / fuel system lockout (restart) relay
29 Central locking / fuel system lockout (restart) relay
37 Reversing light relay
28 Starter
35 Tail lamps
Rest: either wiring harnesses or not used

In the engine compartment

Fuse box located near the battery. To access, you need to squeeze the two latches and pull the cover up.

Photo is an example.

No. Description A
1 Battery 80
2 EPS electronic control unit 40
3 Ignition switch (+ B) 50
4 Pressure modulator and ABS electronic control unit 40
5 Heater blower motor 40
6 Fuses No. 2, 3, 4, 13, 14 in the cabin 40
7 Sunroof Motor, # 24 Fuse Holder (with Fog Lights), Fog Lamp Diagnostic Connector (YOP) 30
8 Diagnostic socket, "MULTIVISION" system unit (models with navigation system), audio system unit (models without navigation system), TV tuner (models with navigation system), instrument cluster, remote control unit for central locking, luggage compartment lamp, lamp interior lighting, local illumination lamp 15
9 Switch illumination, instrument cluster illumination, fog lamp relay, electronic illumination, air conditioning control unit (with automatic control), illumination of the air conditioning and heater control panel (without automatic system), illumination of the "MULTIVISION" system unit (models with a navigation system), illumination of the audio system unit, front marker lamps, rear marker lamps, license plate light, connector for additional equipment (fuse box) 10
10 Cooling fan motor 20
  • Condenser fan motor
  • A / C compressor electromagnetic clutch, noise suppressor
12 Right headlight 20
13 LH headlight, high beam indicator 20
14 Direction indicator and alarm circuit. (Instrument cluster) 10
15 Pressure modulator and ABS electronic control unit 30
  • Selector lever lock control circuit (instrument combination), pressure modulator and ABS electronic control unit; electronic control unit PGM-F1, brake lights, additional brake: signal L / R
  • Sound signal
  • Horn relay
2 A / C compressor electromagnetic clutch relay
3 Condenser fan relay
1 Headlight relay
5 Cooling fan motor relay
4 Horn relay
7 Starter
8 T-101 engine wire harness
6 EPS T-102 wire harness
