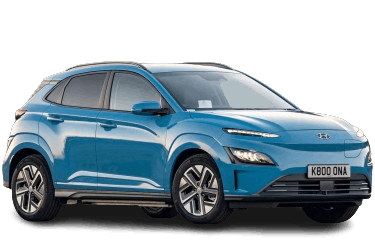

The Kona Electric is a compact crossover SUV produced by South Korean automaker Hyundai. Introduced in June 2017, the vehicle went on sale in Western Europe in late 2017. It is marketed as the Hyundai Kauai in Portugal and as the Hyundai Encino in China. This guide provides comprehensive fuse box diagrams and relay panel layouts for the first-generation Hyundai Kona EV (OS chassis code) across model years 2018, 2019, 2020, 2021, 2022, and 2023.
Below you will find the locations, diagrams, and photos of all power distribution centers. The fuses controlling the 12V auxiliary power outlets (“cigarette lighter” sockets) are specifically highlighted.
In the engine compartment
The engine compartment fuse box is located adjacent to the 12V auxiliary battery. Unclip and remove the protective plastic cover to access the fuses.
Engine compartment junction block overview.
Sample fuse diagram legend on the cover interior.
| Diagram | ||
|---|---|---|
|
||
| Fuse | Protected Circuit / Component | Rating (A) |
| B+1 | IGPM (Integrated Power Module: Brake Light Switch, Module 1, PDM 1, PDM 2, Door Lock / Parasitic Current Drain Auto-Cutoff) | 40 |
| B+2 | IGPM (Seat Heater, IPS0, IPS1, IPS2) | 60 |
| B+3 | IGPM (IPS3, IPS5, IPS6, IPS7, IPS8) | 60 |
| B+4 | IGPM (LH Power Window, RH Power Window, Tailgate Latch, Sunroof, Audio Amplifier, Driver Power Seat, Passenger Power Seat) | 50 |
| B+5 | PCB Block (Battery Management System, Horn, EPCU 1, Headlamps, IG3 Main Relay) | 60 |
| BATTERY MANAGEMENT | Battery Management System (BMS) Control Module | 15 |
| BLOWER | Engine Room Junction Block (Blower Motor Relay) | 40 |
| CHARGER 1 | Charge Port Door Module | 10 |
| CHARGER 2 | ICM Relay Box (Charging Door Lock/Unlock Relay), Central Control Module (CCM) | 10 |
| COOLING FAN | Engine Room Junction Block (Radiator Cooling Fan Relay) | 60 |
| ELECTRICAL WATER PUMP | Electric Water Pump (EWP) | 15 |
| EPCU 1 | Electric Power Control Unit (EPCU) | 15 |
| EPCU 2 | 10 | |
| E-SHIFTER 1 | Engine Room Junction Block (Shift-by-Wire Fuse, Electronic Shift Relay) | 40 |
| E-SHIFTER 3 | Shift Control Unit (SCU) | 10 |
| H/LAMP HI | Headlamp High Beam Relay | 10 |
| HORN | Horn Relay | 15 |
| IEB 1 | Integrated Electronic Brake (IEB) Module, Data Link Connector | 40 |
| IEB 2 | Integrated Electronic Brake (IEB) Module | 40 |
| IEB 3 | Integrated Electronic Brake (IEB) Module, Data Link Connector | 10 |
| IEB 4 | Integrated Electronic Brake (IEB) Module | 40 |
| IG1 | Engine Room Junction Block (PDM IG1 Relay 2, PDM ACC Relay 1) | 40 |
| IG2 | Engine Room Junction Block (PDM IG2 Relay 3) | 40 |
| IG3 1 | Engine Room Junction Block (IG3 Relay 1, IG3 Relay 2) | 15 |
| IG3 2 | Battery Management Unit (BMU), On-Board Charger (OBC), Power Management Unit | 10 |
| IG3 3 | Engine Room Junction Block (Cooling Fan Relay), Electric A/C Compressor, LH/RH 3-Way Coolant Valves | 10 |
| IG3 4 | Active Air Flap (AAF) System, Central Control Module (CCM), Charge Port Door Module, PTC Auxiliary Heater, Safety Switch, A/C Control Module, AVN Head Unit, Instrument Cluster, Smart Power Module (IPGM/IPS) | 10 |
| IG3.5 | Engine Room Junction Block (IG3 Relay 1, IG3 Relay 2) | 20 |
| MAIN | Engine Room Junction Block (IEB 1, IEB 2, CHARGER 1 Fuses), Low-Voltage DC/DC Converter (LDC) | 150 |
| MDPS | Motor Driven Power Steering (MDPS) Module | 80 |
| OBC | On-Board Charger (OBC) | 10 |
| REAR HEATED | Engine Room Junction Block (Rear Window Defogger Relay) | 40 |
In the passenger compartment
The passenger compartment fuse box is located behind an access panel on the driver-side lower dashboard.
Left-hand drive (LHD) models.
Right-hand drive (RHD) models.
Instrument panel fuse box layout.
| Diagram | ||
|---|---|---|
|
||
| Fuse | Protected Circuit / Component | Rating (A) |
| MODULE 5 | Electrochromic Auto-Dimming Mirror, AVN Head Unit, Instrument Panel Switch Module, LH Headlamp, Front Seat Heating & Ventilation Switches | 7.5 |
| MODULE 3 | Brake Light Switch, Body Control Module (BCM) | 7.5 |
| SUNROOF | Sunroof Control Module | 20 |
| TAIL GATE OPEN | Tailgate Latch Release Relay | 10 |
| P / WINDOW LH | LH Power Window Relay, Driver Safety Power Window Module | 25 |
| MULTIMEDIA | Audio/Video Navigation (AVN) Head Unit | 15 |
| P / WINDOW RH | RH Power Window Relay, Passenger Safety Power Window Module | 25 |
| P / SEAT (DRV) | Driver Power Seat Switch, Driver Seat Lumbar Support Switch | 25 |
| P / SEAT (PASS) | Passenger Power Seat Switch | 25 |
| MODULE 4 | LH/RH Blind-Spot Collision Warning Radar, Smart Power Module, Instrument Panel Switch Module, Virtual Engine Sound System (VESS) Speaker, Multi-Function Front Camera | 7.5 |
| PDM 3 | Smart Key Control Module | 7.5 |
| SPARE | Spare | 20 |
| INTERIOR LAMP | Glove Box Lamp, LH/RH Vanity Mirror Lamps, Room Lamp, Overhead Console Lamp, Wireless Smartphone Charger, Luggage Compartment Lamp | 7.5 |
| MEMORY 2 | Virtual Engine Sound System (VESS), Electronic Low-Pressure Refrigerant Valve | 7.5 |
| B/ALARM HORN | Not Used | 10 |
| MEMORY 1 | A/C Control Module, Head-Up Display (HUD), Instrument Cluster, Body Control Module (BCM), Rain Sensor | 10 |
| SPARE | Spare | 20 |
| AMP | Audio Power Amplifier | 30 |
| MODULE 6 | Smart Key Control Module, Body Control Module (BCM) | 7.5 |
| MDPS | Motor Driven Power Steering (MDPS) Module | 7.5 |
| MODULE 1 | Active Air Flap (AAF) System, Switch, Data Link Connector (DLC), ICM Relay Box (Power Folding Mirror Relay) | 7.5 |
| MODULE 7 | Front Seat Ventilation Module, Front Seat Heating Module | 7.5 |
| A / BAG IND | Instrument Cluster (Airbag Indicator), A/C Control Module | 7.5 |
| BRAKE SWITCH | Brake Light Switch, Smart Key Control Module | 7.5 |
| START | Smart Key Control Module, Power Control Module (PCM) | 7.5 |
| CLUSTER | Head-Up Display (HUD), Instrument Cluster | 7.5 |
| DOOR LOCK | Door Lock Relay, Door Unlock Relay, ICM Relay Box (Two-Stage Unlock Relay) | 20 |
| PDM 2 | Engine Start/Stop Button Switch | 7.5 |
| FCA | Forward Collision-Avoidance Assist (FCA) Module | 10 |
| S/HEATER | Front Seat Heating Control Module, Front Seat Ventilation Control Module | 20 |
| SPARE | Spare | 20 |
| A/C | A/C Control Module, Cluster Ionizer | 7.5 |
| PDM 1 | Smart Key Control Module | 15 |
| E-SHIFTER | Shift-by-Wire (SBW) Selector Module, Front Console Switch | 10 |
| AIR BAG | Supplemental Restraint System (SRS) Control Module, Occupant Detection System (ODS) Sensor | 15 |
| IG1 | PCB Block (Circuit Protection: IEB 3, EPCU 2) | 25 |
| MODULE 2 | Wireless Smartphone Charger, Smart Key Control Module, Body Control Module (BCM), Audio/Video Navigation (AVN) Head Unit , 12V Auxiliary Power Outlet No. 1 , Audio Power Amplifier, Power Exterior Mirror Switch | 10 |
| WASHER | Multifunction Switch, Windshield Washer Motor | 15 |
| WIPER (LO / HI) | Windshield Wiper Motor (Low / High Speed) | 10 |
| WIPER RR | Rear Wiper Relay, Rear Wiper Motor | 15 |
| WIPER FRT | Front Wiper Motor, Engine Room Junction Block (Front Wiper Low-Speed Relay) | 25 |
| HEATED MIRROR | Heated Exterior Mirrors, A/C Control Module | 10 |
| POWER OUTLET | 12V Auxiliary Power Outlet No. 2 | 20 |
| SPARE | Spare | 15 |
| HEATED STEERING | Heated Steering Wheel Switch, Body Control Module (BCM) | 15 |
