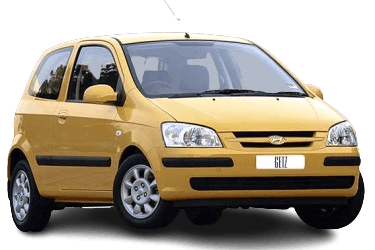

Hyundai Getz subcompact car was produced in 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010 and 2011. During this time, the model has been restyled, although some call it the second generation. In this publication you will find a description of the Hyundai Getz fuses and relays with block diagrams and their locations. Note the fuse responsible for the cigarette lighter.
The design of the blocks and the purpose of the elements in them may differ and depends on the type of engine and the level of equipment of your car. Check the description with the diagrams on the back of the protective cover.
In the passenger compartment
Located under the dashboard on the driver's side behind the protective cover.
| Diagram | |
|---|---|
|
|
| № | Amps / Description |
| 1 | 10A Air conditioner switch, rear window heating switch |
| 2 | 10A Left front lamp side light, left tail lamp |
| 3 | 10A Instrument cluster |
| 4 | 10A Audio system, electric door mirrors switch |
| 5 | 10A Automatic gearbox selector switch, reverse light switch, hazard warning light switch |
| 6 | 10A Right front side light, right rear light, left (right) license plate lamp |
| 7 | 10A Pre excitation resistor. instrument cluster. ECU with a time delay and burglar alarm timer for signaling an unfastened seat belt |
| 8 | 15A Cigarette lighter |
| 9 | 10A Generator, ECU for electric power steering, ECU for engine and transmission (except for 1.1L engine), ECU for engine (1.1L engine), movement speed sensor, automatic transmission selector lever switch |
| 10 | 10A Airbag ECU |
| 11 | 20A Repeat for locking doors, relay for unlocking doors, sunroof control unit, driver's door lock drive |
| 12 | 15A Rear window wiper motor, steering switch unit |
| 13 | 10A starter repeat, burglar alarm relay |
| 14 | Reserve |
| 15 | 10A Daytime running light control unit |
| 16 | 20A Switch for heating the left (right) front seat |
| 17 | 10A Rear window heating switch. ECU engine, electric drive and heating of the outside rearview mirror from the driver's (passenger's) side |
| 18 | 15A Ignition coil, capacitor |
| 19 | 15A Power window relay, brake light switch |
| 20 | 15A Hazard switch, ECU time delay and burglar alarm |
| 21 | 20A Windshield wiper motor, steering switch unit |
| 22 | 10A Rear fog light relay |
| 23 | 10A Fog lamp relay. power window relay. ECU with a time delay and burglar alarm, timer for heating the rear window, electric drive of the left (right) headlight range control, headlight range control switch |
| 24 | 10A Interior blower relay, sunroof control unit |
| 25 | 30A Rear window heating relay, rear window heating timer, ECU with time delay and burglar alarm |
| 26 | 15A Right headlight |
| 27 | 10A Fog lamp relay |
| 28 | 10A Left headlight, instrument cluster |
| 29 | 15A Instrument cluster, rear fog light switch, data line connector, audio system. ECU time delay and burglar alarm. door open warning light sensor, universal test socket, luggage compartment light, interior spotlights, interior courtesy lamp, roof console assembly |
| 30 | Tweezers |
| 31 | Spare |
The fuse number 8, 15A, is responsible for the cigarette lighter.
Relays are mounted on the back of the unit.
Assignment:
K10 - Relay-interrupter of direction indicators and alarm
K11 - Fog lamp relay
K12 - Relay for heating the rear door glass
K13 - Relay lamps side light
K14 - Power window relay
K15 - Rear fog light relay
K16 - The control unit for outdoor lighting when driving in the daytime
Separately in the right steering column switch is located the wiper and washer relay.
In the engine compartment
It is located on the left side of the engine compartment.
Photo - an example of execution.
| Diagram | |
|---|---|
|
|
| № | Relay designation |
| 1 | heater fan relay E 51 |
| 2 | a place under the relay for turning on the fan of the engine cooling system at high speed E 44 |
| 3 | relay for turning on the fan of the engine cooling system at low speed E 43 |
| 4 | starter relay E 41 |
| 5 | a place under the air conditioner relay E 50 |
| 6 | horn relay E 45 |
| 7 | fuel pump relay E 49 |
| 14 | a place under the alarm relay E 47 |
| 30 | power relay of the electronic engine management system E 42 |
| № | Amps / Fuse decoding |
| 8 | 10A A / CON - Air conditioner |
| 9 | 10А HORN - Sound signal |
| 10 | 15A INJ - ECU engine, injectors, camshaft position sensor, crankshaft position sensor, idle speed regulator, canister purge solenoid valve |
| 11 | 50A EPS - Electric power steering |
| 12 | 30A P / WDW - Electric windows |
| 13 | 30A BLW - Interior heater fan |
| 15 | 10 / 15A SPARE - Spare Fuses |
| 16 | 40A ABS. 2 - ABS ECU, connector for air removal |
| 17 | 20A ABS. 1 - ABS ECU, connector for air removal |
| 18 | ALT 120 / 100А - Generator |
| 19 | 10А SNSR - Air conditioning, fuel pump, immobilizer antenna unit, oxygen concentration sensor, fuel pump relay, air conditioning relay |
| 20 | 10A ECU - Fuel pump, ECU fuse |
| 21 | 10A ABS - ABS ECU, bleed connector |
| 22 | 50A BATT - Rear lights, fuses 11, 19, 20, 25, 27, 29 |
| 23 | 30A RAD - Cooling system radiator fan |
| 24 | 20A F / PUMP - Switch for automatic fuel cut-off |
| 25 | 30A ECU - Fuel Pump, Generator, Electronic Control Unit |
| 26 | 30A ING 1 - Ignition switch, starter relay |
| 27 | 30A ING 2 - Ignition lock |
