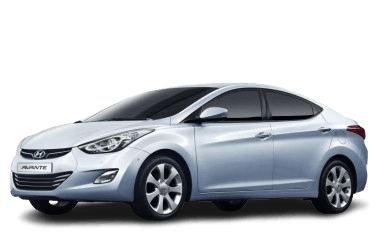

The 5th generation Hyundai Avante was produced in 2010, 2011, 2012, 2013, 2014 and 2015. During this time, the model has been restyled. Shipped worldwide. In some countries it is also known under the names Elantra. In this material you will find a description of the 5th generation Avante fuses and relays with block diagrams and their locations. Let's highlight the fuse responsible for the cigarette lighter.
The current assignment of fuses and relays will be printed on the back of the protective cover. Check the designation of the elements in the blocks.
In the engine compartment
Fuse box located on the left side of the engine compartment.
General view.
| Diagram | |
|---|---|
|
|
| Name | Amps / Description |
| MDPS | 80A EPS control module |
| B + 1 | 60A Distribution block (ARISU 1 (4CH), IPS 1, Fuse - P / WDW LH, P / WDW RH, TRUNK, AMP 1) |
| C / FAN | 40A Cooling Fan Relay (Low), Cooling Fan Relay (High) |
| ABS 1 | 40A ESC Module, Multifunction Diagnostic Connector |
| RR HTD | 40A Seat heating relay |
| BLOWER | 40A Cooling fan relay |
| B + 2 | 60A Distribution block (Horn relay when the turn signal is turned on, ARISU 2 (4CH), IPS (1CH), IPS (2CH), Fuses - P / SEAT DRV, SUNROOF [SUNROOF]) |
| B / UP LP | 10A Electro Chrome Mirror, Audio / Video (A / V) and Navigation Head Unit Module, Rear Lamp Combination (Inner) Left / Right, Stop Lamp Switch, BCM, Instrument Cluster |
| TCU 1 | 15A Vehicle speed sensor, Automatic transmission mode switch |
| ABS3 | 10A ESC System Module, Multi Function Diagnostic Connector |
| ECU3 | 10A Stop Lamp Switch, ECM, Automatic Transmission - PCM |
| WIPER | 10A Rain sensor, ECM, automatic transmission - PCM |
| B + 3 | 50A Distribution block (Fuses - MODULE 1, PDM 1, PDM 2, DR LOCK) |
| EMS | 40A EMS Unit (Engine Control Relay, Fuses - ECU 4, A / CON, F / PUMP) |
| STOP LP | 15A Brake Light Switch, Smart Key System Control Module |
| S / HEATER FRT | 20A Driver and passenger seat heating control module |
| HORN | 15A Horn relay |
| IG2 | 40A Without Smart Key: Ignition Switch, Start 1 Relay, With Smart Key: PDM 4 (IG2) Relay, Start 1 Relay |
| ABS 2 | 30A ESC System Module, Multifunction Diagnostic Connector |
| IG 1 | 40A Without Smart Key: Ignition Switch, With Smart Key: PDM Relay 3 (IG1), PDM Relay 2 (ACC) |
| F / PUMP | 15A Fuel pump relay |
| ECU 4 | 15A PCM (automatic transmission), ECM (manual transmission) |
| A / CON | 10A A / C compressor relay |
| INJECTOR | 10A Fuel Injectors # 1 / # 2 / # 3 / # 4, A / C Compressor Relay, Fuel Pump Relay |
| ECU 2 | 10A PCM (automatic transmission), ECM (manual transmission) |
| IGN COIL1 | 20A Ignition Coils # 1 / # 2 / # 3 / # 4, Capacitor |
| SENSOR 2 | 10A Immobilizer System Module, Camshaft Position Sensor # 1 / # 2 |
| SENSOR 1 | 10A Oxygen excess sensor (Upper / Lower), Valve for closing additional fuel tank, Solenoid valve for intake manifold length adjustment, Oil pressure control valve in the variable valve timing system # 1 / # 2, Solenoid valve for vapor recovery system, System fan relay Engine Cooling (Low), Engine Cooling Fan Relay (High) |
| SPARE | Reserve |
In the passenger compartment
Located under the dashboard behind a protective cover.
General view.
| Diagram | |
|---|---|
|
|
| Name | Amps / Description |
| START | 7.5A Without Smart Key: ICM Relay Box (Alarm Relay), With Smart Key System: Automatic Transmission Mode Switch, ECM, E / R Fuse and Relay Box (Start 1 Relay), Smart Key System Control Module |
| A / BAG | 15A SRS control module, passenger mass classification sensor |
| A / BAG IND | 7.5A Instrument panel |
| MDPS | 7.5A Power steering EPS control module |
| POWER OUTLET | 15A Power outlet (sockets) |
| BCM | 7.5A Smart Key System Control Module, BCM |
| A / CON SW | 7.5A Air conditioning control module |
| MODULE 2 | 7.5A Electro chrome mirror, ESC switch |
| SPARE 1 | Reserve |
| MODULE 4 | 7.5A Rear parking aid sensor Left / Right (Indoor / Outdoor), Air conditioning control module (Climate control), Automatic transmission selector position indicator |
| IG1 | 20A Fuse and relay box E / R (Fuse - TCU 1, ECU 3, ABS 3) |
| PDM3 | 7,5А Smart Key system control module |
| C / LIGHTER | 20A Cigarette lighter |
| MODULE 6 | 10A Outside mirror adjustment switch, Audio, Audio and navigation head unit, Digital clock |
| HTD MIRR | 10A Outside mirror adjustment switch Driver / Passenger, Air conditioning control module |
| MODULE 3 | 7.5A Audio systems, Tire pressure monitoring system module, Digital clock, BCM, Instrument cluster, Heated driver and passenger seats |
| SUNROOF | 15A Roof hatch |
| S / HEATER RR RH | 15A Rear seat heating switch, Right |
| BLOWER | 10A A / C Control Module (Manual Air Conditioner), ECM / PCM, Blower Resistor |
| IOD 1 | 10A Trunk lamp, Left / Right individual lighting lamps, Interior lamp, Overhead console lamp, Ignition switch III. and Open Door Warning Switch (Without Smart Key System) |
| TRUNK | 10A Trunk lid relay |
| MODULE 1 | 7.5A Gearbox switch to Sport mode (AKP), Key solenoid (Without Smart Key system) |
| S / HEATER RR LH | 15A Rear Seat Heating Switch, Left |
| MODULE 7 | 7.5A Smart Key System Control Module, BCM |
| IOD 2 | 20A Audio systems, Head unit A / V and navigation |
| P / WDW RH | 25A Glass servo relay, Right |
| PDM2 | 7.5A Smart Key System Control Module, Start Stop Button Switch |
| WIPER FRT | 25A ICM Fuse / Relay Box (Rain Sensor Relay), Multifunction Switch, Wiper Motor, E / R Fuse / Relay Box (Wiper Relay) |
| MODULE 5 | 7,5A Ionizer (Climate control), Rain sensor, Roof hatch |
| AMP 1 | 25A AMP (amplifier) |
| PDM 1 | 25A Smart Key System Control Module |
| A / CON | 7.5A A / C Control Module, E / R Fuse and Relay Box (Fan Relay) |
| IOD 4 | 10A Tire Pressure Monitoring System Module, BCM, Auto Headlight Photo Sensor, Instrument Cluster, DLC, Junction Block Upgrade Connector, Electro Chrome Mirror, Air Conditioning Control Module, Digital Clock |
| P / WDW LH | 25A Left Glass Servo Relay, Glass Servo Safety System Module |
| DR LOCK | 20A Door Lock Relay, Door Unlock Relay, ICM Fuse and Relay Box (Turn Signal Relay) |
| P / SEAT DRV | 30A Switch for manual adjustment of the driver's seat |
A 20A C / LIGHTER fuse is responsible for the cigarette lighter, and the POWER OUTLET for the additional sockets.
