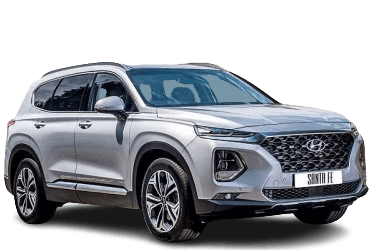

The fourth-generation Hyundai Santa Fe was unveiled in February 2018 in Goyang, South Korea. Compared to its predecessor, the Santa Fe TM is 80 mm longer and 10 mm wider, with a wheelbase extended by 65 mm. Initial powertrain options included the base Theta-II 2.4L GDI (188 hp) gasoline engine and the R2.2 CRDi VGT 2.2L (200 hp) diesel engine. This article provides detailed fuse box diagrams, relay assignments, and circuit layouts for the Hyundai Santa Fe (TM chassis code) for model years 2018, 2019, 2020, 2021, 2022, and 2023.
Below you will find the locations, diagrams, and descriptions for all power distribution panels. Fuses supplying the “Cigarette Lighter” and “Fuel Pump” circuits are highlighted in bold.
In the Engine Compartment
Depending on the engine configuration (gasoline or diesel), one or two fuse panels are located in this compartment.
Main Fuse Box
Depending on the model year, several panel configurations exist.
Type 1
2019–2020 model years. Panel Part Number: 91956-S2020.
| Diagram | ||
|---|---|---|
|
||
| Name | Description | Amps |
| 4WD | All-Wheel Drive (AWD) Control Module | 20 |
| A/C 1 | 2.4L GDI: Air Conditioning (A/C) Compressor Relay | 10 |
| A/C 2 | Air Conditioning (A/C) Control Module | 10 |
| ABS 1 | Electronic Stability Control (ESC) Module | 40 |
| ABS 2 | Electronic Stability Control (ESC) Module | 40 |
| ABS 3 | Electronic Stability Control (ESC) Module | 10 |
| ACC | Integrated Control Unit (ICU) Junction Block (ACC Fuse) | 10 |
| AMS | Battery Monitoring Sensor (AMS) | 10 |
| B/ALARM HORN | Burglar Alarm Horn Relay, Horn Relay | 15 |
| B+1 | ICU Junction Block (IPS 1, IPS 2, IPS 3, IPS 5, IPS 6, IPS 7, long/short-term load latch relay) | 50 |
| B+2 | ICU Junction Block (IPS 8, IPS 10, IPS 11, IPS 12, IPS 13, IPS 14, IPS 15) | 50 |
| B+3 | ICU Junction Block (Fuses: P/WINDOW LH, RR SEAT LH, P/SEAT DRV, P/SEAT PASS) | 50 |
| B+4 | ICU Junction Block (Fuses: MODULE 8, S/HEATER FRT, P/WINDOW RH, SUNROOF) | 50 |
| B+5 | ICU Junction Block (Fuses: DOOR LOCK, IBU 1, IBU 2, BRAKE SWITCH, CHILD LOCK, RR SEAT RH, SUNROOF 2) | 50 |
| BLOWER | Blower Motor Relay | 40 |
| COOLING FAN 2 | Radiator Cooling Fan Relay | 50 |
| ECU 1 | Electronic Stability Control (ESC) Module | 20 |
| ECU 3 | Powertrain Control Module (PCM) | 10 |
| ECU 4 | Powertrain Control Module (PCM) | 15 |
| E-CVVT 1 | Electric Continuously Variable Valve Timing (E-CVVT) Motor / PCM | 20 |
| E-CVVT 2 | Electric Continuously Variable Valve Timing (E-CVVT) Motor / PCM | 20 |
| EPB | Electronic Parking Brake (EPB) / ESC Module | 60 |
| FUEL PUMP | Fuel Pump Relay / Fuel Pump Fuse | 20 |
| HEATED MIRROR | Driver/Passenger heated exterior mirrors, A/C Control Module | 10 |
| HORN | Horn Relay | 15 |
| IG 1 | Power Distribution Module (PDM) IG1 Relay | 40 |
| IG2 | Starter Relay, ICU Junction Block (Fuses: A/C, WASHER, WIPER REAR, MODULE 1, MODULE 2, REAR A/C) | 40 |
| IGN COIL | Ignition Coils (#1, #2, #3, #4) | 20 |
| INVERTER | AC Power Inverter Module | 30 |
| MDPS | Motor-Driven Power Steering (MDPS) Module | 80 |
| OIL PUMP | Electric Oil Pump (EOP) Module | 40 |
| POWER OUTLET 1 | Front 12V Auxiliary Power Outlet | 20 |
| POWER OUTLET 2 | Rear 12V Auxiliary Power Outlet | 20 |
| POWER TAILGATE | Power Tailgate Control Module | 30 |
| PTC HEATER 1 | Sub-Junction Block (PTC Heater Relay 1) | 50 |
| PTC HEATER 2 | Sub-Junction Block (PTC Heater Relay 2) | 50 |
| REAR HEATED | Rear Defroster / Heated Rear Glass Relay | 40 |
| SENSOR 1 | 2.0L T-GDI: Fuel pump relay, recirculation valve (RCV) solenoid, purge control solenoid valve (PCSV), oil control valve (OCV) 2.4L GDI: Fuel pump relay, variable induction system (VIS) solenoid, purge control solenoid valve (PCSV), oil control valve (OCV) |
10 |
| SENSOR 2 | 2.0L T-GDI: Heated Oxygen Sensors (Upstream/Downstream) 2.4L GDI: A/C compressor relay, Heated Oxygen Sensors (Upstream/Downstream) |
10 |
| SENSOR 5 | Canister Close Valve (CCV), Engine Room (E/R) Junction Block (Cooling Fan Relay) | 10 |
| SENSOR 6 | Electric Oil Pump module, Electric Vacuum Pump (2.0L T-GDI) | 15 |
| SENSOR 7 | Smart Cruise Control (SCC) Radar Sensor | 10 |
| TCU 1 | Transmission Control Unit (TCU) / PCM | 15 |
| TCU 2 | Transmission Range Switch (TRS) | 10 |
| TRAILER 3 | Trailer Towing Module / Trailer Lights | 30 |
| VACUUM PUMP | Electric Vacuum Pump | 20 |
| WIPER FRT 1 | Front Wiper Main Relay | 25 |
| WIPER FRT 2 | Front Wiper Low Relay, Front Wiper Motor | 10 |
Type 2
2021–2023 model years. Panel Part Number: 91956-S2020.
| Diagram | ||
|---|---|---|
|
||
| Name | Description | Amps |
| 4WD | All-Wheel Drive (AWD) Control Module | 20 |
| A/C2 | Blower Motor Relay, Front A/C Control Module | 10 |
| ABS 2 | Electronic Stability Control (ESC) Module | 30 |
| ABS 3 | Electronic Stability Control (ESC) Module | 60 |
| AMS | Battery Monitoring Sensor (AMS) | 10 |
| B+1 | ICU Junction Block (IPS 1 SPOC+, IPS 2, IPS 3, IPS 5, IPS 6, IPS 7, long/short-term load latch relays) | 50 |
| B+2 | ICU Junction Block (IPS 8 SPOC+, IPS 10, IPS 11, IPS 13, IPS 14, IPS 15) | 50 |
| B+3 | ICU Junction Block (Fuses: E-SHIFTER 1, P/SEAT DRV, P/SEAT PASS, P/WINDOW LH, RR SEAT LH) | 50 |
| B+4 | ICU Junction Block (Fuses: MODULE 8, SUNROOF 1, AMP, P/WINDOW RH, S/HEATER DRV/PASS) | 50 |
| B+5 | ICU Junction Block (Fuses: DOOR LOCK, IBU 1, IBU 2, BRAKE SWITCH, CHILD LOCK, RR SEAT RH, SUNROOF 2) | 50 |
| B+6 | Printed Circuit Board (PCB) Block (B+) | 60 |
| BLOWER | Blower Motor Relay | 40 |
| COOLING FAN1 | BLDC 600 W: Radiator Cooling Fan Controller | 80 |
| COOLING FAN2 | BLDC 400 W: Radiator Cooling Fan Controller | 60 |
| DOT | Transmission Control Module (TCM) / Dual-Clutch Transmission (DCT) | 60 |
| E-CVVT1 | PCB Block (E-CVVT Relay) | 50 |
| E-CVVT2 | Powertrain Control Module (PCM), PCB Block (E-CVVT Relay) | 20 |
| E-CVVT3 | Powertrain Control Module (PCM), PCB Block (E-CVVT Relay) | 20 |
| EOP2 | 2.5L Turbo (G4KP): Electric Oil Pump | 60 |
| E-SHIFTER 1 | Shift Control Unit (SCU) | 40 |
| E-SHIFTER2 | Shift Control Unit (SCU) | 10 |
| FUEL PUMP | Fuel Pump Relay | 20 |
| HEATED MIRROR | Rear defroster relay, driver/passenger heated exterior mirrors, front A/C control module | 10 |
| IG2 | Starter Relay, PCB Block (PDM IG2 Relay) | 40 |
| INVERTER | AC Power Inverter Module | 40 |
| MDPS | Motor-Driven Power Steering (MDPS) Module | 100 |
| POWER TAIL GATE | Power Tailgate Module | 30 |
| PTC HEATER | PTC Auxiliary Heater Relay | 50 |
| REAR HEATED | Rear Defroster Relay | 40 |
| TRAILER1 | Trailer Towing Module | 30 |
| TRAILER2 | Trailer Towing Module | 30 |
| TRAILER3 | Trailer Towing Module | 30 |
| VACUUM PUMP1 | Electric Vacuum Pump Relay | 20 |
| VACUUM PUMP2 | Electronic Stability Control (ESC) module, Electric Vacuum Pump Relay, Electric Vacuum Pump | 10 |
| PCB Block (Internal Fuses): | ||
| A/C1 | Transmission Control Module (TCM) | 10 |
| ABS4 | Electronic Stability Control (ESC) Module | 10 |
| ACC | Integrated Control Unit (ICU) Junction Block (ACC Fuse) | 20 |
| ECU1 | Powertrain Control Module (PCM) | 15 |
| ECU2 | Powertrain Control Module (PCM) | 20 |
| ECU3 | Powertrain Control Module (PCM) | 10 |
| EOP3 | 2.5L GDI (G4KN): Electric Oil Pump | 10 |
| E-SHIFTER3 | Shift Control Unit (SCU) | 10 |
| FCA | Forward Collision-Avoidance Assist (FCA) Front Radar | 10 |
| HORN | Horn Relay | 15 |
| IG1 | Power Distribution Module (PDM) IG1 Relay | 40 |
| IGN COIL | Ignition Coils (#1, #2, #3, #4) | 20 |
| POWER OUTLET1 | Luggage Compartment Power Outlet / Cigarette Lighter | 20 |
| POWER OUTLET2 | Front 12V Power Outlet / Cigarette Lighter | 20 |
| REAR HEATED2 | Engine Room (E/R) Junction Block (Rear Defroster Relay) | 10 |
| SENSOR1 | Fuel Injectors (#1, #3) | 10 |
| SENSOR2 |
|
10 |
| SENSOR3 | Fuel Injectors (#2, #4) | 20 |
| SENSOR4 | Heated Oxygen Sensors (Upstream/Downstream) | 15 |
| TCU1 | Powertrain Control Module (PCM) | 20 |
| TCU2 | Transmission Control Module (TCM) | 10 |
| WIPER FRT1 | Front Wiper Motor, Front Wiper Low Relay | 30 |
| WIPER2 | Integrated Body Control Unit (IBU), Powertrain Control Module (PCM) | 10 |
Note: Power supplies for the cigarette lighter and 12V auxiliary power sockets are designated as POWER OUTLET on the fuse panel cover.
Auxiliary Fuse Box
Installed on diesel models.
- 1 — PTC auxiliary heater 1;
- 2 — PTC auxiliary heater 2;
- 3 — PTC auxiliary heater 3;
- 4 — Fuel filter heater relay.
In the Passenger Compartment
Located on the lower driver’s side of the dashboard behind the access cover.
Overview of the Hyundai Santa Fe passenger compartment fuse panel.
| Diagram | ||
|---|---|---|
|
||
| Name | Description | Amps |
| MODULE 4 | Data Link Connector (DLC), brake light switch, driver door module | 7.5 |
| AIR BAG 1 | SRS Control Module, Occupant Detection System (ODS) sensor | 15 |
| BRAKE SWITCH | Integrated Body Control Unit (IBU), brake light switch | 7.5 |
| MODULE 9 | Audio system, Audio/Video Navigation (AVN) head unit, instrument cluster, A/C control module, Low-Voltage DC-DC Converter (Audio/AMP), Head-Up Display (HUD), rain sensor, Rear Occupant Alert (ROA) sensor, Integrated Memory System (IMS) driver module, driver door module, power exterior mirrors, power tailgate module | 15 |
| MODULE 10 | Data Link Connector (DLC), left/right Blind-Spot Collision Warning (BCW) sensors, front wireless smartphone charger, rear A/C control module, Electrochromic Mirror (ECM) | 10 |
| AIR BAG IND | A/C control module, instrument cluster (Airbag Indicator) | 10 |
| IBU 1 | Integrated Body Control Unit (IBU) | 7.5 |
| MODULE 2 | Surround View Monitor (SVM), AC power inverter output, AC power inverter, left/right rear seat heaters, front seat climate control module, front seat heater control module | 7.5 |
| MODULE 8 | Hazard switch, key solenoid, driver/passenger Smart Key exterior door handles | 7.5 |
| S / HEATER FRT | Front seat climate control module, front seat heater control module | 20 |
| AIR BAG 2 | SRS Control Module | 15 |
| MODULE 5 | Lane Departure Warning (LDW) module, hazard switch, IBU, center console switch panel, automatic transmission shift indicator, AWD ECU, Drive Mode switch | 7.5 |
| IBU 2 | Integrated Body Control Unit (IBU), ignition switch | 15 |
| SUNROOF 2 | Panoramic sunroof module | 20 |
| MODULE 1 | Integrated Body Control Unit (IBU) | 7.5 |
| P / WINDOW RH | Front passenger power window module, front passenger power window switch, rear right power window switch | 25 |
| ISG | Low-Voltage DC-DC Converter (AMP), instrument cluster, A/C control module, Audio/Video Navigation (AVN) head unit, Head-Up Display (HUD) | 15 |
| RR SEAT (LH) | Left rear heated seat, left rear seat folding switch | 25 |
| CLUSTER | Instrument cluster, Head-Up Display (HUD) | 7.5 |
| MDPS | Motor-Driven Power Steering (MDPS) unit | 10 |
| A / C | Engine Room (E/R) junction box (cooling fan relay), Sub-Junction Block (PTC heater 1/2 relay), A/C control module, cluster ionizer | 7.5 |
| CHILD LOCK | ICM Relay Box (Child Safety Lock/Unlock Relay) | 15 |
| DOOR LOCK | Door lock relay, door unlock relay, tailgate unlock relay, 2-stage unlock relay | 20 |
| REAR A / C | Rear A/C control module, rear blower motor, main A/C control module | 10 |
| SUNROOF 1 | Panoramic sunroof module | 20 |
| P / WINDOW LH | Driver power window module, rear left power window switch | 25 |
| MODULE 3 | Integrated Body Control Unit (IBU) | 7.5 |
| MODULE 6 | Audio system, Audio/Video Navigation (AVN) head unit, Low-Voltage DC-DC Converter (Audio/AMP), A/C control module, Electrochromic Mirror (ECM), lower crash pad center switch, driver IMS control module, left/right rear seat heaters, front seat climate control module, front seat heater control module | 7.5 |
| WASHER | Multifunction switch (Windshield Washer) | 15 |
| RR SEAT (RH) | Right rear heated seat, right rear seat folding switch | 25 |
| WIPER (REAR) | Rear wiper relay, rear wiper motor | 15 |
| AMP | Audio Amplifier, Low-Voltage DC-DC Converter (AMP) | 25 |
| ACC | Surround View Monitor (SVM), audio amplifier, IBU, front wireless smartphone charger, front USB charger, Low-Voltage DC-DC Converter (Audio/AMP), audio system, Audio/Video Navigation (AVN) head unit, left/right rear USB chargers | 7.5 |
| P / SEAT (PASS) | Front passenger power seat switch | 30 |
| P / SEAT (DRV) | Integrated Memory System (IMS) driver module, driver power seat switch | 30 |
