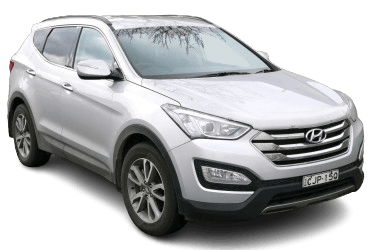

The 3rd generation Hyundai Santa Fe was produced in 2012, 2013, 2014, 2015, 2016, 2017 and 2018 and has shipped worldwide. During this time, the model has been restyled. Both 5 and 7 seater models were produced. In this article, you will find a description of fuses and relays of the 3rd generation Santa Fe with block diagrams and their locations. Separately, we highlight the fuse responsible for the cigarette lighter.
The design of the units may differ and depends on the year of manufacture, the level of equipment and the region of delivery. The current diagrams for your car will be printed on the back of the protective cover. Check the appointment!
In the passenger compartment
Fuse box located under the dashboard on the driver's side.
General view.
| Diagram | |
|---|---|
|
|
| Amps / Name | Desription |
| 10A PILLOW SAFETY | Instrument cluster |
| 10A PILLOW SAFETY | SRS ECU, A / C ECU |
| 7,5A MODULE 5 | Rain sensor, sunroof, transponder key ECU, BCM, park assist, air conditioning, inverter module, ICM relay box (left / right turn signal relay, rear fan relay), rear left / right seat heater, seat CCS control unit driver / passenger, driver / passenger seat heating module |
| 7,5A MODULE 1 | Sport mode switch, key lock electromagnet, console switch (left / right), front console switch, left / right rear door electric glass switch |
| 10A REAR Fog lamps | ICM relay box (rear fog lamp relay) |
| 10A MEMORY 2 | ВСМ, tire pressure monitoring module, driver IMS unit, driver / passenger door module, automatic lighting and photocell, diagnostic socket, air conditioning ECU, instrument cluster |
| 7.5A SMART KEY 2 | Electronic control unit key, immobilizer module |
| 10A MODULE 3 | BCM, instrument cluster, tire pressure monitoring module, parking aid control unit, electro chrome rearview mirror, lane departure warning module, steering wheel angle sensor, air conditioning ECU, audio system, audio-visual head unit with navigation, 4WD ECU, automatic transmission position indicator, rear parking aid left / right, rear seat heater left / right, driver / passenger seat heating module, rear parking aid (center) left / right, driver's seat climate control module / Passenger, Driver IMS Module, Console Switch (L / R), Rear Console Switch, Driver / Passenger Door Module, Electric Parking Brake Module |
| 10A SMART KEY 4 | Start and stop button, immobilizer module |
| 15A INTERIOR LIGHTING | Luggage compartment light, sun lamp visor (left / right, st.), ceiling console light, central interior light, left / right individual illumination lamp |
| 15A MULTIMEDIA | Audio system, audio-visual head unit with navigation, digital clock |
| 7.5A MDPS | MDPS block |
| 15A HEATED STEERING WHEEL | Steering wheel switch |
| 10A MEMORY 1 | RF receiver, ignition switch illumination and door sensor |
| 7.5A START | Without IMMOB. and email key: Relay box ICM (alarm relay) With immob. / email key: ECM / RSM, automatic transmission range switch, electronic key ECU, engine compartment fuse and relay box (relay 2) |
| 10A MODULE 2 | Adaptive headlight range control, dash panel switch, active bonnet lift ECU, glow plug ECU (diesel engine), multifunction diagnostic socket, left / right headlight, left / right headlight range control drive, automatic headlight range control unit, stop switch -signal, fuel filter water sensor (diesel engine), diesel unit (relay 1 (diesel engine) |
| 10A TURN INDICATOR | ICM Relay Box (Left / Right Turn Signal Relay) |
| 20A UPPER HATCH 2 | Roof hatch |
| 15A REAR SEAT HEATER | Heated left / right rear seat |
| 20A IGNITION | Engine compartment fuse and relay box (fuses - F35, F36, F37, F38) |
| 7,5A AIR CONDITIONING 1 | Relay and fuse box M / O (relay 4/14), air conditioning ECU, ionizer on the instrument cluster, diesel unit (relay 3/4) |
| 15A REAR WINDOW CLEANER | Rear wiper relay, rear wiper motor, multifunction switch |
| 25A SMART KEY 1 | Electronic control unit keys |
| 20A FRONT SEAT HEATER | Driver / passenger seat CCS control unit, driver / passenger seat heater control unit |
| 7,5A AIR CONDITIONER 2 | Air conditioning ECU |
| 20A Cigarette lighter | Front power outlet and cigarette lighter, luggage compartment power outlet |
| 15A WINDSHIELD SCREEN CLEANER | Multifunction switch, under-hood fuse and relay box (relay 9/11) |
| 20A REAR FAN | ICM relay box (rear fan relay) |
| 25A RH power windows | Driver / passenger door lift module with anti-pinch protection, driver / passenger door module, rear right door lift switch, rear right door lift glass module with anti-pinch protection |
| 10A REAR WINDOW HEATER | Air conditioning ECU |
| 7,5A BRAKE SWITCH | Electronic control unit key, brake light switch |
| 20A UPPER SUNCH 1 | Top hatch |
| 25A ELECTRIC GLASS LIFT, LH | Driver / passenger door lift module with anti-pinch protection, driver / passenger door module, rear right door lift switch, rear right door lift glass module with anti-pinch protection |
| 15A HATCH COVER FUEL FILLER | Manhole cover switch fuel filler neck |
| 7.5A SMART KEY 3 | Electronic control unit keys |
| 15A STOP SIGNAL | Brake light ECU |
| 20A PASSENGER SEAT | Passenger seat manual switch |
| 30A AMPLIFIER | Amplifier |
| 10A MODULE 4 | Audio system, audiovisual head unit with navigation, parking assistance system, digital clock, high speed rail, ceiling console light, electric outside mirror switch, engine compartment relay and fuse box (relay 1) |
| 20A DOOR LOCK | Door Lock / Unlock Relay, Tailgate Relay, ICM Relay Box (Deadlock Relay) |
| 30A ELECTRIC DRIVER SEAT | Driver IMS Module, Driver Seat Manual Switch, Driver Seat Lumbar Support Switch |
In the engine compartment
Main fuse box
Located on the left side of the engine compartment.
| Diagram | |
|---|---|
|
|
| Name | Amps / Description |
| MDPS | 80A MDPS unit |
| B + 2 | 60A Intelligent junction box (IPS 1 (4CH), IPS 2 (1CH), IPS 5 (1CH), fuse: F31 / F36 / F41 / F45) |
| FAN | 40A Relay 4 (fan relay) |
| REAR HEATER | 40A Relay 12 (rear window defogger relay) |
| ABS1 | 40A ABS ECU, ESC ECU, multifunction diagnostic socket |
| ABS2 | 40A ABS control unit, ESC control unit |
| COOLING FAN | 60A Except Europe - relay 6 (cooling fan relay (low)), relay 10 (cooling fan relay (high)) |
| B + 3 | 60A Intelligent junction box (fuses: F4 / F5 / F10 / F21 / F26, leakage current interrupter |
| B + 4 | 50A Intelligent junction box (IPS 3 (4CH), IPS 4 (2CH), IPS 6 (2CH), fuse: F35 / F38 / F40 / F44) |
| EMS | 40A EMS unit (engine management system) |
| COOLING FAN | 50A Except Europe - relay 6 (cooling fan relay (low)), relay 10 (cooling fan relay (high)) |
| ZAZH1 | 40A Ignition switch (without an electronic key), relay 7/8 (relay ACC / ZAZH1, with an electronic key) |
| ZAZH2 | 40A Ignition switch (without electronic key), relay 2 (starter relay) / relay 9 (ZAZh2 relay) |
| Trailer | 30A Trailer light and power socket |
| B + 1 | 50A Intelligent Junction Box (fuses: F22 / F27 / F32 / F37 / F42) |
| AC INVERTER | 30A AC Inverter Module |
| SIREN | 15A Relay 13 (siren relay) |
| ACTIVE HOOD LIFT, LEFT | 30A Active hood lift control module |
| ACTIVE HOOD LIFT, RH | |
| EPB1 | 15A Electric parking brake module |
| EPB2 | |
| WINDSHIELD HEATER | 15A Relay 3 (windscreen heater relay) |
| HEADLIGHT WASHER | 20A Relay 14 (headlight washer relay) |
| SOCKET | 25A Relay 1 (power socket relay) |
| 4WD | 20A ECM full drive |
| AMS | 10A Battery charge sensor (AMS: alternator management system) |
| TRAILER 2 | 15A Trailer light and power socket |
| TRAILER 1 | 15A Trailer light and power socket |
| GLASS CLEANER | 10А ВСМ, RSM / EBUD |
| WINDSHIELD CLEANER | 25A Relay 5 (wiper relay (low)), windshield wiper motor |
| REVERSE LAMP | 10A manual transmission - reversing light switch. Automatic transmission - rear combination lamp (input) (left / right), electrochromic mirror, trailer lamp and power outlet, head audio-visual device with navigation |
| ABS 3 | 7.5A ABS control unit, ESC control unit |
| SENSOR 5 | 7.5A RSM / ECM, MAF sensor |
| BUT | 15A BUT (D4HA), automatic transmission range switch |
| FUEL PUMP | 15A Fuel pump relay |
| ECU 1 | 15A G4KE / G4KJ / G6DF: PCM D4HA / D4HB (VGT, standard engine block): BUT (automatic transmission) |
| ECU 2 | 10A D4HA / D4HB: Electronic VGT actuator |
| SENSOR 3 | 10A G4KE: Injector 1/2/3/4 G6DF: PCM, injector 1/2/3/4/5/6, fuel pump relay D4HA / D4HB (VGT, standard engine block): oxygen sensor, brake light switch D4HA (VGT, low power engine block): Oxygen sensor |
| IGNITION COIL | 20A G4KE / G4KJ: Capacitor, ignition coil 1, 2, 3, 4 G6DF: Condenser 1/2, ignition coil 1/2/3/4/5/6 ECM |
| SENSOR 2 | 10A G4KE / G4KJ: canister purge control solenoid valve, camshaft position sensor 1/2, intake manifold solenoid valve with variable geometry, crankshaft position sensor, oil regulator 1/2, fuel pump relay |
| SENSOR 1 | 15A G4KE / G4KJ: Oxygen sensor (front / rear), engine compartment fuse and relay box (relay 6/10) G6DF: PCM, oxygen sensor 1/2/3/4, engine compartment fuse and relay box (relay 6/10 ) D4HA / D4HB (VGT, standard engine block): Oil level sensor, fuel pressure regulator, fuel rail pressure regulator, D4HA (VGT, low power engine block): Oil level sensor, fuel pressure regulator, camshaft position sensor, regulator fuel rail pressure |
| SENSOR 4 | 20A G4KE / G4KJ: PCM |
| SECURITY. SIGNAL | 10A Alarm siren relay |
Additional block
Installed on diesel engines.
