Fuses Jaguar E-Pace (X540; 2017–2024)

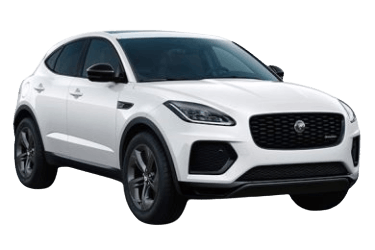

The E-Pace (chassis code X540) is a compact crossover SUV produced by British manufacturer Jaguar. It was the brand's second SUV (after the F-Pace) and the first to feature a transverse engine layout. It was first presented on July 13, 2017, in London. In this article, we take a detailed look at the fuse box diagrams for first-generation Jaguar E-Pace models across the 2017, 2018, 2019, 2020, 2021, and 2022 model years.

Here you will find the locations and diagrams of the power distribution boxes. Fuses responsible for the “Cigarette Lighter” and “Fuel Pump” circuits are highlighted in bold.

Engine Compartment

To access the fuse box, remove the two plastic fasteners securing the air intake duct. Pull the intake duct upward to release it from the air cleaner assembly, then disengage the retaining tabs on the fuse box cover.

Diagram
No.	Description	Amperage
1	Engine Control Module (ECM)	30 A
2	Electrical Power Management System	5 A
3	Electric Power-Assisted Steering (EPAS)	80 A
	Engine Management System (EMS)
4	Glow Plugs (diesel models only)	60 A
5	Engine Cooling Fan	100 A
6	Engine Management System (EMS)	15 A
7		15 A
8		15 A
9		10 A
10	Fuel Pump Fuse #1	5 A
11	Engine Management System (EMS)	10 A
12		10 A
13	Spare	-
14	Engine Cooling Fan	10 A
	Engine Management System (EMS)
15	Engine Management System (EMS)	40 A
16	Auxiliary Heater Module	100 A
17	Passenger Compartment Fuse Box	60 A
18		60 A
19	Luggage Compartment Fuse Box	60 A
20		60 A
21	Electrical Power Management System	60 A
22	Front Windscreen Wipers	30 A
23	Passenger Compartment Fuse Box	40 A
24	Starter Motor (diesel automatic models only)	40 A
25	Anti-Lock Braking System (ABS)	40 A
26		40 A
27	Passenger Compartment Fuse Box	40 A
28	HVAC Blower Motor	40 A
29	Electric Trailer Brake Controller (Australia only)	30 A
30	Spare	15 A
31	Horn	15 A
32	Spare	10 A
33	Horn	5 A
	Heated Windscreen
	Fuel Pump Fuse #2
34	Left-Hand Heated Windscreen	40 A
35	Right-Hand Heated Windscreen	40 A
36	Engine Management System (EMS)	5 A
	Air Conditioning (A/C) System
37	Fuel Pump Fuse #2	20 A
38	Transmission Control Module (TCM)	15 A
39	Front Fog Lamps	10 A
40	Right-Hand Headlamp	20 A
41	Left-Hand Headlamp	20 A
42	Spare	-
43	Spare	-
44	Spare	-
45	Spare	-

Passenger Compartment

Remove the lower access panel beneath the dashboard for access.

General view of the passenger compartment fuse box.

Diagram
No.	Description	Amperage
1	Front Passenger Seat Module	30 A
2	Driver Seat Module	30 A
3	Front Passenger Door Module	25 A
4	Driver Door Module	25 A
5	Keyless Entry System Module	5 A
6	Spare	-
7	Spare	-
8	Spare	-
9	Tyre Pressure Monitoring System (TPMS)	5 A
10	Battery Backup Sounder	5 A
11	Instrument Cluster	5 A
12	Fuel System Control Module	20 A
13	Rear Climate / Seat Controls	5 A
14	Engine Immobiliser	5 A
15	Steering Column Module	5 A
16	Keyless Entry Module	20 A
17	Brake Pedal Switch	5 A
18	Panoramic Roof Sunblind	20 A
19	Front Passenger Heated / Climate Seat	20 A
20	Interior Rearview Mirror	5 A
	Surround Camera System
21	Blind Spot Monitoring System	5 A
22	Surround Camera System	5 A
23	Spare	-
24	Spare	-
25	Instrument Cluster	10 A
26	Cigarette Lighter Fuse	20 A
27	Spare	-
28	Head-Up Display (HUD) & Cooling Fan	10 A
29	Adaptive Cruise Control (ACC) System	5 A
30	Driver Heated / Climate Seat Module	20 A
31	Powered Tailgate Module	5 A
32	Driver Door Module	5 A
33	Audio System Amplifier	10 A
34	Infotainment System (InControl)	15 A
35		15 A
36	Audio / Video Output Socket	10 A
37	Seat Memory Controls	15 A
38	Center Console Auxiliary Power Socket	20 A
39	Spare	-
40	Spare	-
41	Heated Steering Wheel	10 A
42	Steering Column Switch Module	5 A
43	Heating & Ventilation System (HVAC)	20 A
44	Spare	-
45	Body Control Module (BCM)	40 A
46	Spare	-
47	Body Control Module (BCM)	40 A
48	Spare	-
49	Infotainment Audio Amplifier	40 A
50	Audio Amplifier Module	20 A

Luggage Compartment

Remove the access panel on the left side of the luggage compartment.


General view of the luggage compartment fuse box.

Diagram
No.	Description	Amperage
1	Rear Window Wiper	15 A
2	Deployable Side Steps	20 A
3	Telematics Control Module	5 A
4	Fuel-Fired Auxiliary Heater (FBH)	5 A
5	Fuel Pump	25 A
6	Powered Tailgate Module	30 A
7	Spare	5 A
8	Spare	-
9	Auxiliary Battery Spare	5 A
10	Spare	-
11	Rear Right Door Module	25 A
12	Trailer Control Module	20 A
13	All-Wheel Drive (AWD) Control Module	5 A
14	Rear Left Door Module	25 A
15	Spare	-
16	Spare	-
17	Spare	-
18	Spare	-
19	Driveline Control Module	30 A
20	Spare	-
21	Luggage Compartment Auxiliary Power Socket	20 A
22	Spare	-
23	Spare	-
24	Wade Sensing Module	5 A
25	Spare	-
26	Rear Heated Seat Module	20 A
27	Power Windows	5 A
28	Diagnostic Socket (OBD-II)	5 A
29	Spare	-
30	Spare	-
31	Spare	-
32	Spare	-
33	Trailer Electrical Socket	20 A
34	Chassis Control Module (CCM)	10 A
35	Driveline Control Module	30 A
36	Fuel Pump	20 A
37	Spare	-
38	Cooling Fan	5 A
39	Rear Control Module	20 A
40	USB Charging Socket	10 A
41	Rear Right Heated Seat	20 A
42	Rear Console Auxiliary Power Socket	20 A
43	Spare	-
44	Heated Rear Screen	30 A
45	Spare	-
46	Spare	-
47	Driveline Control Module	30 A
48	Deployable / Removable Towbar Module	30 A
49	Spare	-
50	Auxiliary Heater Module	25 A
