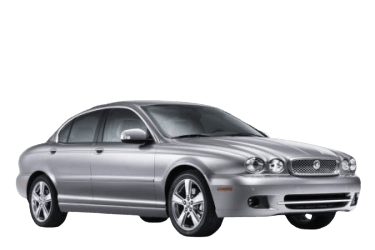

The X-Type is a compact executive car produced between 2001 and 2009 by British automaker Jaguar Cars. As the smallest model in the lineup, it was manufactured in saloon (sedan) and estate (station wagon) body styles and marked the company’s first mass-produced estate car. This guide details the fuse box diagrams and circuit assignments for the first-generation Jaguar X-Type (chassis code X400), covering model years 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, and 2009.
Below are the locations, diagrams, and fuse assignment tables for the power distribution boxes. Fuses responsible for the “Cigarette Lighter” and “Fuel Pump” are highlighted in bold.
Passenger Compartment Fuse Box
Located under the dashboard on the driver’s side.
2004–2009 Model Years
Jaguar X-Type (2004–2009) passenger compartment fuse box diagram.
|
||
| No. | Description | Rating |
| R1 | Power folding mirror module | |
| R2 | Accessory relay | |
| R3 | Estate: Rear wiper motor | |
| R4 | Blower motor | |
| R5 | Passenger junction fuse box ignition supply | |
| R6 | Heated rear screen | |
| R7 | Throttle motor (2.5L, 3.0L) (Non-serviceable PCB) | |
| Fuel pump relay (2.0L) (Non-serviceable PCB) | ||
| R8 | Unused | |
| R9 | Reverse lamps (Non-serviceable PCB) | |
| R10 | Battery saver (Non-serviceable PCB) | |
| F1 | Unused | - |
| F2 | Instrument cluster, electrochromic mirror, reverse light switch, reverse lamps | 10 A |
| F3 | Passenger seat power motors | 30 A |
| F4 | Auxiliary power connectors | 20 A |
| F5 | Estate: Rear wiper motor | 20 A |
| F6 | Unused | - |
| F7 | On-Board Diagnostics (OBD II), heated front seat modules, rain sensor module, Jaguar Voice | 10 A |
| F8 | Heated front seat modules | 20 A |
| F9 | Driver seat memory module | 10 A |
| F10 | Sunroof module, satellite radio (SRX) antenna | 15 A |
| F11 | Left power windows (front and rear) | 20 A |
| F12 | Vehicle Information and Communication System (VICS - Japan), Jaguar Voice | 10 A |
| F13 | Unused | - |
| F14 | Heated rear screen | 30 A |
| F15 | Heated exterior mirrors | 10 A |
| F16 | Driver seat power motors | 30 A |
| F17 | Fuel pump fuse | 20 A |
| F18 | Estate: Rear 12V auxiliary power outlet | 15 A |
| F19 | Trailer tow module, rear auxiliary power outlet (Estate only) | 30 A |
| F20 | Premium ICE (in-car entertainment) amplifier | 30 A |
| F21 | Right power windows (front and rear) | 20 A |
| F22 | Central door locking module | 15 A |
| F23 | Estate: Rear window washer pump | 20 A |
| F24 | Windscreen washer pump | 20 A |
| F25 | On-Board Diagnostics (OBD II) | 5 A |
| F26 | Manual transmission cruise control switch, transmission rotary switch | 10 A |
| F27 | Touchscreen display module | 5 A |
| F28 | Front and rear auxiliary power sockets | 15 A |
| F29 | Rear fog lamps | 7.5 A |
| F30 | In-car telephone, Portable Support Equipment (PSE) module | 5 A |
| F31 | Ignition switch feed | 15 A |
| F32 | On-Board Diagnostics (OBD II) | 5 A |
| F33 | Parking assist module | 5 A |
| F34 | Reverse light switch | 10 A |
| F35 | Headlight leveling control module | 15 A |
| F36 | Throttle motor relay (2.5L, 3.0L) / Fuel pump (2.0L petrol) | 20 A |
| F37 | Climate control blower motor | 30 A |
| F38 | Master lighting switch | 15 A |
| F39 | High-Intensity Discharge (HID) module, climate control module (ECU), blower motor relay coil | 10 A |
| F40 | Sunroof module, electrochromic mirror, power window switches and motors | 5 A |
| F41 | Passenger airbag indicator light, seat weight occupancy sensor | 5 A |
| F42 | Power steering control module | 5 A |
| F43 | Instrument cluster, telematics display, audio head unit, antenna module, VICS (Japan), navigation system, parking assist module, Jaguar Voice, in-car telephone, accessory relay coil | 10 A |
| F44 | Navigation system ECU, CD changer, audio head unit | 15 A |
| F45 | Climate control ECU | 10 A |
| F46 | Power exterior mirrors | 7.5 A |
| F47 | Left parking lights | 7.5 A |
| F48 | Right parking lights | 7.5 A |
| F49 | Climate control ECU, interior courtesy lights, overhead console, intrusion sensor | 10 A |
| F50 | Transmission Control Module (TCM) | 5 A |
| F51 | Manual transmission cruise control switch, brake pedal switch | 7.5 A |
| F52 | Cigarette lighter fuse | 15 A |
| F53 | Airbag control module (ignition supply) | 10 A |
| F54 | Instrument cluster (ignition supply) | 5 A |
| F55 | License plate lights, glove box light, instrument cluster backlighting | 5 A |
| F56 | Unused | - |
2001–2003 Model Years
Jaguar X-Type (2001–2003) passenger compartment fuse box diagram.
|
||
| No. | Description | Rating |
| R15 | Main beam / front fog lamps | 20 A |
| R16 | Unused | 20 A |
| R17 | Reverse lamps | 20 A |
| R18 | Ignition relay | 70 A |
| R19 | Heated rear window relay | 40 A |
| R20 | Blower motor relay | 40 A |
| R21 | Battery saver relay | 20 A |
| F60 | Left power windows | 20 A |
| F61 | Right power windows | 20 A |
| F62 | 2001: Rear fog lamps | 10 A |
| 2002–2003: Rear fog lamps | 7.5 A | |
| F63 | 2001: Right side: front side lamps, side repeater lamps, tail lamps | 10 A |
| 2002–2003: Right side: front side lamps, side repeater lamps, tail lamps | 7.5 A | |
| F64 | 2001: Left side: front side lamps, side repeater lamps, tail lamps | 10 A |
| 2002–2003: Left side: front side lamps, side repeater lamps, tail lamps | 7.5 A | |
| F65 | Unused | - |
| F66 | Left power seat switches, seat heater module, lumbar support pump (2002–2003) | 30 A |
| F67 | Battery-backed sounder, transit relay, HID/dipped beam relay, auxiliary vacuum pump module, Transmission Control Module (TCM) (2002–2003) | 5 A |
| F68 | Cigarette lighter fuse | 15 A |
| F69 | Telematics display (2002–2003), audio head unit, antenna module, navigation module, VICS (Japan), tuner (2001), voice control module (2001–2002), parking assist module, premium audio amplifier, handset, telephone power module, instrument cluster, Passive Anti-Theft System (PATS) module | 10 A |
| F70 | Right power seat switches, seat heater module, lumbar support pump (2002–2003) | 30 A |
| F71 | VICS (Japan), voice control module, telephone transceiver, telephone handset | 15 A |
| F72 | Audio head unit, CD player/changer, navigation control module, OBD II diagnostic connector | 15 A |
| F73 | Sunroof control module | 15 A |
| F74 | Instrument cluster, Premium ICE amplifier | 15 A |
| F75 | 2001: Mirror folding module, backup power buzzer, air conditioner ECU | 10 A |
| 2002–2003: Mirror folding module, backup power buzzer, air conditioner ECU | 7.5 A | |
| F76 | Unused | - |
| F77 | 2001: Windscreen washer pump, rain sensor | 10 A |
| 2002–2003: Left and right heated seat modules | 7.5 A | |
| F78 | Telephone power supply, Jaguar Telematics module (2001–2002) | 5 A |
| F79 | Reverse lamps, reverse light switch, reverse parking assist module, electrochromic mirror, instrument cluster | 10 A |
| F80 | 2001: Gearshift interlock, heater switch, OBD II connector, cooling fan relay | 10 A |
| 2002–2003: Gearshift interlock, heater switch, OBD II connector, cooling fan relay | 7.5 A | |
| F81 |
|
20 A |
| F82 | 2001: Manual transmission reverse lights, power steering, alternator, TCM | 20 A |
| 2002–2003: Speed-proportional power steering, alternator; (Manual transmission only: reverse lamps, reverse light switch, electrochromic mirror, instrument cluster) | 10 A | |
| F83 | 2001: Left and right heated seat modules | 10 A |
| F84 | Instrument cluster, passenger airbag indicator light, passenger seat occupancy sensor | 5 A |
| F85 | 2001: Right main beam lamp | 10 A |
| 2002–2003: Right main beam lamp | 7.5 A | |
| F86 | 2001: Left main beam lamp | 10 A |
| 2002–2003: Left main beam lamp | 7.5 A | |
| F87 | Front fog lamps, master lighting switch | 15 A |
| F88 | Unused | - |
| F89 | Unused | - |
| F90 | 2001: Brake lights, cruise control switch | 15 A |
| 2002–2003: Brake lights, cruise control switch | 7.5 A | |
| F91 | Sunroof module, electrochromic mirror, power windows, power exterior mirrors (2002–2003) | 10 A |
| F92 | Manual transmission cruise control switch, ignition coils, automatic transmission gear selector switch | 10 A |
| F93 | Windscreen wiper motor | 30 A |
| F94 | High-Intensity Discharge (HID) module | 20 A |
| F95 | SRS airbag control module | 10 A |
| F96 | 2001: Anti-Lock Braking System (ABS) | 10 A |
| 2002–2003: Anti-Lock Braking System (ABS) | 7.5 A | |
| F97 | 2001: Glove box light, instrument cluster backlighting, license plate lights | 10 A |
| 2002–2003: Glove box light, instrument cluster backlighting, license plate lights | 7.5 A | |
| F98 | Heated exterior mirrors | 10 A |
| F99 | Luggage compartment lamps, footwell lamps, puddle lamps, interior courtesy lighting, climate control unit, overhead console | 10 A |
Engine Compartment Fuse Box
Located on the driver’s side of the engine bay, beneath the protective cover.
2004–2009 Model Years
Jaguar X-Type (2004–2009) engine compartment fuse box diagram.
|
||
| No. | Description | Rating |
| R1 | Main beam / front fog lamps | |
| R2 | Horn relay | |
| R3 | A/C compressor clutch relay | |
| R4 | Windscreen wiper motor relay | |
| R5 | Power distribution relay | |
| R6 | Heated windscreen relay | |
| R7 | Engine Management System (EMS) relay | |
| R8 | Headlight powerwash pump relay | |
| R9 | Unused | |
| R10 | Glow plug relay | |
| R11 | Dipped beam relay | |
| R12 | Starter motor relay (Non-serviceable PCB) | |
| R13 | Auxiliary ignition relay (Non-serviceable PCB) | |
| R14 | Unused (Non-serviceable PCB) | |
| R15 | Auxiliary heater relay 1 (Non-serviceable PCB) | |
| F1 | Right main beam | 10 A |
| F2 | Front fog lamps, master lighting switch | 15 A |
| F3 | Horns (diesel engine) | 20 A |
| F4 | Left main beam | 10 A |
| F5 | A/C compressor clutch | 10 A |
| F6 | Alternator (petrol engine) | 7.5 A |
| F7 | Fuel heater relay coil (diesel engine) | 5 A |
| F8 | Windscreen wiper switch | 30 A |
| F9 | Windscreen wiper switch, washer pump, wiper motor | 30 A |
| F10 | Ignition coils (petrol engine) | 15 A |
| F11 | Transmission Control Module (TCM) | 15 A |
| F12 | Auxiliary heater relay coil (diesel engine) | 7.5 A |
| F13 | Traction Control System (2004–2007), Anti-Lock Braking System (ABS), Dynamic Stability Control (DSC) | 5 A |
| F14 | Heated windscreen (left side) | 30 A |
| F15 | Heated windscreen (right side) | 30 A |
| F16 | Radiator fan speed control module | 5 A |
| F17 | Fuel injectors (petrol) | 10 A |
| Exhaust Gas Recirculation (EGR), variable-geometry turbocharger actuator (diesel) | 10 A | |
| F18 | EVAP canister purge valve, Mass Air Flow (MAF) sensor, intake manifold tuning valve, canister close valve, vacuum module (petrol) | 10 A |
| Cruise control module (2.0L petrol engine) | ||
| Glow plug relay coil (diesel engine) | ||
| F19 | Engine Control Module (ECM) (petrol) | 10 A |
| Throttle motor relay (2.5L, 3.0L) | ||
| Fuel pump relay (2.0L petrol) | ||
| F20 | Heated Oxygen Sensors (HO2S) bank B (petrol) | 30 A |
| Intake manifold tuning valve (diesel) | 7.5 A | |
| F21 | Heated Oxygen Sensors (HO2S) bank A (petrol) | 30 A |
| Mass Air Flow (MAF) sensor, Engine Control Module (ECM) (diesel) | 15 A | |
| F22 | Glow plugs (diesel engine) | 60 A |
| F23 | Unused | - |
| F24 | Headlight powerwash pump | 30 A |
| F25 | Unused | - |
| F26 | Unused | - |
| F27 | Transit relay, vacuum module, battery sensing line | 15 A |
| F28 | Unused | - |
| F29 | Left dipped beam, master light switch (auto lamps), headlight leveling, instrument cluster | 20 A |
| Left dipped beam, master light switch (auto lamps), headlight leveling, instrument cluster (diesel models without HID headlights) | 10 A | |
| F30 | Right dipped beam | 20 A |
| Right dipped beam (diesel models without HID headlights) | 10 A | |
| F31 | Fuel heater (diesel engine) | 15 A |
| F32 | Transmission Control Module (TCM) | 15 A |
| F33 | Unused | - |
| F34 | Starter motor solenoid | 30 A |
| F35 | Ignition relay coil | 5 A |
| F36 | Engine Control Module (ECM) (petrol) | 5 A |
| Engine Control Module (ECM), alternator battery sense line (diesel) | 7.5 A | |
| F37 | Unused | - |
| F38 | Horns (petrol engine) | 20 A |
| Auxiliary heater (diesel engine) | 30 A | |
2001–2003 Model Years
Jaguar X-Type (2001–2003) engine compartment fuse box diagram.
|
||
| No. | Description | Rating |
| R1 | Windscreen wiper motor relay | 40 A |
| R2 | Heated windscreen relay | 70 A |
| R3 | Horn relay | 20 A |
| R4 | Accessory relay | 20 A |
| R5 | Headlight powerwash relay | 20 A |
| R6 | A/C compressor clutch relay | 20 A |
| R7 | Engine Management System (EMS) relay | 70 A |
| R8 | Transmission Control Module (TCM) relay | 20 A |
| R9 | Dipped beam / HID relay | 40 A |
| R10 | Starter motor relay | 40 A |
| R11 | Throttle motor relay (2.5L/3.0L), fuel pump relay (2.0L) | 20 A |
| F1 | Dipped beam relay, High-Intensity Discharge (HID) lamps | 20 A |
| F2 | Ignition relay power feed | 50 A |
| F3 | Anti-Lock Braking System (ABS) module | 60 A |
| F4 | Heated rear window relay, heated exterior mirrors | 30 A |
| F5 | Auxiliary vacuum pump, Transmission Control Module (TCM) | 30 A |
| F6 | Blower motor relay | 30 A |
| F7 | Passenger compartment fuse box power feed | 50 A |
| F8 | Radiator cooling fan module | 80 A |
| F9 | Engine management power relay, headlight powerwash module | 50 A |
| F10 | Headlight powerwash relay | 20 A |
| F11 | Unused | - |
| F12 | Unused | - |
| F13 | Heated windscreen (right side) | 30 A |
| F14 | Unused | - |
| F15 | Heated windscreen (left side) | 30 A |
| F16 | Left dipped beam, Daytime Running Lights (DRL), automatic lighting module | 20 A |
| F17 | Right dipped beam, High-Intensity Discharge (HID) lights | 20 A |
| F18 | Throttle motor supply (2.5L, 3.0L), fuel pump (2.0L) | 20 A |
| F19 | 2002–2003: Windscreen washer pump, rain sensor | 15 A |
| F20 | Navigation system display | 5 A |
| F21 | Side (parking) lamps | 15 A |
| F22 | Accessory power relay | 20 A |
| F23 | A/C compressor clutch relay | 10 A |
| F24 | Central locking module power supply | 15 A |
| F25 | Direction indicators (Generic Electronic Module - GEM) | 15 A |
| F26 | Horn relay | 15 A |
| F27 | Transmission Control Module (TCM), transit relay | 10 A |
| F28 | 2001–2002: Ignition switch | 30 A |
| 2002–2003: Ignition switch | 15 A | |
| F29 | Starter motor relay coil | 30 A |
| F30 | Auxiliary power outlets | 30 A |
| F31 | Engine Management System (EMS) relay coil | 10 A |
| F32 | Engine Management System (EMS) control module | 5 A |
| F33 | 2001: Throttle motor relay | 20 A |
| F34 | Unused | - |
| F35 | EMS relay diode | - |
| F36 | EVAP canister purge valve, canister close valve, Mass Air Flow (MAF) sensor, throttle motor relay coil, washer relay coil, A/C relay coil, cruise control module | 10 A |
| F37 | Engine Management System (EMS), cooling fan controller, cruise control module | 15 A |
| F38 | Heated Oxygen Sensors (HO2S) | 30 A |
| F39 | Variable intake tuning valves | 5 A |
| F40 | 2002–2003: Transmission Control Module (TCM) | 15 A |
| F41 | Fuel injectors | 10 A |
| F42 | Heated Oxygen Sensors (HO2S) bank B | 30 A |
