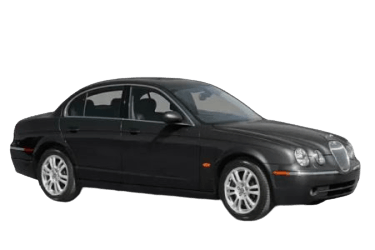

The Jaguar S-Type is a British executive sedan produced by Jaguar Cars between 1999 and 2008. In its final production form, the model was unveiled on October 20, 1998, at the British International Motor Show in Birmingham. This article provides a detailed look at the power distribution centers and fuse box diagrams for the first-generation Jaguar S-Type (X200 post-facelift) covering model years 2002, 2003, 2004, 2005, 2006, 2007, and 2008.
Below you will find the locations, component views, and fuse assignment tables for the power distribution centers. Fuses designated for the “Cigar Lighter” and “Fuel Pump” circuits are highlighted in bold text.
Engine Compartment
Located on the right side of the engine bay, adjacent to the windshield washer fluid reservoir. To access, press the locking tabs and lift the cover off. When reinstalling, press down firmly over the locking tabs until the cover snaps securely into place.
Overview layout.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating |
| R1 | Unused | - |
| R2 | Heated oxygen sensors (HO2S) | 40 A |
| R3 | Ignition switch control | 40 A |
| R4 | Electronic throttle motor | 40 A |
| R5 | Engine Management System (EMS) | 40 A |
| R6 | Unused | - |
| R7 | Auxiliary coolant pump | 20 A |
| R8 | A/C compressor clutch | 20 A |
| R9 | Unused | - |
| R10 | Left High-Intensity Discharge (HID) headlamp | 20 A |
| R11 | Front fog lamps | 20 A |
| R12 | Dual horns | 20 A |
| R13 | Right High-Intensity Discharge (HID) headlamp | 20 A |
| R14 | Unused | - |
| R15 | Windshield wiper high/low speed | 20 A |
| R16 | Windshield wiper run/park | 20 A |
| R17 | Heated windshield (left side) | 40 A |
| R18 | Headlamp powerwash pump | 40 A |
| R19 | Unused | - |
| R20 | Starter solenoid | 40 A |
| R21 | Heated windshield (right side, if equipped) or wiper park heater | 40 A |
| D1 | Unused | |
| D2 | Unused | |
| D3 | Ignition relay diode | |
| D4 | 2002–2005: Engine management control relay | |
| F1 | 2006–2008: Anti-lock Braking System (ABS) module (B+ supply) | 5 A |
| F2 | 2004–2008: Engine Management System (EMS) (2006–2008), Engine Control Module (battery feed) (Diesel only), Vacuum solenoid (2006–2008) | 5 A |
| F3 | 2004–2008: Auxiliary fuel-fired heater (Diesel only) | 20 A |
| F4 | 2006–2008: ABS valves (Vbatt supply) | 20 A |
| F5 | Unused | - |
| F6 | Unused | - |
| F7 | Unused | - |
| F8 | Unused | - |
| F9 | 2002–2003: Engine Management System power supply | 50 A |
| 2004–2005: Gasoline — Heated oxygen sensors, throttle motor, ignition coils, engine control relay; Diesel — Engine control relay (2004) | ||
| 2006–2008: Heated exhaust oxygen sensors, EMS ignition relay; Gasoline/Diesel — EMS relay, supercharger intercooler pump relay | ||
| F10 | Unused | - |
| F11 | Headlamp powerwash pump | 30 A |
| F12 | Windshield wipers | 20 A |
| F13 | Radiator cooling fan module | 80 A |
| F14 | Right High-Intensity Discharge (HID) low beam bulb | 15 A |
| F15 | Front fog lamps | 15 A |
| F16 | Dual horns | 15 A |
| F17 | Fuel injectors | 15 A |
| F18 | 2002–2005: Electronic throttle motor | 20 A |
| 2006–2008: Engine management ignition feed | 10 A | |
| F19 | 2002–2003: Coil-on-plug ignition supply | 10 A |
| 2004–2005: Gasoline — Coil-on-plug ignition supply, noise suppression capacitor, HEGO relay coil; Diesel — Fuel pressure control valve, volume control valve (2004) | ||
| 2006–2008: Diesel — Fuel pressure control valve, volume control valve | ||
| 2006–2008: Gasoline — Coil-on-plug ignition supply | 15 A | |
| F20 | 2002–2005: Gasoline — Right heated oxygen sensor (HO2S) | 30 A |
| 2004, 2006–2008: Diesel — Engine Control Module (ECM) | ||
| 2006–2008: Gasoline — Right heated oxygen sensors | 20 A | |
| F21* | *(D1) 2004–2008: Rain sensor module | 5 A |
| F22* | *(D2) Unused | - |
| F23 | Unused | - |
| F24 | Unused | - |
| F25 | Heated windshield (right side, if equipped) or wiper park heater | 40 A |
| F26 | Unused | - |
| F27 | Starter solenoid | 30 A |
| F28 | ABS pump motor | 30 A |
| F29 | Unused | - |
| F30 | Heated windshield (left side, if equipped) | 40 A |
| F31 | 2002–2005: ABS module (hydraulic valves) | 30 A |
| 2006–2008: Secondary Air Injection (SAI) pump relay | 50 A | |
| F32 | A/C compressor clutch, auxiliary coolant pump | 10 A |
| F33 | Engine Control Module (ECM) and Transmission Control Module (TCM) battery feed; Diesel — EMS (2006–2008) | 15 A |
| F34 | Left High-Intensity Discharge (HID) low beam bulb | 15 A |
| F35 | 2002–2005: Left heated oxygen sensor (HO2S) heaters | 30 A |
| 2006–2008: Left heated oxygen sensor (HO2S) heaters | 20 A | |
| F36 | Supercharger intercooler coolant pump (Supercharged models) | 15 A |
| F37 | Mass Air Flow (MAF) sensor, EVAP purge valve, canister closure valve, intake manifold tuning valves (V6 only), Exhaust Gas Recirculation (EGR) valve (V8 only), air cleaner solenoid (V8 Supercharged only), MAF sensors (2004–2008), Variable Geometry Turbocharger (VGT) sensors (2004–2008), port deactivation valve (Diesel only, 2004, 2006–2008) | 15 A |
| F38 | Engine Control Module ignition feed (Gasoline only), cooling fan control module, A/C compressor clutch relay, glow plug control module (Diesel only, 2004, 2006–2008) | 10 A |
Passenger Compartment
Located in the front passenger footwell beneath the glove box.
Overview of the cabin fuse panel.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating |
| F1 | Engine Control Module (ECM) / Crankshaft position sensor | 5 A |
| F2 | Unused | 5 A |
| F3 | ABS / Dynamic Stability Control (DSC) module, Adaptive Cruise Control (ACC) module | 5 A |
| F4 | Inertia switch (fuel pump relay, ignition control relay, Rear Electronic Module), instrument cluster, brake pedal cruise control disengagement switch (2002–2003), clutch pedal switch (2003), Engine Management System (2006–2008), cruise control override switch (2006–2008) | 5 A |
| F5 | Restraints Control Module (RCM), passenger airbag occupant sensing module, passenger airbag deactivation indicator | 10 A |
| F6 | OBD-II Data Link Connector (DLC) | 10 A |
| F7 | Driver Door Module (DDM), seat memory logic (2002–2003), battery-backed security sounder, Electronic Road Pricing (Singapore), LED security indicator | 5 A |
| F8 | Front right turn signal, position lamps, parking lamps, side turn repeaters | 5 A |
| F9 | Right low beam (dipped beam), left HID relay coil | 10 A |
| F10 | Front left turn signal, position lamps, parking lamps, side turn repeaters | 5 A |
| F11 | Left high beam (main beam) | 10 A |
| F12 | Windshield washer pump | 15 A |
| F13 | Instrument cluster | 5 A |
| F14 | Climate control module, Computer Active Technology Suspension (CATS) adaptive damping module | 10 A |
| F15 | Ignition switch RUN feed to alternator, J-gate gear selector, Transmission Control Module (TCM) | 5 A |
| F16 | Driver/passenger heated seat modules, electrochromic rear-view mirror, rain sensor module, headlamp leveling module, ACC sounder module (2002–2003), Tire Pressure Monitoring System (TPMS) module (2004–2007) | 10 A |
| F17 | Instrument cluster (airbag warning lamp, alternator warning lamp, seat belt chime) | 5 A |
| F18 | Audio unit (radio), touchscreen / display module | 20 A |
| F19 | Steering column tilt and reach adjustment motors | 15 A |
| F20 | Logic power feed for instrument cluster, climate control system, Front Electronic Module (FEM), Rear Electronic Module (REM), Electric Parking Brake (EPB) (2004–2008) | 10 A |
| F21 | Unused | 10 A |
| F22 | Driver Door Module (DDM) battery feed (power mirrors, door locks) | 10 A |
| F23 | Right high beam (main beam) | 10 A |
| F24 | Passive Anti-Theft System (PATS) transceiver | 5 A |
| F25 | Left low beam (dipped beam), right HID relay coil | 10 A |
| F26 | Illuminated Electric Parking Brake switch, AM/FM antenna amplifier, rear sunshade motor, 12V accessory socket relay (cigar lighter and power outlet relay) | 10 A |
| F27 | Audio unit, touchscreen display, navigation module, voice control module, VICS (Japan), center console switch pack, cellular telephone transceiver (2004–2008) | 10 A |
| F28 | Unused | 5 A |
| F29 | Voice control module, parking aid module, cellular telephone transceiver, Front Electronic Module | 5 A |
| F30 | Front Electronic Module (FEM) main power supply | 10 A |
| F31 | Unused | - |
| F32 | Cigar lighter fuse (12V accessory power outlet) | 20 A |
| F33 | Front Electronic Module (instrument panel dimming, fuel filler flap / trunk release switch pack) | 10 A |
| F34 | Unused | - |
| F35 | Brake pedal switch, cruise control cancel switch (2002–2003), clutch pedal switch (2002, 2004–2008) | 5 A |
| R1 | Accessory relay (cigar lighter, 12V auxiliary power outlet) | 40 A |
Luggage Compartment
Located in the trunk (luggage compartment) adjacent to the vehicle battery.
Location layout view.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating |
| R1 | Heated rear window (defogger) relay | 40 A |
| R2 | Switched system power relay 1 | 40 A |
| R3 | Unused | - |
| R4 | Switched system power relay 3 | 40 A |
| R5 | Switched system power relay 4 | 40 A |
| R6 | Unused | - |
| R7 | Blower motor relay | 70 A |
| R8 | Fuel filler flap release relay | 20 A |
| R9 | Unused | - |
| R10 | Accessory power relay | 40 A |
| R11 | Switched system power relay 2 | 40 A |
| R12 | Unused | - |
| R13 | Unused | - |
| R14 | Unused | - |
| R15 | Fuel pump relay | 40 A |
| F1 | 2002–2003: OBD-II Data Link Connector battery feed | 40 A |
| 2004–2008: Passenger compartment fuse box battery feed | ||
| F2 | 2002–2003: Auxiliary accessory socket | 20 A |
| 2004–2008: Cigar lighter and power outlet relay | 30 A | |
| F3 | Ignition switch supply feed | 20 A |
| F4 | Rear left power window motor | 20 A |
| F5 | Driver power window motor | 20 A |
| F6 | Front passenger power window motor | 20 A |
| F7 | Rear right power window motor | 20 A |
| F8 | Unused | - |
| F9 | Unused | - |
| F10 | Climate control blower motor | 30 A |
| F11 | Front passenger power seat module | 30 A |
| F12 | Switched system power relay 1 | 30 A |
| F13 | Switched system power relay 2 | 30 A |
| F14 | Switched system power relay 3 | 30 A |
| F15 | Driver power seat module | 30 A |
| F16 | Unused | - |
| F17 | Unused | - |
| F18 | Driver power seat module | 30 A |
| F19 | Front passenger power seat module | 30 A |
| F20 | Switched system power relay 4 | 30 A |
| F21 | Heated rear window, heated door mirrors (2002–2003, 2006–2008) | 30 A |
| F22 | Unused | - |
| F23 | Fuel pump module | 30 A |
| F24 | 2004–2008: Tire Pressure Monitoring System (TPMS) module | 5 A |
| F25 | 2004–2008: CD autochanger / player | 5 A |
| F26 | CATS adaptive damping suspension module | 15 A |
| F27 | Unused | - |
| F28 | Premium audio power amplifier | 30 A |
| F29 | Cellular telephone, CD autochanger (2002–2003), Navigation unit, Voice control module (2002–2003), VICS (Japan only) | 10 A |
| F30 | Alternator sense feed (V8 Supercharged and Diesel models) | 5 A |
| F31 | Sliding sunroof control module | 20 A |
| F32 | Driver power seat module | 10 A |
| F33 | Transit isolation relay | 5 A |
| F34 | 2002–2003: Heated seat control modules (driver/passenger) | 15 A |
| 2004–2008: Heated seat control modules (driver/passenger) | 20 A | |
| F35 | Electric Parking Brake (EPB) module | 30 A |
| F36 | Unused | - |
| F37 | Front passenger power seat module | 10 A |
| F38 | Unused | - |
| F39 | Unused | - |
| F40 | Unused | - |
| F41 | Unused | - |
| F42 | 2002–2003: Heated door mirrors (driver/passenger) | 5 A |
| 2004–2008: Heated door mirrors (driver/passenger) | 10 A | |
| F43 | Unused | - |
| F44 | Left rear tail lamp, rear fog lamp (2002), direction indicator, side marker lamp, trailer towing module and relay | 10 A |
| F45 | Unused | - |
| F46 | Luggage compartment and interior courtesy illumination, fuel filler flap solenoid | 10 A |
| F47 | Rear Electronic Module (REM), fuel pump feed (Gasoline models), fuel lift pump (Diesel models) | 15 A |
| F48 | Right reversing lamp, rear fog lamp (2002), direction indicator, position lamps, license plate lamps | 10 A |
| F49 | Secondary fuel pump module (Supercharged models) | 15 A |
| F50 | Transit isolation relay | 5 A |
| F51 | Adaptive Cruise Control (ACC) module | 5 A |
| F52 | Electric Parking Brake (EPB) module | 5 A |
| F53 | Right tail/stop lamps, high-mounted stop lamp, rear fog lamps (2003–2008) | 10 A |
| F54 | Unused | - |
| F55 | Door puddle lamps, interior courtesy roof lamps, map lamps, vanity mirror lamps, glove box lamp, garage door opener transceiver | 10 A |
| F56 | 2004–2008: Cigar lighter fuse | 15 A |
| F57 | Left tail/stop lamps, rear fog lamps (2003–2008) | 10 A |
| F58 | 2004–2008: Auxiliary power socket | 20 A |
| F59 | Rear Electronic Module (REM), passenger and rear door latch actuators, trunk release solenoid, electric steering column switch (2002–2003) | 15 A |
