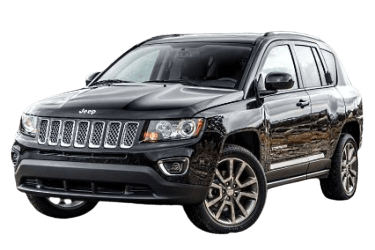

Fuses Jeep Compass (MK49; 2011–2017)

This article provides detailed fuse box diagrams and circuit assignments for the Jeep Compass (first-generation facelift; chassis MK49) for model years 2011 through 2017.

Fuses 11, 13, and 16 in the engine compartment fuse box protect the cigarette lighter and auxiliary power outlet circuits.

Engine Compartment Fuse Box

General view.

Location

Located in the engine compartment next to the air cleaner assembly, beneath the protective cover.

Fuse Box Diagram

Fuse assignment and circuit protection details.

No.	Description	Rating
1	2014–2017: Trailer Tow Harness	20 A
9	Power Seats	40 A
15	Radiator Fan Relay	40 A
18	Automatic Shutdown (ASD) Relay	40 A
32		30 A
34	Anti-Lock Brake (ABS) Valves	30 A
35	Anti-Lock Brake (ABS) Pump Motor	40 A
36	Headlamps, Smart Glass, Washer Control Module	30 A
2	AWD / 4WD Control Module	15 A
3	Center High-Mounted Stop Lamp (CHMSL) Switch	10 A
4	2011–2015: Occupant Classification Module (OCM), Ignition Switch 2016–2017: Clockspring, Ignition Switch	10 A
5	2011–2013: Trailer Tow Package 2014–2017: Battery Feed – Powertech Transmission	20 A
6	2011, 2013–2017: Power Mirrors, Steering Wheel Controls, Satellite Radio, Hands-Free Phone System 2012: Power Mirrors, Airbag Occupant Classification Module, Steering Wheel Controls, Satellite Radio (if equipped)	10 A
7	Ignition-Off Draw (IOD)	30 A
8	Ignition-Off Draw (IOD)	30 A
10	2011, 2013–2017: Power Door Locks, Interior Lighting 2012: Power Door Locks	20 A
11	12V Auxiliary Power Outlet and Front Cigarette Lighter	15 A
12	115V AC Power Inverter	20 A
13	Rear Auxiliary Power Outlet and Rear Cigarette Lighter	20 A
14	Instrument Cluster	10 A
16	2011, 2013–2017: Power Sunroof, Dome Lamp, Rear Wiper Motor 2012: Power Sunroof, Cigarette Lighter	15 A
17	Wireless Control Module (WCM)	10 A
19	Audio Amplifier	20 A
20	Radio / Audio Head Unit	15 A
21	Intrusion Security Module, Hazard Flasher	10 A
22	HVAC System / Compass Module	10 A
23	Automatic Shutdown (ASD) Relay Feed	15 A
24	Power Sunroof	15 A
25	Heated Exterior Mirrors	10 A
26	Automatic Shutdown (ASD) Relay Feed	15 A
27	Airbag Control Module (ACM)	10 A
28	Occupant Classification Module (OCM), Airbag Control Module (ACM)	10 A
29	Spare / Unused
30	Heated Seats	20 A
31	Headlamp Washers	10 A
33	2011, 2013–2017: Powertrain Control Module (PCM), J1962 Diagnostic Connector (OBD-II) 2012: Anti-Lock Brake (ABS) Module, Powertrain Control Module (PCM), J1962 Diagnostic Connector	10 A
37	2011, 2013–2015: Diesel Fuel Heater 2012: 115V Inverter, Diesel Fuel Heater 2016–2017: Diesel Fuel Heater, Soft Top Power Feed	25 A
