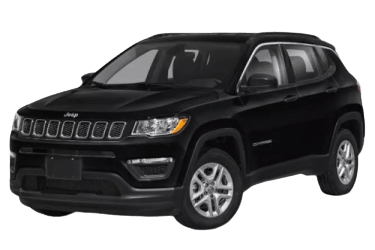

In this article, we take a detailed look at the fuse box diagrams for the Jeep Compass (second generation; MP): 2016, 2017, 2018, 2019, 2020, 2021, and 2022 model years.
Fuse F94 in the passenger compartment fuse box and fuses F18, F20, and F30 in the engine compartment fuse box power the cigarette lighter and auxiliary 12V outlets.
In the Luggage Compartment
Located behind the access door on the left rear trim panel.
| Diagram | ||
|---|---|---|
| Panel 1 | ||
|
||
| F1 | Power Inverter | 30 A |
| F2 | Memory Seat Module | 30 A |
| F3 | Moonroof | 20 A |
| F4 | Passenger-Side Power Seat | 30 A |
| F5 | Driver-Side Power Seat | 30 A |
| F6 | Power Seats (Power Lumbar Support) | 7.5 A |
| F7 | Ventilated Seats, Heated Steering Wheel | 15 A |
| F8 | Heated Seats | 20 A |
| Panel 2 | ||
|
||
| F1 | 2019–2022: TTM Ignition Feed 2016–2018: Trailer Exterior Lighting Controller |
10 A |
| F5 | Driver-Side Exterior Lighting Controller | 15 A |
| F6 | Passenger-Side Exterior Lighting Controller | 15 A |
| F7 | TTM Jumper Battery Feed | 10 A |
An additional Maxi fuse holder (Power Liftgate 30 A / Audio System 25 A) is located on the trunk distribution unit bracket.
In the Passenger Compartment
The fuse box is located under the left side of the instrument panel.
Overview.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Amps |
| F31 | Occupant Restraint Controller (ORC) | 7.5 A |
| F33 | Passenger Power Window Motor | 20 A |
| F34 | Driver Power Window Motor | 20 A |
| F36 | Power Folding Mirrors, Intrusion Module / Hazard Lights, UCI/USB Port, Radio, VSU, Electronic Steering Lock, Climate Control Module, Security Gateway / DTV (2019–2021) | 20 A |
| F37 | Drivetrain Control Module, Instrument Cluster, Adaptive Cruise Control, ECC (HVAC) Blower | 10 A |
| F38 |
|
20 A |
| F42 | Electric Power Steering, Brake System Module | 7.5 A |
| F43 | Front and Rear Washer Pump | 20 A |
| F47 | Left Rear Power Window | 20 A |
| F48 | Right Rear Power Window | 20 A |
| F49 | Blind Spot Monitoring, Park Assist, Humidity Sensor, Voltage Stabilizer, Sunroof, Temperature Sensor, Electronic Steering Lock, Light & Rain Sensor Mirror, Heated Seats, Start-Stop Switch (2019–2021) | 7.5 A |
| F50 | Occupant Restraint Controller (ORC) | 7.5 A |
| F51 | Occupant Classification Module, Electronic Climate Control, Rearview Camera, Selec-Terrain System, Headlamp Leveling, Heated Rear Window, Haptic Lane Departure Warning, Trailer Towing | 7.5 A |
| F53 | Electric Park Brake, Keyless Ignition Node Module, Radio Frequency (RF) Hub, Instrument Cluster | 7.5 A |
| F94 |
|
15 A |
In the Engine Compartment
Located on the left side of the engine compartment. Turn the screw counterclockwise (1) to release the cover.
Access overview.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Amps |
| “Maxi” Type Fuses | ||
| F01 | Body Control Module (BCM) | 70 A |
| F02 | Body Control Module (BCM), Rear Distribution Units | 70 A |
| F06 | Starter Relay | 40 A |
| F07 | Rear Distribution Unit (Trailer Towing) | 40 A |
| F15 | Brake Control Module Pump | 40 A |
| F81 | 2016–2018: Glow Plug Module | 60 A |
| 2019–2022: Glow Plug Module, DDCT SDU Battery Feed | ||
| “Cartridge” Type Fuses | ||
| F03 | 2016–2018: Body Control Module Power Supply | 30 A / 20 A |
| 2019–2022: Body Control Module Power Supply, HID Headlamps | ||
| F04 | Brake Control Electronics Module | 40 A |
| F05 | PTC Auxiliary Heater | 40 A |
| F08 | Power Supply for F24, F87, Steering Control Module | 30 A |
| F82 | Diesel Fuel Filter Heater | 40 A |
| F83 | HVAC Blower Fan | 40 A |
| “Mini” Type Fuses | ||
| F09 | 2016–2018: Engine Control Module (ECM) | 7.5 A |
| 2019–2022: ECM, Radiator Fan Control, Transmission Control Module (TCM) | ||
| F10 | Horn | 20 A |
| F11 | 2016–2018: Secondary Loads Power Supply | 20 A |
| 2019–2022: ECM / PCM / Urea Fuel Injectors | 25 A | |
| F14 | Crankcase Heater (Diesel) | 7.5 A |
| 2020–2021: Gasoline LTR Cooling Pump | 15 A | |
| F16 | Engine Control Module (ECM) Power Supply, Automatic Transmission | 10 A |
| F17 | Engine Secondary Loads | 10 A |
| F18 | 12V Rear Trunk Power Outlet | 20 A |
| F19 | 2016–2018: Air Conditioning Compressor & PWM Radiator Fan Enable | 7.5 A |
| 2019–2022: Air Conditioning Compressor | ||
| F20 | Primary Cigarette Lighter | 20 A |
| F21 | Fuel Pump | 15 A |
| F22 | 2016–2018: Powertrain Control Module (Gasoline) | 20 A |
| 2019–2021: Gasoline – Ignition Coils, Fuel Injectors / Diesel Components | 15 A | |
| F23 | Heated Rear Window / Defroster Grid | 30 A |
| F24 | Automatic Transmission Control Unit Power Supply | 15 A |
| F30 | Rear 12V Power Outlet & Cigarette Lighter | 20 A |
| F84 | All-Wheel Drive (AWD) System | 30 A |
| F87 | Automatic Transmission Gear Selector | 5 A |
| F88 | Heated Exterior Mirrors | 7.5 A |
| F89 | Heated Rear Window | 30 A |
| F90 | Intelligent Battery Sensor (IBS - Battery State of Charge) | 5 A |
| Fxx | Dual Battery Control Relay | 7.5/10 A |
