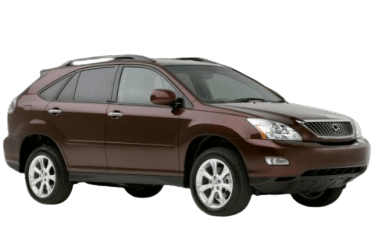

The second-generation Lexus RX (XU30 series) maintains a family resemblance to its predecessor while adopting a more dynamic design and distinct styling enhancements, such as a sharper front fascia, a re-angled C-pillar, and a prominent rear spoiler. The new-generation RX is 16 cm longer and 3.5 cm wider, with the wheelbase extended from 2,619 mm to 2,715 mm, providing a more spacious interior. In 2006, the RX 350 replaced the RX 330, introducing a 3.5-liter V6 engine that delivers over 47 hp more than the 3.3-liter engine in the outgoing model. Cabin comfort was further improved through enhanced noise, vibration, and harshness (NVH) insulation materials and an upgraded transmission. A mid-cycle refresh in 2008 added a redesigned front grille, chrome exterior door handles, and new 18-inch alloy wheels.
This article provides detailed fuse box diagrams and power distribution panel layouts for the 2nd generation Toyota Harrier / Lexus RX 350 (XU30 chassis) for model years 2006, 2007, 2008, and 2009. Here you will find component locations, photos, and circuit assignments. The fuse responsible for the “Cigarette Lighter” is highlighted in bold.
Passenger Compartment Fuse Box
Located under the dashboard on the driver’s side.
General view of the passenger compartment fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit / Protected Component | Rating (A) |
| 1 | Right rear power window motor | 20 |
| 2 | Left rear power window motor | 20 |
| 3 | Fuel filler flap opener motor | 7.5 |
| 4 | Front fog lights | 15 |
| 5 | On-Board Diagnostics (OBD) system | 7.5 |
| 6 | Heated side mirrors, windshield wiper de-icer | 25 |
| 7 | Stop lights, high-mount stop light, Vehicle Stability Control (VSC), rear height control system, fuel injection system | 10 |
| 8 | Power tilt and telescopic steering column | 30 |
| 9 | Engine immobilizer system | 7.5 |
| 10 | Starting system | 7.5 |
| 11 | Rear fog lights (RR FOG) | 7.5 |
| 12 | Active Height Control (AHC) system (if equipped) | 7.5 |
| 13 | Multiplex communication system (MPX) | 25 |
| 14 | Power sunroof | 30 |
| 15 | Parking lights, front fog lights, license plate lights, tail lights, front turn signals | 10 |
| 16 | Glove box light, instrument cluster, center console illumination, audio system, auxiliary power outlets, headlight washers, heated seats, power tailgate | 7.5 |
| 17 | Engine immobilizer, power windows, heated side mirrors, ABS, Traction Control (TRAC), VSC, HVAC system, power sunroof, Lexus Link system, power steering column, multi-information display, driver seat memory system | 7.5 |
| 18 | Adaptive Front-lighting System (AFS), cruise control, VSC | 7.5 |
| 19 | Condenser fan motor, air conditioning system, rear window defogger, ignition switch, windshield wiper de-icer | 7.5 |
| 20 | Windshield washer and wipers | 20 |
| 21 | Seat heaters (SEAT HTR) | 20 |
| 22 | Instrument cluster, dashboard illumination, hazard warning lights, seat belt warning system, auxiliary power outlets, backup lights | 7.5 |
| 23 | Windshield wipers | 30 |
| 24 | Rear window wiper and washer | 15 |
| 25 | Fuel injection system | 7.5 |
| 26 | Supplemental Restraint System (SRS airbags), stop lights, engine immobilizer | 10 |
| 27 | Instrument cluster | 7.5 |
| 28 | Multi-information display, power side mirrors, Multiplex communication system | 7.5 |
| 29 | Auxiliary power outlets | 15 |
| 30 | 15 | |
| 31 | Instrument cluster, navigation system, audio system | 7.5 |
| 32 | Heated side mirrors | 10 |
| 33 | Power seats | 30 |
| 34 | Power windows, Multiplex communication system, power side mirrors | 30 |
Engine Compartment Fuse Box
Located on the left side of the engine compartment.
Remove the protective cover to access the panel.
General view of the fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit / Protected Component | Rating (A) |
| 1 | Active Height Control (AHC) system (models with AHC) | 60 |
| INP-J / B (Models without AHC system) Fuses “HEATER”, “TAIL”, “PANEL”, “FR FOG”, “CIG”, “RADIO No. 2”, “ECU-ACC”, “PWR OUTLET No. 1”, “GAUGE No. 1”, “ECU-IG No. 1”, “FR WIP”, “RR WIP”, “WASHER”, “SEAT HTR”, “ECU-IG No. 2”, “P SEAT”, “PWR”, “TI&TE”, “RR DOOR LH”, “RR DOOR RH”, “MPX-B”, “AM1”, “DOOR No. 2”, “STOP”, “OBD”, “FUEL OPN”, “AIRSUS (7.5 A)”, “S / ROOF”, “FR DEF”, “RR FOG” | 100 | |
| 2 | ALT Fuses “INP-J / B”, “AIRSUS (60 A)”, “ABS No. 1”, “ABS No. 2”, “RDI FAN”, “RR DEF”, “HEATER”, “PBD”, “H-LP CLN”, “POWER OUTLET No. 2”, “ECU-ACC”, “PWR OUTLET No. 1”, “GAUGE”, “ECU-IG No. 1”, “FR WIP”, “RR WIP”, “WASHER”, “HEATER”, “SEAT HTR”, “ECU-IG No. 2”, “P SEAT”, “PWR”, “CRT”, “TI&TE”, “RR DOOR LH”, “RR DOOR RH”, “MPX-B”, “AM1”, “DOOR No. 2”, “STOP”, “OBD”, “FUEL OPN”, “AIRSUS”, “S / ROOF”, “FR DEF”, “RR FOG” | 140 |
| 3 | Power tailgate motor | 30 |
| 4 | Headlight washer (models with AHC system) | 30 |
| Headlight washer (models without AHC system) | 30 | |
| 5 | ABS, Brake Assist (BA), VSC, and Traction Control (TRAC) systems | 30 |
| 6 | Rear window defogger | 40 |
| 7 | Air conditioning system, rear window defogger | 50 |
| 8 | Daytime Running Light (DRL) system | 7.5 |
| 9 | Left headlight (low beam) | 15 |
| 10 | Left headlight (high beam) | 15 |
| 11 | Right headlight (high beam) | 15 |
| 12 | Trailer towing lights | 30 |
| 13 | Audio system | 7.5 |
| 14 | ABS, Brake Assist (BA), VSC, and Traction Control (TRAC) systems | 50 |
| 15 | Radiator cooling fans | 50 |
| 16 | Turn signals | 15 |
| 17 | Air-Fuel Ratio (A/F) sensor, fuel injection system | 25 |
| 18 | ALT-S charging system | 7.5 |
| 19 | Electronic Throttle Control System (ETCS) | 10 |
| 20 | Horn | 10 |
| 21 | Daytime Running Light (DRL) system, LH headlight, RH headlight, fuses “H-LP R LWR”, “H-LP R UPR”, “H-LP L UPR”, “H-LP L LWR”, “DRL” | 40 |
| 22 | Starting system, GAUGE No. 2, IGN, and IG2 fuses | 30 |
| 23 | Audio system, navigation system | 15 |
| 24 | Power windows, Multiplex system, gauges and meters, instrument cluster illumination, dashboard backlighting, air conditioning, HomeLink system, illuminated entry system, keyless remote control, power tailgate control, navigation system, power sunroof, power steering column, power front seats, power side mirrors, windshield wiper | 7.5 |
| 25 | Gauges and meters, interior lighting | 7.5 |
| 26 | Audio system | 30 |
| 27 | Multiplex communication system | 25 |
| 28 | INJ fuel injection system | 10 |
| 29 | Fuel injection system, EFI No. 1 and No. 2 fuses | 25 |
| 30 | Right headlight (low beam) | 15 |
| 31 | Auxiliary power outlet / accessory socket | 20 |
| 32 | EFI fuel injection system No. 2 | 10 |
