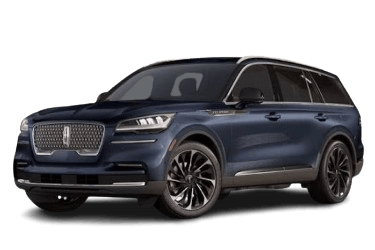

In this article, we provide a detailed overview of the fuse box diagrams for the second-generation Lincoln Aviator (chassis code U611) covering model years 2019, 2020, 2021, and 2022.
Fuses #33 and #34 in the engine compartment fuse box power the 12V auxiliary power outlets (cigarette lighter).
Engine Compartment Fuse Box
Located under the left-side cowl screen.
General view.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| 1 | Body Control Module (BCM) – battery in-feed #1 | 40 |
| 2 | Not used | 20 |
| 3 | Body Control Module (BCM) – battery in-feed #2 | 40 |
| 4 | Lincoln Aviator fuel pump fuse | 30 |
| 5 | Powertrain Control Module (PCM) keep-alive power | 5 |
| 6 | Powertrain Control Module (PCM) power | 20 |
| 7 | Universal Heated Oxygen Sensors (HO2S 11 and 21), Vapor blocking valve, Catalyst Monitor Sensors (12 and 22), Evaporative leak control module, Canister purge valve, Canister vent solenoid | 20 |
| 8 | Engine coolant bypass valve, Active grille shutters, Battery interrupt box, Auxiliary coolant pump, Transmission oil pump, Cooling fan relay coil | 20 |
| 9 | Ignition coils | 20 |
| 13 | Front blower relay | 40 |
| 14 | Engine mounts / A/C compressor variable clutch / Transmission oil pump | 15 |
| 16 | Windshield and rear window washer pump | 15 |
| 17 | Not used | 5 |
| 18 | Starter motor | 30 |
| 21 | Adaptive headlamps / Headlamp leveling control unit | 10 |
| 22 | Electric Power-Assisted Steering (EPAS) module | 10 |
| 23 | Anti-Lock Brake System (ABS) module with integrated park brake | 10 |
| 24 | Powertrain Control Module (PCM) | 10 |
| 25 | Particulate matter sensor / 360-degree camera with park assist / Blind Spot Information System (BLIS) / Adaptive cruise control / Rearview camera / Air quality sensor | 10 |
| 26 | Transmission Control Module (TCM) | 15 |
| 28 | Anti-Lock Brake System (ABS) valves with integrated park brake | 40 |
| 29 | Anti-Lock Brake System (ABS) pump with integrated park brake | 60 |
| 30 | Driver seat module | 30 |
| 31 | Passenger seat module | 30 |
| 32 | Not used | 20 |
| 33 | Rear cargo area 12V power outlet | 20 |
| 34 | Center console storage bin 12V power outlet / Lincoln Aviator cigarette lighter fuse | 20 |
| 35 | Not used | 20 |
| 36 | Power inverter module | 40 |
| 38 | Climate controlled seat module | 30 |
| 41 | Power liftgate module | 30 |
| 42 | Trailer brake control unit | 30 |
| 43 | Body Control Module (BCM) | 60 |
| 44 | Brake pedal position (BPP) switch | 10 |
| 46 | Not used | 15 |
| 50 | Heated rear window | 40 |
| 54 | Heated steering wheel | 20 |
| 55 | Trailer tow park lamps | 20 |
| 57 | Trailer tow battery charge feed | 30 |
| 58 | Trailer tow reverse lamps | 10 |
| 61 | Multi-contour seat module | 15 |
| 62 | Headlamp washer pump | 15 |
| 64 | Four-Wheel Drive (4WD) system | 40 |
| 69 | Windshield wipers | 30 |
| 71 | Rear window wiper | 15 |
| 72 | Air suspension system | 20 |
| 73 | Driver Door Module (DDM) | 30 |
| 78 | Not used | — |
| 79 | Not used | — |
| 80 | Left-front power door lock | 20 |
| 82 | Right-front power door lock | 20 |
| 88 | Rear climate control blower motor | 20 |
| 91 | Trailer tow lighting module | 20 |
| 95 | Not used | 15 |
| 96 | Not used | 15 |
| 97 | Not used | 10 |
| 98 | Not used | 10 |
| 103 | Not used | 50 |
| 104 | Not used | 50 |
| 105 | Steering angle sensor module – adaptive front steering | 40 |
| 106 | Not used | 40 |
| 107 | Not used | 40 |
| 108 | Not used | 20 |
| 109 | Passenger Door Module (PDM) | 30 |
| 111 | Body Control Module (BCM) voltage quality monitor feed | 30 |
| 112 | Left-rear power door lock | 20 |
| 114 | Air suspension compressor | 50 |
| 115 | Audio amplifier | 20 |
| 116 | Not used | 5 |
| 118 | Second-row heated seats | 30 |
| 120 | Port fuel injectors | 15 |
| 124 | Rain sensor | 5 |
| 125 | Smart USB charger module #1 | 5 |
| 127 | Audio amplifier | 20 |
| 128 | Illuminated emblem | 15 |
| 131 | Power folding seat module | 40 |
| 133 | Left-hand heated wiper blade | 15 |
| Right-hand heated wiper blade | ||
| 134 | Rear seat entertainment system | 10 |
| 136 | Right-rear power door lock | 20 |
| 139 | Smart USB charger module #2 | 5 |
| 142 | Traffic camera module | 5 |
| 146 | Not used | 15 |
| 148 | Left-hand headlamp module | 30 |
| 149 | Right-hand headlamp module | 30 |
| 150 | Not used | 40 |
| 155 | Not used | 25 |
| 159 | Not used | 15 |
| 160 | Not used | 10 |
| 168 | Not used | 20 |
| 169 | Not used | 10 |
| 170 | Not used | 10 |
| 177 | Center console blower motor | 10 |
Passenger Compartment Fuse Box
Located under the dashboard, to the left of the steering column.
General view.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| 1 | Not used | — |
| 2 | Moonroof / eCall / Driver door switch pack / Telematics Control Unit (TCU) module / Power inverter | 10 |
| 3 | Power seat switches / Wireless accessory charger module / Memory seat switch | 7.5 |
| 4 | Not used | 20 |
| 5 | Not used | — |
| 6 | Not used | 10 |
| 7 | Data Link Connector (DLC) power | 10 |
| 8 | Power liftgate module / Hands-free liftgate actuation module / Telematics Control Unit (TCU) module | 5 |
| 9 | Rear climate control module / Keyless entry keypad / Combined sensor module | 5 |
| 10 | Not used | — |
| 11 | Not used | — |
| 12 | Gearshift module / Remote climate control unit | 7.5 |
| 13 | Instrument panel cluster / Data Link Connector (DLC) / Switch interface module A / Steering Column Control Module (SCCM) | 7.5 |
| 14 | Not used | 15 |
| 15 | Electronic finish panel / SYNC system | 15 |
| 16 | Not used | — |
| 17 | Headlamp control module | 7.5 |
| 18 | Not used | 7.5 |
| 19 | Push-button ignition switch / Headlamp switch | 5 |
| 20 | eCall / Bluetooth Low Energy (BLE) module / Telematics Control Unit (TCU) module | 5 |
| 21 | Not used | 5 |
| 22 | Not used | 5 |
| 23 | Not used | 30 |
| 24 | Moonroof module | 30 |
| 25 | Not used | 20 |
| 26 | Not used | 30 |
| 27 | Not used | 30 |
| 28 | Not used | 30 |
| 29 | Head-Up Display (HUD) | 15 |
| 30 | Trailer brake controller connector | 5 |
| 31 | Transceiver module / Terrain Management System switch | 10 |
| 32 | Audio Control Module (ACM) | 20 |
| 33 | Not used | — |
| 34 | Run/Start relay coil | 30 |
| 35 | Not used | 5 |
| 36 | Image Processing Module A (IPMA) / Electronic suspension module / Electrochromic interior mirror / Park assist module | 15 |
| 37 | Not used | 20 |
| 38 | Not used | — |
