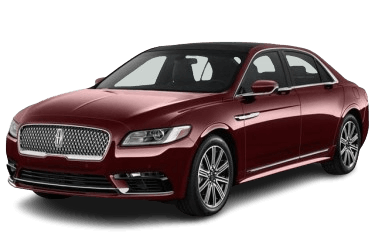

Fuses and relays Lincoln Continental (D544; 2016–2020)

In this article, we take a detailed look at the fuse box diagrams for the Lincoln Continental (tenth generation; chassis code D544) for model years 2016, 2017, 2018, 2019, and 2020.

Fuses #62, #67, and #69 in the engine compartment fuse box power the 12V auxiliary power outlets and cigarette lighter.

Engine Compartment Fuse Box

Located on the left side of the engine compartment, behind the protective cover.

Access illustration.

Diagram
No.	Description	Rating (A)
1	Powertrain Control Module (PCM) power supply	20
2	Engine emissions / Malfunction Indicator Lamp (MIL)	20
3	A/C clutch control relay coil, All-Wheel Drive (AWD) module (2.7L and 3.7L engines), Active grille shutters, VACC, Cooling fan relays	20
4	Ignition coils	20
5	Empty	—
6	Empty / 2018: Fuel injectors (3.7L engine)	15
7	Rear seat recline relay box	5
8	Empty	—
9	Empty	—
10	Empty	10
11	Torque vectoring relay (3.0L engine)	—
12	Empty	—
13	Rear seat recline	40
14	Powertrain Control Module (PCM) relay	—
15	Horn	20
16	A/C clutch	10
17	Empty	—
18	Empty	—
19	Heated rear window relay	—
20	Cooling fan relay	—
21		—
22	Cooling fan	30
23	Empty	—
24	Empty	—
25	Blower motor	—
26	Anti-lock Braking System (ABS) valves	30
27	Empty	—
28	Rear climate-controlled seats	30
29	Run/Start ignition relay	—
30	Empty	—
31	Electric Power-Assisted Steering (EPAS), electronic parking brake	10
32	Anti-lock Braking System (ABS)	10
33	Powertrain Control Module (PCM)	10
34	Adaptive cruise control, Blind Spot Information System (BLIS), 360-degree camera module, front-view camera, rear camera, transmission range control	10
35	Empty	—
36	Cooling fan	—
37	Rear seat recline relay	—
38	A/C compressor clutch	—
39	Horn relay	—
40	Empty	—
41	2016–2018: Right heated windshield / 2019–2020: Empty	40
42	Blower motor	40
43	Empty	—
44	Voltage Quality Module (VQM) bus, Body Control Module (BCM)	50
45	Empty	—
46	Cooling fan	50
47		50
48	Body Control Module (BCM) RP1 bus	50
49	Torque vectoring module (3.0L engine)	40
50	Body Control Module (BCM) RP2 bus	50
51	Empty	—
52	Anti-lock Braking System (ABS) pump	60
53	Adaptive steering module	40
54	Heated windshield	40
55	Heated rear window	40
56	AC power inverter	40
57	Manual decklid latch / Power decklid module	30
58	Empty	—
59	Empty	—
60	Fuel pump fuse #1	30
61	Empty	—
62	12V Auxiliary power outlet 2A (cigar lighter)	20
63	Power seat control module, front heated seats	30
64	Empty	—
65	Fuel pump fuse #2	30
66	Passenger power seat	30
67	12V Auxiliary power outlet (cigar lighter)	20
68	Auxiliary blower motor	15
69	12V Auxiliary power outlet 1A	20
70	Empty	—
71	Empty	—
72	Driver power seat	30
73	Empty	—
74	Windshield wiper motor	25
75	Empty	—
76	Empty	20
77	Empty	—
78	Starter motor	30
79	Empty / 2018–2020: Auxiliary transmission fluid pump (2.0L engine with Auto Start-Stop)	20
80	Empty	—
81	Passenger-side smart-charging USB port	5
82	Center console smart-charging USB port	5
83	Left rear door latch	20
84	Driver-side smart-charging USB port	5
85	Right front door latch	20
86	Right rear door latch	20
87	Transmission Range Control Module (TRCM)	15
88	Rear seat recline	5
89	Left front door latch	20
90	Powertrain Control Module (PCM) relay	10
91	Brake On/Off (BOO) switch	10
92	Front multi-contour seat module	15
93	Rear multi-contour seat module	15
94	Right-hand High-Intensity Discharge (HID) headlamp	20
95	Left-hand High-Intensity Discharge (HID) headlamp	20
96	Windshield wiper park heater	10
97	Alternator sense line	10
98	Rain sensor module	5
99	Empty	—

Passenger Compartment Fuse Box

The passenger compartment fuse box is located under the dashboard to the left of the steering column.

To gain access, remove the lower instrument panel trim cover.

General view.

Diagram
No.	Description	Rating (A)
1	Empty	—
2	Driver and passenger power seat switches	7.5
3	Driver door unlock relay	20
4	Empty	5
5	Revel® Digital Signal Processing (DSP) amplifier / Subwoofer amplifier	20
6	Empty	—
7	Empty	—
8	Security alarm horn / siren	10
9	2016–2017: Rear seat entertainment module 2018–2020: Empty	10
10	Power decklid module, Telematics Control Unit (TCU)	5
11	SecuriCode™ keypad, intrusion security sensor module, exterior door lock switch	5
12	Front climate control module, rear climate control module, gearshift module	7.5
13	Instrument cluster, Steering Column Control Module (SCCM), Smart Data Link	7.5
14	Restraints Control Module (RCM)	10
15	Data Link Connector (DLC) power	10
16	2016–2018: Decklid release relay 2019: Decklid release relay (5A) 2020: Decklid release relay (5A), power decklid module (5A)	5/10
17	Empty	5
18	Push-button ignition switch	5
19	2016–2017: Head-Up Display (HUD) 2018–2020: Empty	7.5
20	Headlamp Control Module (HCM)	7.5
21	Humidity sensor	5
22	2016–2017: Occupant Classification System (OCS) sensor 2018–2020: Empty	5
23	DC inverter, accessory delay power, power moonroof, driver front power window switch, rear window power sunshade module	10
24	Central locking relay	20
25	Driver front door zone module	30
26	Passenger front door zone module	30
27	Power moonroof	30
28	Revel® Digital Signal Processing (DSP) amplifier	20
29	Left rear door zone module	30
30	Right rear door zone module	30
31	Steering column memory module	15
32	2016–2018: SYNC® module, radio frequency (RF) receiver 2019: Empty 2020: SYNC® module (10A)	10
33	2017–2018: Audio unit / remote CD player 2019: SYNC® module, radio frequency (RF) receiver, rear seat entertainment (10A) 2020: Radio frequency (RF) receiver, rear seat entertainment (20A)	20
34	Run/Start ignition relay	30
35	Restraints Control Module (RCM)	5
36	Auto high-beam module / Lane-Keeping System module / rear heated seats / electrochromic rear-view mirrors / vehicle dynamics module	15
37	Heated steering wheel / steering angle sensor module / steering effort control module	20
38	2016–2017: Driver front power window / rear power windows 2018–2020: Empty	30
