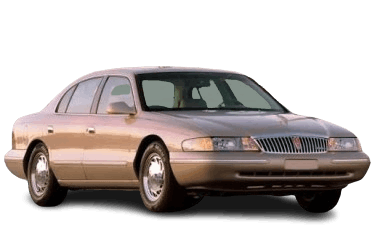

This article provides comprehensive fuse box diagrams and panel assignments for the ninth-generation Lincoln Continental (FN74; model years 1995–2002).
Fuses #14 and #7 (1998–2002) in the passenger compartment fuse panel power the cigarette lighter and auxiliary power outlets.
Engine Compartment Fuse Box
Located in the engine compartment near the battery, beneath the protective cover.
Cover removal and access.
General layout overview.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit Protected | Rating |
| MEGA | Generator / Voltage Regulator | 175 A |
| R1 | 1998–2002: Unused | |
| 1995–1997: Horn Relay | ||
| R2 | 1998–2002: A/C Compressor Clutch Relay | |
| 1995–1997: Blower Motor Relay | ||
| R3 | 1998–2002: Blower Motor Relay | |
| 1995–1997: High-Beam Headlamp Relay | ||
| R4 | 1998–2002: Powertrain Control Module (PCM) Power Relay | |
| 1995–1997: Powertrain Control Module Relay | ||
| R5 | 1998–2002: High-Beam Headlamp Relay | |
| R6 | 1998–2002: Horn Relay | |
| R7 | 1998–2002: Starter Relay | |
| Diodes | ||
| 1 | 1998–2002: A/C Clutch Diode | |
| 2 | 1998–2002: PCM Diode | |
| 3 | 1998–2002: Unused | |
| Green | ||
| 1 | 1998–2002: Powertrain Control Module (PCM) | 30 A |
| 2 | 1998–2002: Alternator Sense | 20 A |
| 1995–1997: Alternator Field Supply, Alternator Sense | 10 A | |
| 3 | 1998–2002: Right Rear Power Window | 30 A |
| 1995–1997: PCM Keep-Alive Power (KAPWR) | 10 A | |
| 4 | 1998–2002: Air Suspension Module | 30 A |
| 5 | 1995–1998: Airbag Diagnostic Module | 10 A |
| 6 | Horn | 20 A |
| 7 | High-Beam Headlamps | 15 A |
| 8 | 1998–2002: Right Front Power Window | 30 A |
| 1995–1997: Subwoofer Amplifier, Premium Radio, CD Player | ||
| Blue | ||
| 1 |
|
30 A |
| 2 | Front Passenger Seat Module | 30 A |
| 3 | Ignition Switch | 40 A |
| 4 | 40 A | |
| 5 | Driver Power Window, Driver Door Module (DDM) (1995–1997), Power Door Locks (1995–1997) | 40 A |
| 6 | 1998–2002: Engine Cooling Fan (Low Speed) | 30 A |
| 1995–1997: Right Power Windows | 40 A | |
| Thermactor (Secondary Air Injection) Pump | 20 A | |
| 7 | 1998–2002: Powertrain Control Module (PCM) | 30 A |
| 1995–1997: Vehicle Dynamics Module (VDM) | ||
| 8 | Rear Window Defroster, Heated Exterior Mirrors | 40 A |
| 9 | Instrument Panel (I/P) Fuse Block, OBD-II Data Link Connector (1995–1997) | 60 A |
| 10 | Lighting Control Module (LCM), CD Player (1995–1997) | 60 A |
| 11 | Air Suspension Compressor Relay | 60 A |
| 12 | Anti-Lock Brake System (ABS) Control Module, ABS Evac & Fill (1995–1997) | 60 A |
| 13 | Blower Motor Relay | 40 A |
| 14 | 1999–2002: Engine Cooling Fan (High Speed) | 60 A |
| 1998: Dual Auxiliary Relay Box | ||
| 1995–1997: Engine Cooling Fans | ||
| 15 | 1995–1997: Unused | - |
| 16 | 1995–1997: Powertrain Control Module (PCM), Steering/Suspension Control (STC) Module | 30 A |
| 17 | 1995–1997: Thermactor (Secondary Air Injection) Pump | 20 A |
| 18 | 1995–1997: Fuel Pump Relay / Fuel Pump Fuse | 20 A |
Passenger Compartment Fuse Box
Located under the driver's side instrument panel, near the brake pedal assembly.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit Protected | Rating |
| 1 | 1999–2002: Lighting Control Module (LCM): Anti-Theft Indicator Lamp, Hands-Free Microphone Illumination, PWM Dimming Output, Rear Ashtray Illumination, Rear Defrost Switch, Heated Seat Switches, Electronic Automatic Temperature Control (EATC) Panel, Speed Control Switches, Message Center Switches, Center Console & Ashtray Illumination, Cigarette Lighter Fuse | 5 A |
| 1995–1998: Lighting Control Module (LCM): Hands-Free Microphone Illumination, PWM Dimming Output, Anti-Theft Indicator Lamp, Rear Ashtray Illumination, Message Center Switches, Rear Defrost Switch, Heated Seat Switches, EATC Panel, Speed Control Switches, Cigarette Lighter, Navigation Display Module & Switches, Floor Shifter Illumination | 10 A | |
| 2 | 1998–2002: Powertrain Control Module (PCM), Data Link Connector (DLC) | 10 A |
| 1995–1997: Standalone Digital Clock, Premium Radio, Cellular Telephone Transceiver | ||
| 3 | 1998–2002: Multifunction Switch, High-Beam & Turn Signal Inputs to LCM, Cornering Lamps | 15 A |
| 1995–1997: Multifunction Switch | 10 A | |
| 4 | Audio System, Power Lock/Window Switch Illumination, Lighting Control Module (LCM RUN/ACC Sense), Electrochromic Auto-Dimming Mirror, Cellular Telephone Transceiver, RESCU Module (1998), Clock & Compass Display (1995–1997) | 10 A |
| 5 | Lighting Control Module (LCM RUN/START Sense), Virtual Image Cluster (VIC), Autolamp Sunload Sensor, Airbag Diagnostic Module (1995–1997), Traction Control OFF Switch (1995–1997), Premium Radio Control Unit (1995–1997) | 10 A |
| 6 | 1998–2002: Right Front Park/Turn Lamp, Virtual Image Cluster (VIC) | 10 A |
| 1995–1997: Standard Corporate Protocol (SCP) Network | 5 A | |
| 7 | 1998–2002: 12V Auxiliary Power Outlet (Cigarette Lighter) | 20 A |
| 1995–1997: Right Turn Signal Indicator, Right Rear Stop/Turn Lamps, Right Front Turn Lamp, Front Park & Side Marker Lamps, High-Beam Switch, Tail Lamps | 15 A | |
| 8 | 1998–2002: Trunk Release Relay, Fuel Filler Door Release Switch | 20 A |
| 1995–1997: Trunk Release Solenoid, Fuel Filler Door Release, Navigation System Power | 30 A | |
| 9 | EATC Control Module, Airbag Diagnostic Monitor, Blower Motor Relay | 10 A |
| 10 | Windshield Wiper System | 30 A |
| 11 | Passive Anti-Theft System (PATS) Transceiver (1998–2002), Radio Interference Ignition Capacitor (1998–2002), Ignition Coils, PCM Power Relay Coil | 10 A |
| 12 | 1998–2002: Lighting Control Module (LCM) | 10 A |
| 1995–1997: SCP Network | 5 A | |
| 13 | 1998–2002: Lighting Control Module (LCM): Right Turn Signal Indicator (VIC), Right Front Turn Lamp, Tail Lamps, Right Rear Side Marker Lamp, Left Rear Stop/Turn Lamp, License Plate Lamps, Digital Clock Illumination | 15 A |
| 1995–1997: Rear Side Marker Lamps, Standalone Clock Illumination, Decklid Tail Lamps, License Plate Lamps, Left Rear Stop/Turn Lamp, Left Turn Signal Indicator, Left Front Turn Lamp | ||
| 14 | 1998–2002: Cigar Lighter Fuse | 20 A |
| 1995–1997: Cigarette Lighter Fuse | 15 A | |
| 15 | 1998–2002: ABS Evac & Fill Connector | 10 A |
| 1995–1997: Heated Seat Control Switches, Navigation Display Module | ||
| 16 | Power Moonroof Switch | 30 A |
| 17 | Unused | - |
| 18 | 1998–2002: Lighting Control Module (LCM) | 10 A |
| 1995–1997: SCP Network | 5 A | |
| 19 | 1998–2002: Lighting Control Module (LCM): Daytime Running Lamps (DRL), Left Headlamp Low Beam | 10 A |
| 1995–1997: Left Headlamp Low Beam | 10 A | |
| 20 | Multifunction Switch (Hazard Flasher Input to LCM & Flash-to-Pass), Cornering Lamps (1995–1997) | 15 A |
| 21 | 1995–1997: ABS Control Module | 10 A |
| 22 | Unused | - |
| 23 | 1998–2002: Digital Transmission Range (DTR) Sensor | 10 A |
| 24 | 1998–2002: Virtual Image Cluster (VIC) - Left Front Turn Indicator | 10 A |
| 1995–1997: SCP Network | 5 A | |
| 25 | 1998–2002: Lighting Control Module (LCM): Right Headlamp Low Beam | 10 A |
| 1995–1997: Right Headlamp Low Beam | 10 A | |
| 26 | EATC Module, Virtual Image Cluster (VIC) | 10 A |
| 27 | Unused | - |
| 28 | Brake-Shift Interlock Solenoid, Virtual Image Cluster (VIC), Vehicle Dynamics Module (VDM), Heated Seat Switches (1998–2002), Rear Window Defroster, Low Tire Pressure System (LTPS) (1998–2002) | 10 A |
| 29 |
|
10 A |
| 30 | Heated Exterior Mirrors | 10 A |
| 31 | Lighting Control Module (LCM): Front Control Unit (FCU), Voltage Dimming for FCU & Standalone Clock (1995–1997), Interior Courtesy Lamps, Electrochromic Mirror (1998–2002), Door Courtesy Lamps, Map Lamps, Rear Reading Lamps, Visor Vanity Lamps (RH & LH), Console Bin Lamp, Glove Box Lamp, Trunk Lamp, Sunload Sensor Amplifier (1998–2002) | 15 A |
| 32 | Brake On/Off (BOO) Switch, Speed Control Deactivation (DEAC) Switch | 15 A |
| 33 | Unused | - |
| 34 | Speed Control Logic Module (1995–1997), Floor Shifter Illumination (1998–2002), Digital Transmission Range (DTR) Sensor (1998–2002), Intake Manifold Runner Control (IMRC), Backup Lamps, A/C Clutch Cycling Pressure Switch (1998–2002), Daytime Running Lamps (DRL) Module (Canada only, 1995–1997), EATC Compressor Clutch (1995–1997) | 15 A |
| 35 | 1995–1997: Left & Right Heated Seat Control Modules | 20 A |
| 36 | Unused | - |
| 37 | 1998–2002: Audio System Head Unit / Subwoofer Amplifier | 30 A |
| 38 | 1998–2002: Digital Clock, Cellular Telephone Transceiver, CD Player, RESCU System | 10 A |
| 1995–1997: OBD-II Data Link Connector | ||
| 39 | 1998–2002: Power Seats, Power Door Locks, Remote Keyless Entry, Power Mirrors, Left Front Seat/Door Module | 10 A |
| 1995–1997: Driver Door Module (DDM) Logic Power, Driver Seat Module (DSM) Logic Power, Keyless Entry Keypad, Memory Seat Switch, Power Mirror Switch, Driver Power Seat Switch | ||
| 40 | Cornering Lamps (1998–2002), Temperature Blend Door Actuator (1995–1997), Low Tire Pressure System (LTPS) (1995–1997) | 10 A |
| 41 | Power Door Lock Actuators | 20 A |
