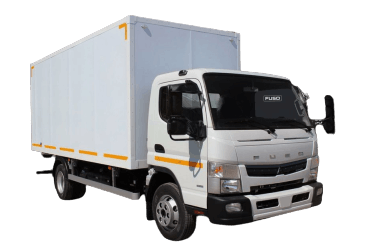

The 8th generation Mitsubishi Canter officially went on sale in 2012 and introduces a range of medium-duty trucks with a variety of body styles. Years of production: 2013, 2014, 2015, 2016, 2017, 2018, 2019. In 2020, the model was updated and is still being produced. In this publication, we will take a closer look at the description of the 8th generation Fuso Canter fuses and relays with block diagrams and their locations. show the fuse responsible for the cigarette lighter.
Due to the huge variety of modifications produced, there is no one general description of fuses and relays. There may be differences in the presented diagrams and your performance. Check the designations with your diagrams.
In the passenger compartment
The fuse and relay box is located inside the lower panel in front of the passenger seat. Remove the protective cover for access
Photo - example
| Diagram | |
|---|---|
|
|
| № | Amps / Description |
| F01 | 10A Starter |
| F02 | 10A Reserve |
| F03 | 10A Airbag SRS ECU |
| F04 | 10A Auxiliary Power Supply (IGN) |
| F05 | 30A Electric glass lift (driver) |
| F06 | 10A Tail light, LH trailer |
| F07 | 30A Electric glass lift (driver's assistant) |
| F08 | 20A Trailer headlight (rear fog lights, reversing lights) |
| F09 | 10A Instrument panel, combination switch, diagnostic connector |
| F10 | 30A ISS (ECU) |
| F11 | 30A air conditioner fan |
| F12 | 15A Audio system, inner dome |
| F13 | 10A Ignition Switch, ISS (ECU) |
| F14 | 10A Signal |
| F15 | 10A Audio system |
| F16 | 20A Cigarette lighter |
| F17 | 20A Fuel heater |
| F18 | 10A ABS ECU |
| F19 | 15A engine ECU |
| F20 | 10A ECU (IGN, ISS) |
| F21 | 10A Reserve |
| F22 | 15A Instrument panel, air conditioner, rear air conditioner relay |
| F23 | 10A Tail light, trailer RH |
| F24 | 10A DUONIC ECU |
| F25 | 10A Auxiliary Power Supply (ACC) |
| F26 | 10A Auxiliary Power Supply (BAT) |
| F27 | 20A Trailer stop signal lamp |
| F28 | 15A engine ECU |
| F29 | 20A SCR |
| F30 | 20A SCR |
| F31 | 20A ECU engine |
| F32 | 10A Air Conditioning Compressor |
| F33 | Reserve |
| F34 | 15A Fuel pump |
| F35 | Reserve |
| F36 | 20A DUONIC ECU |
| F37 | 10A Rear blower fan |
| F38 | 15A Rear Condenser Fan |
| F39 | Reserve |
| F40 | 20A Condenser fan |
| F41 | 30A Hydraulic unit |
| F42 | 10A Alternator (only vehicles with a battery equalizer ) |
| F43 | Reserve |
The fuse number F16 at 20A is responsible for the cigarette lighter.
Fuse box near the battery
An additional block is installed outside the car, next to the battery.
The photo.
Diagram & Decoding
- HF01 - 140A SAM
- HF02 - Reserve
- HF03 - 80A SAM
- HF04 - Reserve
- HF05 - 60A ECU Backlight
- HF06 - 40A Ignition relay
- HF07 - Reserve
- HF08 - 50A Hydraulic unit
- HF21 - Reserve
- HF22 - 40A SAM
Close the lid tightly so that no water gets inside!
