Eclipse Cross is a compact Japanese crossover SUV by Mitsubishi Motors, produced since 2017 and facelifted in 2020. In this article, we will examine in detail the fuse box diagrams for the 1st-generation Mitsubishi Eclipse Cross (body codes GK1W, GK2W, GK9W, GL3W; Mitsubishi GS platform) for the 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, and 2026 model years.
Here you will find the locations and photos of the fuse boxes. We will specifically highlight the fuses responsible for the cigarette lighter and the fuel pump.
Passenger Compartment

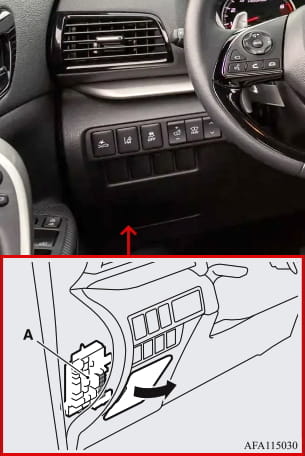

The fuse box is located on the left side of the instrument panel.

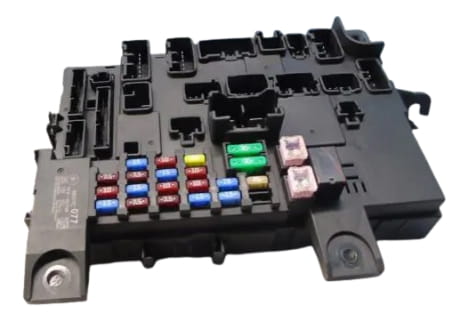

General view.

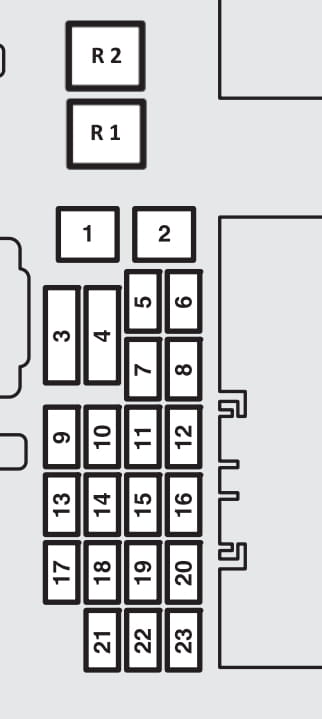

| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| 1 | Power windows | 30 A |
| 2 | Rear window defogger | 30 A |
| 3 | Heater blower motor | 30 A |
| 4 | Windshield wipers | 30 A |
| 5 | Central locking (power door locks) | 20 A |
| 6 | Rear fog lights | 10 A |
| 7 | Auxiliary 12 V power outlet | 15 A |
| 8 | Rear window wiper | 10 A |
| 9 | Power sunroof / panoramic roof | 20 A |
| 10 | Ignition switch / Keyless Operation System (KOS) | 10 A |
| 11 | Optional equipment | 10 A |
| 12 | Hazard warning lights | 10 A |
| 13 | Super All-Wheel Control (S-AWC) control module | 15 A |
| 14 | Brake lights | 15 A |
| 15 | Instrument cluster | 10 A |
| 16 | Supplemental Restraint System (SRS / Airbags) | 7.5 A |
| 17 | Audio system / Multimedia | 15 A |
| 18 | Engine Control Unit (ECU) / Control relay | 7.5 A |
| 19 | Interior lighting (dome lights) | 15 A |
| 20 | Backup lights | 7.5 A |
| 21 | Heated outside rearview mirrors | 7.5 A |
| 22 | Power outside rearview mirrors | 10 A |
| 23 | Cigarette lighter / Main 12 V power outlet | 15 A |
| 24 | Charging system (Alternator control) | 7.5 A |
| 25 | Power front seats | 30 A |
| 26 | Heated seats | 30 A |
| 27 | Spare | — |
| R1 | Heater blower motor relay | — |
| R2 | Central locking relay (double locking) | — |
Engine Compartment

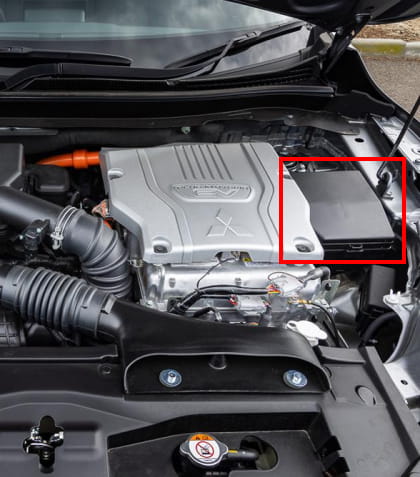

The fuse box is located on the left side. Remove the protective cover to access it.

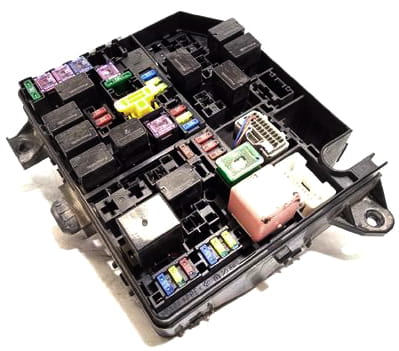

General view.

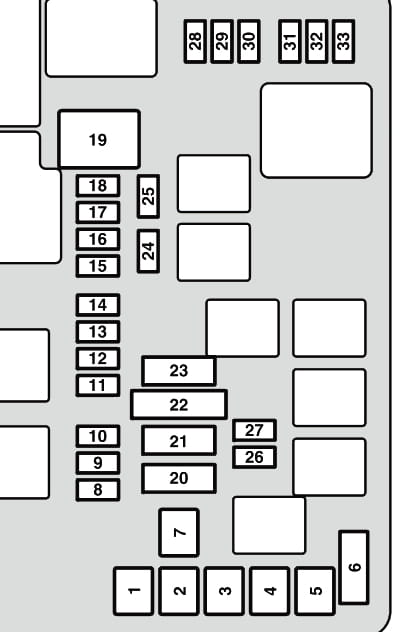

| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| 1 | Electric Parking Brake (EPB) | 30 A |
| 2 | Electric Parking Brake (EPB) | 30 A |
| 3 | Anti-lock Braking System (ABS / ESP) control module | 40 A |
| 4 | Anti-lock Braking System (ABS / ESP) control module | 40 A |
| 5 | Spare | — |
| 6 | Heated seats | 30 A |
| 7 | Starter solenoid | 30 A |
| 8 | Alternator | 7.5 A |
| 9 | Headlight washer | 20 A |
| 10 | Factory anti-theft alarm siren | 20 A |
| 11 | Transmission Control Module (AT / CVT) | 20 A |
| 12 | Horn | 10 A |
| 13 | Panoramic roof power sunshade | 20 A |
| 14 | Front fog lights | 15 A |
| 15 | Daytime Running Lights (DRL) | 10 A |
| 16 | A/C compressor clutch | 10 A |
| 17 | Engine Control Unit (ECU) | 7.5 A |
| 18 | Factory audio amplifier | 15 A |
| 19 | Radiator cooling fan motor | 40 A |
| 20 | Power driver seat | 30 A |
| 21 | Power passenger seat | 30 A |
| 22 | Body Control Module (ETACS) power supply circuit | 30 A |
| 23 | A/C condenser fan motor | 30 A |
| 24 | Intelligent Battery Sensor (IBS) | 7.5 A |
| 25 | EPB module / Adaptive Cruise Control (ACC) | 7.5 A |
| 26 | High beam (right headlight) | 10 A |
| 27 | High beam (left headlight) | 10 A |
| 28 | Turbocharger wastegate actuator | 20 A |
| 29 | Main relay (ECI) / Engine electronic components power supply | 20 A |
| 30 | Fuel pump | 15 A |
| 31 | Ignition coils | 10 A |
| 32 | Fuel injectors | 20 A |
| 33 | Electronic Throttle Valve (ETV) | 15 A |
| A | Horn relay | — |
| B | Window defogger relay | — |
| C | Front fog light relay | — |
| D | Spare | — |
| E | Engine control system main relay | — |
| F | Low beam relay | — |
| G | Headlight washer relay | — |
| H | Heated seat relay | — |
| I | High beam relay | — |
| J | Engine cooling fan relay | — |
| K | Heated steering wheel relay | — |
| L | Engine control system relay (ignition/starter circuit) | — |
| M | Engine control system relay (injector/throttle circuit) | — |
| N | A/C compressor clutch relay | — |
| O | Factory alarm system siren relay | — |
| P | A/C condenser fan relay | — |
