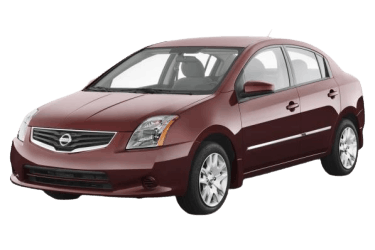

In this article, we will take a detailed look at the fuse diagrams for the Nissan Sentra car (sixth generation / B16 index): 2006, 2007, 2008, 2009, 2010, 2011, 2012 of release.
Fuses number 7 and number 18 in the cabin block are responsible for the cigarette lighter sockets.
In the engine compartment
Under the hood are two fuse boxes (#1 / #2). The high power fuse panel (#3) is located on the positive battery terminal.
Fuse Box #1
General view.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Amps |
| R1 | Rear window heating | |
| R2 | Engine control module (ECM) | |
| R3 | Headlights (low beam) | |
| R4 | Front fog lights | |
| R5 | Starter | |
| R6 | Cooling fan 2 | |
| R7 | Cooling fan 3 | |
| R8 | Cooling fan 1 | |
| R9 | Ignition | |
| 32 | empty | — |
| 33 | empty | — |
| 34 | High beam headlights, daytime running light system | 10 |
| 35 | Left high beam headlight, daytime running light system | 10 |
| 36 | Parking lamp, position lamps, tail lamp, lighting | 10 |
| 37 | Parking lamp, position lamps, tail lamp | 10 |
| 38 | empty | — |
| 39 | Front Wiper Relay, Front Wiper Enable Relay | 30 |
| 40 | Low beam headlights, daytime running light system | 15 |
| 41 | Low beam headlights, daytime running light system | 15 |
| 42 | A/C relay | 10 |
| 43 | empty | — |
| 44 | empty | — |
| 45 | empty | — |
| 46 | Rear defroster relay | 15 |
| 47 | Rear defroster relay | 15 |
| 48 | Fuel pump fuse | 15 |
| 49 | Transmission Control Module (Power Supply), Secondary Pressure Sensor Solenoid Valve, CVT Warning Light, CVT Primary Speed Sensor (RPM Sensor) | 10 |
| 50 | Anti-lock braking system (ABS) | 10 |
| 51 | Heated oxygen sensor | 10 |
| 52 | Throttle control relay | 15 |
| 53 | Engine Control Module (ECM) Relay, Nissan Anti-Theft System, Transmission Control Module (Power Supply), CVT Warning Lamp, Backup ECM Power Supply | 20 |
| 54 | Ignition system function, air-fuel ratio sensor | 10 |
| 55 | Injectors, fuel ignition system | 10 |
| 56 | Front fog lamp | 15 |
Fuse Box #2
Access example.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Amps |
| R1 | Horn (beep) | |
| R2 | Daylight system 2 | |
| 24 | empty | — |
| 25 | Horn, remote keyless entry system, smart key system, vehicle security system (theft warning) | 10 |
| 26 | Charging system | 10 |
| 27 | Daytime running light system | 10 |
| 28 | Rear window heating | 10 |
| 29 | empty | — |
| 30 | Heated seat | 20 |
| 31 | Audio, vehicle information and integrated switching system, audiovisual communication system | 20 |
| F | Steering with electronic components | 60 |
| G | Anti-lock braking system (ABS) | 30 |
| H | Anti-lock braking system (ABS) | 30 |
| I | empty | — |
| J | Low Tire Pressure Warning System, Sunroof, Power Door Lock, Daytime Running Lights, Front Fog Lights, Turn Signal & Hazard Lights, Combination Switch, Parking Light, Parking Lights, Tail Light, Warning Signal, Lighting, Remote Keyless Entry System, Smart Key System, Trunk Lid Release Module, Handsfree Phone Call, Vehicle Security System (Theft Alert), Nissan Anti-Theft System, Power Window, Heated Rear Window, Interior Lamps, Trunk Lamp, Wiper and windshield washer, vehicle information and integrated switching system, audiovisual system fuse: "9" | 50 |
| K | Cooling fan | 40 |
| L | Cooling fan | 40 |
| M | Starting system, ignition switch | 40 |
|
||
| R1 | Horn | |
| R2 | Daytime running light system 2 | |
| R3 | Radiator fan 5 | |
| R4 | Daytime running light system | |
| R5 | Cooling fan 4 | |
Power fuse links
Description:
- A - Starting system, charging system, fuses: "E", "D" / 225A;
- B - Ignition relay (fuses: "48", "49", "50", "51", "54", "55") / 80A;
- C - Front Fan Motor Relay (Fuse: "10", "11"), Auxiliary Relay (Fuses #5, 6, 7, 17, 18, 19, 20, 21, 22/100A;
- D - Front Fog Light Relay (Fuse #56), Low Beam Relay (Fuses #40 & #41) Right Headlight On Relay, Left Headlight On Relay, Taillight Relay, Fuse #39 & #42/60A;
- E - Fuses: "25", "26", "27", "28", "30", "31", "F", "G", "H", "J", "K", "L" ”, “M” / 100A
In the passenger compartment
The fuse block is located on the driver's side. To access it, you need to dismantle the glove compartment.
General view of the block (front side).
| Diagram | ||
|---|---|---|
Front side. |
||
Backside. |
||
| No. | Description | Amps |
| 1 | empty | — |
| 2 | empty | — |
| 3 | empty | — |
| 4 | empty | — |
| 5 | Outside rear view mirrors, signal lamps, horn, CVT warning lamp | 10 |
| 6 | Combination meter, Remote keyless entry system, Headlight, Turn signal and hazard warning lamps, Front fog lamps, Parking lamps, License plate light, Tail lamp, Combination switch, Interior lighting, Audio system, Daytime running lamps, Hands-free phone, Security (Hear theft alarm), power windows, communication system, vehicle information and integrated switching system, smart key system, interior lamps and mirror lamps, luggage compartment lamp | 10 |
| 7 | Cigarette lighter socket #1 | 15 |
| 8 | Rear window heating | 10 |
| 9 | Warning horn, interior lighting, luggage compartment lamp, power door lock, smart key system, trunk lid release module | 10 |
| 10 | Heating system, manual air conditioning | 15 |
| 11 | Heating system, manual air conditioning | 15 |
| 12 | Lights, Malfunction Indicator Lamp, CVT Shift Lock System, Electronic Steering, Smart Key System, Headlights, Direction & Hazard Indicators, Low Tire Pressure Warning System, Horn, Daytime Running Light System, Handsfree Phone , remote keyless entry system, Nissan anti-theft system, front wiper and washer, front fog lamps, sunroof, combination switch, heating system, manual air conditioning, parking lamp, position lamps, tail lamp, interior lamps, lamp luggage compartment, vehicle information and integrated switch system, power window, heated rear window, audiovisual communication system,ASCD Brake Switch, Park/Neutral Position Switch, CVT Warning Light, Starting System, Heated Seats | 10 |
| 13 | Additional stability control | 10 |
| 14 | Reversing lamp, Instrument cluster, Intelligent key system, Headlight, Turn signal and hazard warning lamps, Lighting, Horn, Daytime running light system, Low tire pressure warning system, Electronic steering, Charging system, Warning lamps, Parking / Neutral, Position switch, ASCD indicator, CVT indicator lamp, malfunction indicator lamp, anti-lock brake system, overdrive switch, additional stability control system, audiovisual communication system | 10 |
| 15 | Front wiper and washer | 10 |
| 16 | QR: air-fuel ratio sensor, fuel ignition system, heated oxygen sensor | 15 |
| 17 | Audio system | 20 |
| 18 | Cigarette lighter socket #2 | 15 |
| 19 | Brake Lights, Combination Meter, Lighting, Power Door Lock, Brake Switch, Daytime Running Light System, Intelligent Key System, Headlight, Nissan Anti-Theft System, Turn Signals & Hazard Warning Lights, Vehicle Security System (Theft Warning), Electronic Steering , Horn, low tire pressure warning system, CVT warning lamp, heater, manual air conditioning, warning lamps, anti-lock brake system, ASCD indicator, interior / map lamps, vanity lamp, luggage lamp, audiovisual communication system, indicator faults Lamp, heated rear window, ASCD brake switch | 10 |
| 20 | Smart key system, AV communication system, vehicle information and integrated switch system, power door lock, remote keyless entry system, Nissan anti-theft system, trunk lid opener, car security system (theft warning), horn, combination switch, daytime running light system, front fog lamps, interior lamps, luggage compartment lamps, direction indicators and hazard warning lamps, parking lamp, marker lamps, tail lamp, ASCD brake switch | 10 |
| 21 | Electric door lock, horn, smart key system, remote keyless entry system, interior and trunk lights | 10 |
| 22 | Hands free phone | 10 |
| R1 | Auxiliary relay | - |
| R2 | Interior heating | - |
