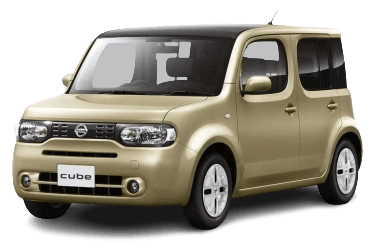

The Cube is a Japanese compact car with a highly recognizable cubic design, manufactured by Nissan. In this guide, we will detail the fuse box diagrams for the 3rd generation Nissan Cube (body code Z12; Nissan B platform): 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, and 2019 model years.
Here you will find the locations and photos of the fuse and relay boxes. We will specifically highlight the fuses responsible for the 12V power socket (cigarette lighter) and the fuel pump.
Passenger Compartment

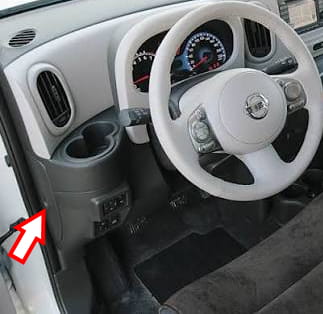

The interior fuse box is located on the left side of the instrument panel behind a plastic cover.
General view.

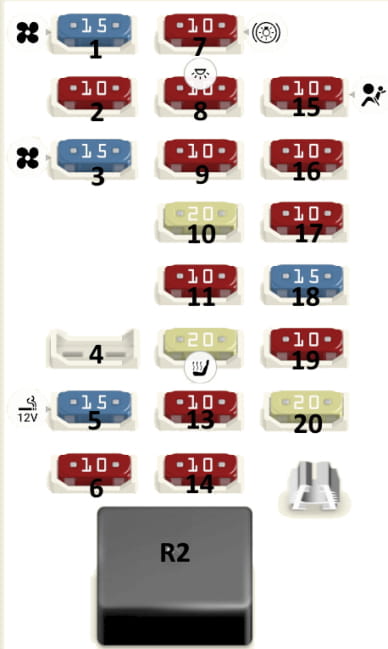

| Diagram | ||
|---|---|---|
|
||
| No. | Circuit / Component | Rating (A) |
| 1 | Blower motor | 15A |
| 2 | Air conditioning (climate control) | 10A |
| 3 | Blower motor | 15A |
| 5 | 12V power socket (cigarette lighter) | 15A |
| 6 | Power mirrors and audio system power | 10A |
| 7 | Stop lamps (brake pedal switch) | 10A |
| 8 | Interior dome/room lamps | 10A |
| 9 | Anti-theft system / Immobilizer (NATS) | 10A |
| 10 | Power door locks (Super Lock system) | 20A |
| 11 | Intelligent Key system / Push-button start | 10A |
| 12 | Heated front seats | 20A |
| 13 | Instrument cluster | 10A |
| 14 | Accessory power (ACC line) | 10A |
| 15 | Supplemental Restraint System (SRS airbags) | 10A |
| 16 | Accessory power (ACC line) | 10A |
| 17 | Instrument cluster | 10A |
| 18 | Windshield washer pump | 15A |
| 19 | Heated outside mirrors | 10A |
| 20 | Trailer tow socket (tow hitch module) | 20A |
| R1 | Blower motor relay | — |
| R2 | Accessory (ACC) relay | — |
Engine Compartment

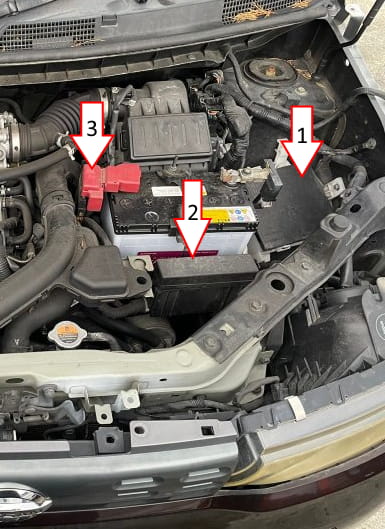

Under the hood, next to the battery, there is a main fuse and relay box (1), an additional relay box (2), and high-current fusible links are located on the positive battery terminal.
Fuse Box (1)
To access the fuses, release the fuse box retaining clip, lift the assembly, and turn it over.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit / Component | Rating (A) |
| F1 | Rear window defogger, heated outside mirrors | 15A |
| F2 | Rear window defogger, heated outside mirrors | 15A |
| F3 | Engine Control Module (ECM / engine management system) | 20A |
| F4 | Spare (not used) | — |
| F5 | Windshield wipers | 30A |
| F6 | Parking lamps / Tail lamps (RH) | 10A |
| F7 | Parking lamps / Tail lamps (LH) | 10A |
| F8 | Spare (not used) | — |
| F9 | A/C compressor magnetic clutch | 10A |
| F10 | Fog lamps | 15A |
| F11 | High beam (RH) | 10A |
| F12 | High beam (LH) | 10A |
| F13 | Low beam (LH) | 15A |
| F14 | Low beam (RH) | 15A |
| F15 | Engine Control Module (ECM / control circuits) | 10A |
| F16 | Back-up lamps | 10A |
| F17 | Anti-lock Braking System (ABS control unit) | 10A |
| F18 | Spare (not used) | — |
| F19 | Spare (not used) | — |
| F20 | Fuel pump | 15A |
| F21 | Ignition system (ignition coils) | 15A |
| F22 | Fuel injection system (fuel injectors) | 15A |
| F23 | Spare (not used) | — |
| F24 | Electronic Throttle Control (ETC) | 15A |
| R8 | Rear window defogger relay | — |
| R17 | Radiator cooling fan relay (low speed) | — |
| R18 | Radiator cooling fan relay (high speed) | — |
| R20 | Ignition main relay | — |
Relay Box (2)
General view.
| Diagram | ||
|---|---|---|
|
||
| Circuit | Component | Rating (A) |
| STOP LAMP | Stop lamps | 10A |
| DTRL | Daytime Running Lamps (DRL) | 10A |
| CVT CONT 2 | CVT Control Module (TCM) | 10A |
| HORN & ALT | Horn and alternator control circuit | 10A |
| F/L EPS | Electric Power Steering (EPS) | 60A |
| F/L HEAD LAMP WASHER | Headlamp washer | 30A |
| F/L ABS/VDC Sol | ABS/VDC actuator (solenoid power) | 30A |
| F/L RAD FAN | Radiator cooling fan (50A for 1.8L / 40A for 1.5L) | 50A / 40A |
| F/L IGN SW | Ignition switch circuit (main power) | 40A |
| F/L WDW | Power windows | 40A |
| F/L ABS/VDC MTR | ABS/VDC actuator (pump motor power) | 40A |
| AUDIO | Multimedia / Audio system | 15A |
| CVT CONT 1 | CVT Control Module (TCM) | 10A |
| BOSE | Bose audio system with amplifier (if equipped) | 15A |
| BOSE | Bose audio system with amplifier (auxiliary power) | 15A |
| DTRL | Daytime Running Lamps (DRL) | 10A |
| TAIL RH | Parking lamps / Tail lamps (RH) | 10A |
| TAIL LH | Parking lamps / Tail lamps (LH) | 10A |
| HORN | Horn relay | — |
