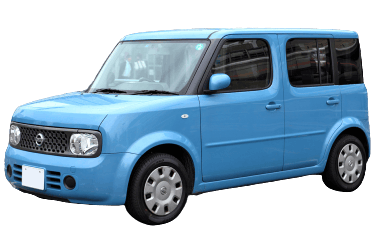

Fuses Nissan Cube (Z11), 2002–2008

The power circuits of this Japanese vehicle are protected by fuses. These protective elements are housed in fuse blocks located in the engine compartment and the passenger compartment.

Covered models include the Nissan Cube (chassis code Z11; Nissan B platform) 2002, 2003, 2004, 2005, 2006, 2007, and 2008 model years with the CR14DE gasoline engine.

In the Engine Compartment

Fuse block locations.

Fuse diagram for the block above the battery
No.	Description	Current, A
33	High beam, right headlamp	10
34	High beam, left headlamp	10
35	Right parking lamps	10
36	Left parking lamps	10
38	Windshield wipers	20
39	Low beam, left headlamp	15
40	Low beam, right headlamp	15
41	A/C compressor clutch	10
44	Automatic transmission control	20
45	Rear window defogger	15
46		15
47	Fuel pump	15
48	CVT control system	10
49	ABS	10
50	Reverse lamps	10
51	Throttle motor	20
52	Engine control module (ECM)	20
53	O2 sensor	10
54	Fuel injection system	10
55	Front fog lamps	20

Description of fuses in the block below the battery
Example photo.
Diagram.
No.	Assignment	Current, A
F/L-6	EPS system	60
F/L-7	4WD system	30
F/L-8	ABS	30
F/L-9	Power windows	40
F/L-11	Ignition switch	40
F/L-12	Radiator fan	40
F/L-13	ABS	40
21	Keyless 2	10
23	Alternator	10
24	Horn	10
25	Audio system	15
26	Rear wiper	15

In the Passenger Compartment

Fuse block location.

Cube Z11 passenger compartment fuse block diagram
No.	Protected circuit	Current, A
1	Washer motor	10
2	Instrument cluster	10
3	Airbags (SRS)	10
4	Electronic components	10
5	Stop lamps	10
6	Room lamps	10
7	Wiper de-icer	15
8	Electronic components	10
9	Blower motor	15
10		15
11	Power socket, cigarette lighter	15
12	Power mirrors and audio	10
13	Mirror heaters	10
16	Air conditioner	10
