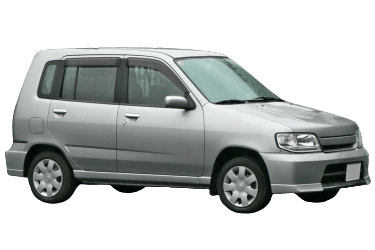

Fuses and relays Nissan Cube (Z10), 1998–2002

The electrical circuits of this Japanese vehicle are protected by fuses. These are housed in power distribution boxes located in the engine compartment and the passenger compartment.

This guide provides detailed fuse box diagrams for the 1998, 1999, 2000, 2001, and 2002 Nissan Cube (chassis code Z10; Nissan B platform) equipped with the CG13DE and CGA3DE gasoline engines.

Engine compartment

The fuse box is located near the battery.

Example photo.

Diagram
No.	Description	Rating, A
F/L - 1	ABS ACTR	30
F/L - 2	Radiator fan	30
F/L - 3	Power windows	25
F/L - 4	ABS MTR	30
F/L - 5	Ignition switch	30
F/L - 6	A/C condenser fan	25
31	CVT	10
32	Alternator	10
33	Right headlight	15
34	Left headlight	15
35	Audio system	10
36	Engine control module (ECM)	10

Relay box:

RAD FAN – Radiator fan relay 1
ABS MTR – ABS motor relay
RAD FAN 2 – Radiator fan relay 2
ABS ACTR – ABS actuator relay
CVT C – CVT control relay

Passenger compartment

The fuse box is located on the driver's side behind a plastic cover.

General view.

Cube Z10 passenger compartment fuse box diagram
No.	Description	Rating, A
1	Blank	-
2	Starter ST	10
3	Blank	-
4	Interior lights	10
5	Brake lights	10
6	Windshield wiper de-icer	15
7	Horn	10
8	Fog lights	15
9	Hazard warning lights	10
10	Tail lights	10
11	Turn signals	10
12	Instrument cluster	10
13	ABS system	10
14	Empty	-
15	Airbags	10
16	Engine control system	10
17	Fuel pump	15
18	Fuel injectors	10
19	Air conditioning	10
20	Not used	-
21	A/C blower motor	15
22	Radio	10
23	Cigarette lighter	15
24	Windshield wipers	20
25	Power mirrors and windshield wipers	10
26	Rear window defogger	15
