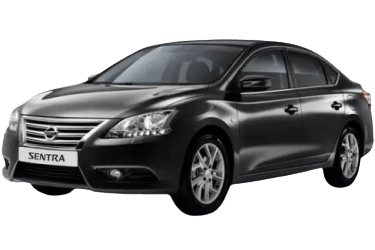

In this article, we will take a detailed look at the fuse diagrams for the Nissan Sentra car (seventh generation / index B17): 2013, 2015, 2016, 2017, 2018, 2019 of release.
Fuse number F1 in the passenger compartment is responsible for protecting the electrical circuit of the cigarette lighter.
In the engine compartment
There are two distribution boxes here, which are responsible for protecting the vehicle's electrical circuits.
Fuse box #1
It is located under the air duct and must be dismantled to access it.
Then, pressing 4 latches, remove the protective cover.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Amps |
| 1 | RR DEF - heated rear window | 20 |
| 2 | Not involved | - |
| 3 | EGI - Engine Control Module | 20 |
| 4 | Not involved | |
| 5 | FR WIPER - Front wiper | 30 |
| 6 | POS LAMPS R - right license plate light | 10 |
| 7 | POS LAMPS L - left license plate lamp | 10 |
| 8 | Not involved | - |
| 9 | A/C CLUTCH - Air Conditioning Compressor Electromagnetic Clutch | 10 |
| 10 | FR FOG LAMP - Fog lights | 15 |
| 11 | H/LAMP HI RH - right headlight (high beam) | 10 |
| 12 | H/LAMP HI LH - left headlight (high beam) | 10 |
| 13 | H/LAMP LO LH - left headlight (low beam) | 15 |
| 14 | H/LAMP LO RH - right headlight (low beam) | 15 |
| 15 | A/T ECU IGN - Automatic transmission sensor | 10 |
| 16 | REV LAMP IGN - Reversing light switch | 10 |
| 17 | ABS ECU IGN - ABS brake system | 10 |
| 18 | Not involved | - |
| 19 | Not involved | - |
| 20 | Fuel pump fuse Nissan Sentra | 15 |
| 21 | IGN COIL - Ignition Coil | 15 |
| 22 | INJECTOR - fuel injection system, injectors | 15 |
| 23 | Not involved | - |
| 24 | ETC - Accessories | 15 |
Fuse box #2
Located between the battery and the bumper. Release the latch and remove the protective cover.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Amps |
| R1 | Horn relay | - |
| 1 | Stop lamps | 10 |
| 2 | DTRL- Throttle assembly | 10 |
| 3 | CVT CONT 2 - Transmission control module | 10 |
| 4 | HORN & ALT - Horn and generator | 10 |
| 5 | EPS - power steering | 60 |
| 6 | HEAD LAMP WASHER - headlight washer | 30 |
| 7 | ABS/YDC Sol - ABS brake system | 30 |
| 8 | RAD FAN - Engine cooling radiator fan | 50 / 40 |
| 9 | Not involved | - |
| 10 | IGN SW - Ignition system | 40 |
| 11 | WDW - Power windows | 40 |
| 12 | ABS / VDC MTR - ABS braking system, body electrical equipment | 40 |
| 13 | Audio system (radio) | 15 |
| 14 | CVT CONT 1 - Transmission control module | 10 |
| 15* | Bose audio system (select models) | 15 |
| 16* | Bose audio system (select models) | 15 |
| 17 | Not involved | - |
| 18 | DTRL - Throttle assembly | 10 |
| 19 | TAIL RH - Tail light bulbs on the right side | 10 |
| 20 | TAIL LH - Taillight lamps on the left side | 10 |
In the passenger compartment
The fuse box is located at the end of the dashboard.
To gain access, pry up the cover with a screwdriver and remove it.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Amps |
| F1 | Nissan Sentra Cigarette Lighter Fuse | 15 |
| F2 | Not involved | - |
| F3 | Audio system, power rear-view mirror No. 1 | 10 |
| F4 | Audio system, power rear-view mirror No. 2 | 10 |
| F5 | IPDM IG2 - fuse box in the engine compartment | 10 |
| F6 | BLOWER MOTOR - Interior heating, heating motor | 15 |
| F7 | A/C - Air conditioning | 10 |
| F8 | BLOWER MOTOR - Interior heating, heating motor | 15 |
| F9 | ELEC - Additional electrical equipment | 10 |
| F10 | Not involved | - |
| F11 | METER - instrument cluster | 10 |
| F12 | TRAILER - trailer electrical equipment | 20 |
| F13 | ROOM LAMP - interior lighting and ceiling lamps | 15 |
| F14 | HEATED SEATS - heated seats | 10 |
| F15 | Push Eng Start - keyless engine start system | 15 |
| F16 | HEATED MIRORR - heating / heating of rear-view mirrors | 10 |
| F17 | Not involved | - |
| F18 | METER - instrument cluster | 10 |
| F19 | ELEC - Additional electrical equipment | 10 |
| F20 | WASHER - Windshield washer | 10 |
| F21 | AIR BAG - Airbag | 10 |
