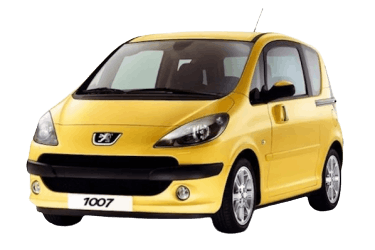

The 1007 is a small three-door car characterized by interchangeable interior trim elements and a four-post design with two sliding doors. It shares a common platform with the Peugeot 206, Citroën C2 and C3. In this article we will understand in detail fuse box diagrams Peugeot 1007 (1st generation; KM body) 2004, 2005, 2006, 2007, 2008, 2009, 2010 years of manufacture.
Here you will find the locations and photos of the mounting blocks. Also, we will separately mark the fuses responsible for the cigarette lighter and the fuel pump.
In the passenger compartment
Located on the driver's side, at the bottom of the dashboard.
Type 1
2007-2010 models.
General view of the Peugeot 1007 interior fuse box.
Diagram
No.
Description
A
F1
Rear window cleaner.
15
F3
Airbag and pyrotechnic belt tensioner system microprocessor.
5
F4
Diagnostic connector
Clutch sensor
Crankshaft flywheel position sensor
Diesel particulate filter additive pump.
10
F5
Power windows
Sunroof
30
F6
Empty
F7
Interior lighting
Glovebox illumination.
5
F8
Tire pressure sensor
Folding electric mirrors
Paddle shifters
Multifunction display
Security alarm system microprocessor
Car radio
Radiotelephone
CD changer.
20
F9
Car stereo
Peugeot 1007 cigarette lighter fuse
12V socket (max. 100W).
30
F10
Alarm siren
15
F11
Diagnostic connector
Ignition switch low current circuit
Electrical locking latches.
15
F12
Airbag and pyrotechnic belt tensioner system microprocessor - Rain / light sensor.
Parktronic microprocessor - "Sésame" microprocessor and door switches - Instrument cluster - Seatbelt indicator lamp panel - Air conditioning control panel - Headlight angle corrector - Hands free headset.
15
F15
Locking / Superlocking / Unlocking the doors
30
F17
Heated rear window and exterior mirrors.
40
SH
PARC shunt.
Type 2
2004 - 2006 models.
General view.
Diagram
No.
Decoding
A
1
Power supply for diagnostic socket - Motorized locks - "Sezame" door microprocessor - Steering wheel mounted controls
15
4
Clock - Multifunction display - Audio equipment - Audio system / telephone - Alarm system
20
5
Alarm siren
15
6
Diagnostic connector - Steering wheel angle sensor - Seat belt buckle control unit
10
7
Alarm unit - Rain and light sensor
15
9
Towbar outlet
30
10
Heated rear window and exterior mirrors
40
11
Rear wiper
15
12
Power windows - sunroof
30
14
Controls on the steering wheel - Airbags
10
15
Instrument panel - Multifunction display - Audio equipment - Audio / telephone - CD changer - Air conditioning - Parktronic - "Sezame" door microprocessor.
15
16
Central locking - automatic locking
30
20
Right brake light
10
21
Left brake light, Center brake light
15
22
Interior lighting
Glove box illumination
Cigarette lighter fuse
Electric exterior mirrors
Factory equipment for audio equipment
License plate illumination
20
SH
shunt
-
FH1
Door microprocessor "Sezame" left side
40
FH2
Door microprocessor "Sezame" right side
40
FH3
Empty
-
FH4
Audio amplifier
20
FH5
Empty
-
In the engine compartment
Located on the left side of the engine compartment, behind the protective cover.
Type 1
2007-2010 models.
General view.
Diagram
No.
Decoding
A
F1
Engine microprocessor power supply and cooling fan switch - CMM main protection relay - Injection system microprocessor (diesel) - Injector pump (diesel) - Heated air solenoid valves (diesel) - Air flow sensor (diesel).
20
F2
Horn (beep)
15
F3
Front and rear window washer pump.
10
F4
Headlight washer pump.
20
F5
Peugeot 1007 fuel pump fuse
15
F6
Power steering microprocessor
Diesel water sensor
Vehicle speed sensor.
10
F7
Protection and switching unit (diesel) - Coolant level sensor (diesel).
Components of the electronic engine management system (gasoline: ignition coils, oxygen sensors, injectors, electrovalves of adsorber unloading and fuel supply regulation system, electronic thermostat) (diesel: injection microprocessor, air flow sensor, high-pressure fuel pump, fuel pressure regulator, electrovalves of exhaust gas recirculation system and turbocharger pressure regulator) - "blow-by" heaters.
30
F11
Climate control system fans.
40
F12
Windshield wiper (normal and fast modes).
30
F13
(+ from ignition lock) Intelligent switching unit.
40
F14
Diesel fuel heater.
30
F15
Right high beam headlamp.
10
F16
Left high beam headlamp.
10
F17
Left dipped beam headlamp.
15
F18
Right dipped beam headlamp.
15
High-power "MAXI" type fuses are located on the side.
MF1
Engine cooling fan.
50
MF2
ABS / ESP brake computer.
30
MF3
30
MF4
Power supply to the intelligent switching unit.
60
MF5
60
MF6
Microprocessor gearbox "2 Tronic".
30
MF7
Cabin fuse box
Door microprocessor "Sésame".
80
MF8
Electric power steering.
80
Type 2
Models 2004 - 2006 release.
General view.
Diagram
No.
Appointment
A
1
Preheating module (Diesel) - Fuel water sensor (Diesel) - Back-up lamp - 2 Tronic transmission control module
10
2
Fuel pump fuse
15
3
ABS / ESP control unit
10
4
Injection and power steering control module - Brake and clutch switches - 2 Tronic transmission relay - Additional heating unit (Diesel) - Engine coolant level sensor (Diesel)
10
5
Empty
-
6
Front fog lights
15
7
Empty
-
8
Blower fan relay - injection control unit
20
9
Left dipped beam headlamp
15
10
Right dipped beam headlamp
15
11
Left high beam headlamp
10
12
High beam headlamp, right
10
13
Horn (beep)
15
14
Front and rear wiper pumps
10
15
Ignition coil (gasoline) - Solenoid valves - Purge tank (gasoline) - Oxygen sensors (gasoline) - Injectors (gasoline) - Air flow sensor (Diesel) - Injection pump (Diesel) - High pressure control (Diesel)
