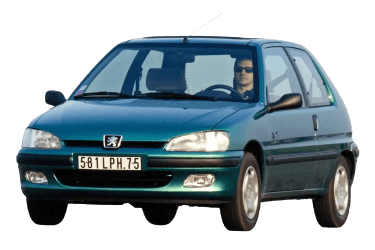

The Peugeot 106 is a supermini car produced from 1991 to 2003. The smallest model of the French car company was initially produced as a 3-door hatchback, but in 1992 production of 5-door models began. It is the predecessor of the 107 model.
In our material, we will analyze in detail the fuse circuits of the 1st generation Peugeot 106 (1A / 1C body) 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002 and 2003 release. Here are the locations and photos of the mounting blocks. Separately, we note the fuse responsible for the cigarette lighter.
In the passenger compartment
Located on the driver's side, behind a plastic cover.
General view of the fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Appointment | A |
| 1 | Headlight washer. corrector of the vertical direction of light beams of headlights. | 5 |
| 2 | Ventilation and heating system fan. | 25 |
| 3 | A / C compressor, air recirculation air conditioner switch, rear window and seat heater switch. | 15 |
| 4 | Car radio, local illumination, vanity mirror illumination. | 15 |
| 5 | Heated rear window, Peugeot 106 cigarette lighter fuse, horn. | 30 |
| 6 | Emergency light signaling. | 10 |
| 7 | Reversing lights, warning lights and indicators on the dashboard, tachometer, anti-theft alarm switch, ECU | 10 |
| 8 | Car radio, central electric door lock, electronic anti-theft code, alarm, dashboard clock, air conditioning ECU, ceiling lamp, trunk lighting. | 20 |
| 9 | Windshield wiper switch, side light forgotten beep, rear window wiper motor, power window and electric mirrors switch, dashboard, door luggage pockets lighting. | 30 |
| 10 | Powered by electric glass front door lifters. | 30 |
| 11 | Rear fog lamp and indicator on the dashboard. | 5 |
| 12 | Rear left and it doesn't matter right side lights. dashboard illumination (rheostat). | 5 |
| 13 | License plate lighting, rear right side marker lights, ignition switch, heating and ventilation control panel, car radio, seat heating. | 5 |
In the engine compartment
In the engine compartment, near the battery, there are two fuse boxes.
Fuse box #1
General view.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| 1 | Fuel injection system | 10/15 |
| 2 | Engine cooling fan | 30 |
| 3 | Braking system ABS | 10/30 |
| 4 | Engine cooling fan | 30 |
| 5 | Braking system ABS | 10/30 |
| 6 | front fog lights | 15 20 |
| 7 | High beam | 15 |
| 8 | headlight washer | 30 |
| 9 | Peugeot 106 fuel pump fuse | 10 |
| 10 | Automatic transmission | 15 20 30 |
| 11 | Lambda probe | 5 |
| 12 | Left high beam headlamp | 10 |
| 13 | High beam headlight, right | 10 |
| 14 | Left low beam headlamp | 10 |
| 15 | RH low beam headlamp | 10 |
Fuse box #2
Diagram.
| No. | Appointment | A |
| MF1 | Light switch | 20 |
| MF2 | Ignition supply (starter) | 80 |
| MF3 | Ignition power supply | 40 |
| MF4 | Battery + power to fuse box | 40 |
