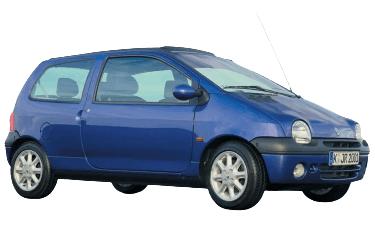

The Renault Twingo is an A-segment city car introduced in 1993. Most electrical supply circuits in this French hatchback are protected by fuses, while high-current consumers are connected via relays. Circuit protection elements are located in distribution boxes in both the passenger compartment and the engine compartment.
Fuse box diagrams for first-generation Renault Twingo (chassis code C06; X06 platform) models produced from 1998 to 2012 are detailed below.
Engine Compartment
One of the fuse boxes is located in the engine compartment.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| Fuses | ||
| 9 | Sequential transmission | 30 |
| 10 | Not used | - |
| 11 | Air conditioning system | 40 |
| 12 | Anti-lock braking system (ABS) | 30 |
| 13 | Electric power steering (EPS) | 30 |
| 14 | Passenger compartment fuse box supply | 60 |
| 15 | 60 | |
| 16 | Sequential transmission | 20 |
| 17 | Anti-lock braking system (ABS) | 30 |
| 18 | Fuel injection system | 10 |
| 19 | Not used | - |
| 20 | Fuel injection system | 25 |
| 21 | Fuel injection system | 50 |
| Relays | ||
| 1 | Sequential transmission hydraulic pump relay | 50 |
| 2 | Engine cooling fan assembly (with A/C) | 50 |
| 3 | Low-speed engine cooling fan (with A/C) | 25 |
| 4 | Not used | - |
| 5 | Air conditioning compressor clutch | 25 |
| 6 | Engine cooling fan assembly (without A/C) | 25 |
| 7 | Fuel injection cut-off relay | 25 |
| 8 | Fuel pump relay | 25 |
Passenger Compartment
To access the fuse box, pull the glove box toward you.
General overview.
| Passenger Compartment Fuse Box Assignment | ||
|---|---|---|
|
||
| No. | Description | A |
| 1 | Engine harness junction block | 20 |
| 2 | Rear window wiper, reverse lights, windshield washer pump | 15 |
| 3 | Seatbelt pretensioners, airbags, engine immobilizer | 10 |
| 4 | Audio system / radio | 10 |
| 5 | Heated rear window | 20 |
| 6 | Fuel injection system | 20 |
| 7 | Climate control / heater blower fan | 20 |
| 8 | Brake lights | 15 |
| 9 | Windshield wipers | 15 |
| 10 | Rear fog lights | 10 |
| 11 | Anti-lock braking system (ABS) | 10 |
| 12 | Cigarette lighter, sunroof | 25 |
| 13 | High-beam headlights | 15 |
| 14 | Right high-beam headlight | 15 |
| 15 | Power windows | 30 |
| 16 | Left low-beam headlight | 15 |
| 17 | Right low-beam headlight | 15 |
| 18 | Left side / parking lights | 10 |
| 19 | Right side / parking lights | 10 |
| 20 | Turn signals, rear fog light, body control module (UCH) | 25 |
| 21 | Horn, engine immobilizer | 10 |
| 22 | Interior lighting, diagnostic socket (OBD) | 10 |
| 23 | Electric power steering (EPS) | 10 |
| 24 | Not used | - |
| 25 | Central power locking, power door mirrors | 15 |
| 26 | Not used | - |
| 27 | Sequential transmission control module | 2 |
| Relays located adjacent to the main unit | ||
|
||
| 1 | Not used | |
| 2 | Front fog lights | |
An auxiliary relay board is located under the dashboard, adjacent to the pedals.
|
|
| No. | Function |
| A | Sequential transmission |
| B | Not used |
| C | Sequential transmission starter interlock |
| D | Not used |
| E | Not used |
