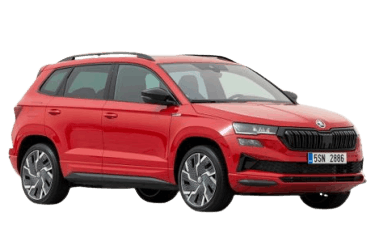

Skoda Karoq is a compact crossover that has been produced since 2017 by the Czech automaker. The car is based on Volkswagen's modular MQB platform, and came to replace the Yeti. In this article, we will take a detailed look at the fuse box diagrams for the Skoda Karoq (codename NU7) 2017, 2018, 2019, 2020, 2021 years of manufacture with gasoline and diesel engines.
Here you will find the locations and photos of distribution boxes. The fuses responsible for the “Cigarette lighter” and “Fuel Pump” are highlighted in bold.
In the engine compartment
It is located near the battery. The protective cover must be removed to access the unit.
General view.
| Diagram | ||
|---|---|---|
|
||
| No. | Decryption | A |
| 1 | ABS system -J104- | 25 |
| 2 | ABS system -J104- | 40 60 |
| 3 | Engine control module -J623- (for petrol engines) | 15 |
| Engine control module -J623- (for diesel engines) | 30 | |
| 4 | For diesel engines: engine electronics, reducing agent dosing system relay -J963-, warm-up time automation control module -J179-. | 7.5 |
| In gasoline engines - engine electronics | 10 | |
| 5 | engine electronics (for diesel engines) | 10 |
| empty (for gasoline engines) | ||
| 6 | Brake light switch -F- | 7.5 |
| 7 | Engine electronics | 10 |
| 8 | lambda probe -G39- (not valid for engine code CRVC) | 15 |
| Lambda probe after catalytic converter -G130- | ||
| NOx sensor control unit -J583- | ||
| NOx sensor control unit 2 -J881- (for diesel engines) | ||
| lambda probe -G39- | ||
| lambda probe behind the exhaust gas catalyst -G130- (gasoline engines) | ||
| 9 | ignition (for gasoline engines) | 20 |
| 10 | fuel pump fuse -J538- (for petrol engines) | 15 |
| Fuel pump control unit -J538- (for diesel engines) | 20 | |
| 11 | heating element of the auxiliary air heater -Z35- | 40 |
| 12 | heating element of the auxiliary air heater -Z35- | 40 |
| 13 | additional hydraulic pump 1 for transmission oil -V475- | 30 |
| 14 | Heated windscreen -Z2- | 50 |
| 15 | Horn relay -J413- | 15 |
| High tone horn -H2- | ||
| Low tone horn -H7- | ||
| 16 | Not occupied | - |
| 17 | Main relay -J271- | 7.5 |
| Engine control module -J623- | ||
| 18 | In vehicles with independent heating / with start-stop system: Battery management and control module -J367- | 7.5 |
| 19 | Relay modules for wiper motor -J368- / -J369- | 30 |
| Driver side wiper motor -V216- | ||
| 20 | Alarm horn -H8- | 7.5 |
| 21 | In vehicles with dual clutch transmission 0GC, 0D9, 0CW: transmission mechatronic with dual clutch transmission -J743- | 15 |
| 22 | Engine control module -J623- | 5 |
| 23 | Starter -B- | 30 |
| 24 | Not occupied | - |
| 25 | Not occupied | - |
| 26 | Not occupied | - |
| 27 | Not occupied | - |
| 28 | Not occupied | - |
| 29 | Not occupied | - |
| 30 | Not occupied | - |
| 31 | Brake actuator vacuum pump -V192- (with engine code DKRF) | 15 20 |
| ---------------- | ||
| Brake actuator vacuum pump -V192- | ||
| vacuum pump relay -J318- (with engine code DADA) | ||
| 32 | Not occupied | - |
| 33 | Not occupied | - |
| 34 | Not occupied | - |
| 35 | Not occupied | - |
| 36 | Not occupied | - |
| 37 | Auxiliary heater control module -J364- | 20 |
| 38 | Empty | - |
| SA1 | Terminal 30/1 power supply | 125 |
| SA2 | Alternator with voltage regulator -CX1- | 400 |
| A | Battery -A- | - |
| SA3 | Power steering -J500- | 80 |
| SA4 | Terminal 30/2 power supply | 80 |
| SA5 | Radiator fan -J293- | 50 |
Assignment of the relay modules in the block:
R1. | Starter relay 1 -J906-
R2. | Starter relay 2 -J907-
R3. | Siren relay -J413-
R4. | High heating relay -J360-
R5. | Main relay -J271- (petrol) / Power relay terminal 30 -J317- (diesel)
R6. | Glow plug -J179- (gasoline)
R7. | Low heat output relay -J359- (Diesel)
R8. | Engine component supply relay -J757- (Diesel)
R11.| Windshield heater relay
In the passenger compartment
LHD models: located behind the driver's side duffel box.
RHD models: is located behind the glove box on the passenger side.
General view of the Skoda Karoq interior fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| 1 | Restorer heating control module -J891- / SCR (AdBlue) system | 30 |
| 2 | Steering wheel heating -Z36- | 10 |
| 3 | Reserve | - |
| 4 | Reserve | - |
| 5 | Information bus interface diagnostics -J533- | 5 |
| 6 | Anti-theft device sensor -G578- | 5 |
| 7 | Rear window heater relay -J9- | 10 |
| Heater / air conditioning control -EX21- | ||
| Preselector lever sensor control unit -J587- | ||
| Radio receiver for independent heater -R64- | ||
| 8 | Air humidity, rain and light detection sensor -G823- / -G355- | 10 |
| Light switch -E1- | ||
| Ambient lighting in instrument cluster -L292- / -L293- / -L294- / -L295- | ||
| Interior lighting in driver's door -W86- | ||
| Interior lighting in passenger door -W87- | ||
| Switch module 2 for central panel -EX30- | ||
| Turn signal headlamp control module and headlamp angle adjuster -J745- | ||
| 9 | Steering column electronics control module -J527- | 5 |
| 10 | Multimedia system control unit -E380- | 10 |
| 11 | Vehicle electrical control module -J519- | 40 |
| 12 | Information electronics control module 1 -J794- | 20 |
| 13 | left front seat belt -NX10- | 25 |
| 14 | Fresh air intake fan control module -J126- | 40 |
| 15 | Electronic steering column lock control unit -J764- | 10 |
| 16 | Autodiagnostic output -U31- / USB charging connector 1 -U37- | 10 |
| 17 | Control module in combined devices -J285- / Emergency call and communication module -J949- | 5 |
| 18 | Rearview camera -R189- | 7.5 |
| 19 | Access and start system interface -J965- | 7.5 |
| 20 | Pumping device for dosing reducing agent -GX19- | 7.5 |
| 21 | All-wheel drive module -J492- | 15 |
| 22 | Trailer recognition -J345- | 15 |
| 23 | Sunroof -J245- | 30 |
| 24 | Vehicle electrical control module -J519- | 40 |
| 25 | For left-hand drive only: Door control unit, driver's side -J386- |
30 |
| rear left window elevator motor -V26- | ||
| Rear left door module -J388- | ||
| ------------- | ||
| For right-hand drive only: | ||
| Passenger side door module -J387- | ||
| rear left window elevator motor -V26- | ||
| Rear left door module -J388- | ||
| 26 | Vehicle electrical control module -J519- | 25 |
| 27 | Vehicle electrical control module -J519- | 30 |
| 28 | Trailer recognition control module -J345- | 25 |
| 29 | Reserve | - |
| 30 | Reserve | - |
| 31 | Reserve | - |
| 32 | Parktronic -J446- | 7.5 |
| 33 | Airbags -J234- | 5 |
| 34 | Light switch -E1- | 7.5 |
| front passenger side airbag deactivation indicator lamp -K145- | ||
| USB charging connector 1 -U37- | ||
| Heated rear seats -J786- | ||
| AUTO HOLD button -E540- | ||
| Reverse lights -F4- | ||
| Interior rear view mirror with automatic shielding -Y7- | ||
| Cooling circuit pressure sensor -G805- | ||
| 35 | Autodiagnostic output -U31- / driver auxiliary systems front camera -R242- | 10 |
| 36 | Right LED headlight -A27- | 10 |
| 37 | Left LED headlight -A31- | 10 |
| 38 | Trailer recognition -J345- | 25 |
| 39 | For left hand drive only: | |
| Door control unit, front passenger side -J387- | 30 | |
| rear right window elevator motor -V27- | ||
| Rear right door control unit -J389- | ||
| ----------------------- | ||
| For right-hand drive only: | ||
| Door control unit, driver's side -J386- | ||
| rear right window elevator motor -V27- | ||
| Rear right door -J389- | ||
| 40 | 12 V sockets -U5- / -U18- / -UX3- | 20 |
| Skoda Karoq cigarette lighter fuse -U1- | ||
| rear cigarette lighter -U9- | ||
| 41 | Right front seat belt -NX11- | 25 |
| 42 | Vehicle electrical control module -J519- | 40 |
| 43 | Soundpaket audio system -J525- | 30 |
| 44 | Trailer recognition control module -J345- | 15 |
| 45 | Driver's seat adjustment -J810- | 15 |
| 46 | Inverter with outlet, 12 V-230 V -U13- | 30 |
| 47 | Rear window wiper -V12- | 15 |
| 48 | Lane change assistant control units -J769- and -J770- | 10 |
| 49 | Clutch position sensor -G476- | 5 |
| Start relay -J906- and -J907- | ||
| 50 | Rear hood control module -J605- | 30 |
| 51 | Rear seat heater control module -J786- | 25 |
| 52 | Reserve | |
| 53 | Rear window heater -Z1- | 30 |
