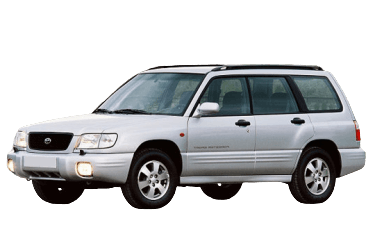

Although the Subaru Forester is comparatively small, its handling and driving qualities inherited from the sporty Legacy and Impreza, coupled with the excellent all-wheel drive provided by the proprietary all-wheel drive system, made this car one of the hits. In the US market, the Forester was introduced in 1997 as a lighter and more compact alternative to sport utility vehicles. All models for the American market were equipped with a 2.5-liter 4-cylinder boxer engine only.
The power supply circuits of the Japanese crossover are protected by fuses. The elements are installed in blocks that are located in the engine compartment and in the passenger compartment. Considered fuse diagrams Subaru Forester (SF) 1st generation 1997, 1998, 1999, 2000, 2001 and 2002 release.
In the engine compartment
Fuse box located near the battery. The location is shown in the picture above.
General form.
| Diagram | ||
|---|---|---|
|
||
| No. | Description of fuses | A |
| 20 | Radiator cooling fan (main) | 20 |
| 21 | Radiator cooling fan (sub) | 20 |
| 22 | Heated rear window | 20 |
| 23 | Hazard Alert, Horn | 15 |
| 24 | Indicator, SRS airbag warning light | 15 |
| 25 | Automatic transmission control unit | 10 |
| 26 | alternator | 10 |
| 27 | Headlight (right side) | 15 |
| 28 | Headlight (left side) | 15 |
| 29 | Light switch | 20 |
| 30 | Clock, Interior lighting | 15 |
In the passenger compartment
Fuse box located on the driver's side at the bottom of the dashboard.
Photo is an example of a block.
| Diagram | ||
|---|---|---|
|
||
| No. | Decoding | A |
| 1 | Heater fan | 15 |
| 2 | 15 | |
| 3 | Door lock | 15 |
| 4 | Forester Cigarette Lighter Fuse , Remote Controlled Rearview Mirrors | 20 |
| 5 | Rear light, side light | 10 |
| 6 | SRS airbag | 15 |
| 7 | Fog lights | 15 |
| 8 | ABS solenoid | 20 |
| 9 | Radio-clocks | 15 |
| 10 | Empty | - |
| 11 | Engine ignition system, SRS airbag | 15 |
| 12 | Adjusting the brightness of the lighting | 10 |
| 13 | Wiper de-icer | 15 |
| 14 | Empty | - |
| 15 | Windshield wiper and washer, Rear window wiper and washer | 20 |
| 16 | Stop signal | 20 |
| 17 | Air conditioning | 15 |
| 18 | Reversing light, Cruise control, ABS control | 15 |
| 19 | Rear accessory socket, seat heating | 20 |
