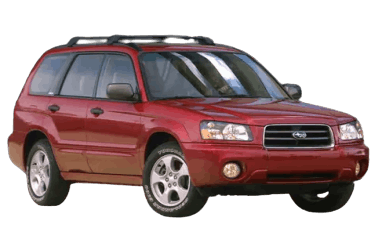

The Japanese company unveiled a new 2003 Forester at the Chicago Auto Show in 2002, which went on sale in the US market in mid-May. The Forester has retained the familiar proportions while retaining the same aesthetic, but the overall look has become noticeably "softer" due to smoother lines. The very expressive front end is still responsible for the vehicle's individuality. At the rear, Forester has triangular lights and larger glass. The marker lamps of the body have practically not changed, but the interior has been significantly redesigned, the driver's seating position, visibility, range of adjustments have improved, rear passengers received more space. The cars are still made in Japan. The Forester for the USA now offers a turbocharged version in addition to the 2.5-liter naturally aspirated boxer, which increases power from 165 to 210 hp.
Considered diagrams Subaru Forester (SG5, SG69, SG9L) 2nd generation 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 release.
In the engine compartment
Fuse box located on the left side of the engine compartment, near the battery.
General view of the block.
| Diagram | ||
|---|---|---|
|
||
| No. | Decoding | A |
| F1 | Spare | 30 |
| F2 | Spare | 30 |
| F3 | Engine control module | 30 |
| F4 | ABS / ESP system (ABS) | 30/50 |
| F5 | Generator | 120 |
| F6 | Heated rear window | 20 |
| F7 | Spare | 15 |
| F8 | Spare | 15 |
| F9 | Electronic gearbox control unit | 10 |
| F10 | Generator | 10 |
| F11 | Spare | 15 |
| F12 | Left headlight | 15 |
| F13 | Parking lights | 20 |
| F14 | Spare | 15 |
| F15 | Empty | - |
| F16 | Exhaust air system | 10 |
| F17 | Discharge air pump | 60 |
| F18 | Spare | 30 |
| F19 | Spare | 30 |
| F20 | Passenger compartment fuse / relay box | 50 |
| F21 | 50 | |
| F22 | Ignition Lock Chains | 50 |
| Relay | ||
| 1 | Empty | |
| 2 | Exhaust air pump relay | |
| 3 | Empty | |
| 4 | Exhaust air pump relay | |
| 5 | Empty | |
| 6 | Empty | |
| 7 | Empty | |
| 8 | Empty | |
| 9 | Horn relay | |
| 10 | Right headlight relay | |
| 11 | Left headlight relay | |
In the passenger compartment
Fuse box located on the driver's side, behind the protective cover.
Photo is an example.
| Diagram | ||
|---|---|---|
|
||
| No. | Description of fuses | A |
| F1 | Heater fan motor | 10 |
| F2 | 15 | |
| F3 | central locking | 15 |
| F4 | fuse cigarette lighter forester | 15 |
| F5 | rear parking lights | 10 |
| F6 | SRS system | 15 |
| F7 | Fog lights | 15 |
| F8 | ABS system (ABS / ESP) | 30 |
| F9 | radio tape recorder, clock | 15 |
| F10 | Rear fog lamps | 10 |
| F11 | SRS, ignition | 15 |
| F12 | Dashboard lighting | 10 |
| F13 | Heated windshield | 20 |
| F14 | Mileage sensor | 10 |
| F15 | Windshield wiper / washer | 30 |
| F16 | Stop lights | 20 |
| F17 | Air conditioning system | 15 |
| F18 | Reversing lights, cruise control system | 15 |
| F19 | Accessory Power Connectors | 20 |
| F20 | Rear window cleaner / washer | 15 |
| F21 | Ignition coils | 15 |
| F22 | Seat heater | 15 |
| F23 | Empty | |
| Relay | ||
| 1 | Relay for main ignition circuits | |
| 2 | Power window relay | |
| 3 | Fog lamp relay | |
| 4 | Starter relay | |
| 5 | Windshield heater relay | |
| 6 | Front seat heater relay | |
