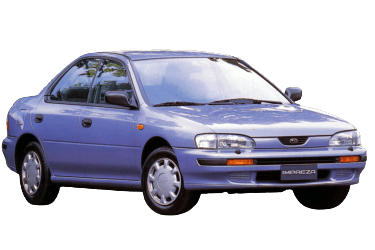

Subaru Impreza has become a real hit in the Japanese car market. This model, which appeared in 1992, was supposed to become the basis of the rally version. In the automotive hierarchy of the Subaru family, it is listed as a "subcompact compact car". In fact, the Impreza has occupied an empty niche between Subaru Legacy and Subaru Justy - a typical representative of Fuji Heavy Industries cars with an engine capacity of just over a liter. The most famous modification is, of course, the Impreza WRX, but the lineup of cars that are called "sports station wagons" deserves no less attention.
The power circuits of the Japanese car are protected by relays and fuses. The elements are installed in blocks that are located in the engine compartment and in the passenger compartment. The circuits of the Subaru Impreza (GF, GC) 1st generation 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000 with EL15 (1.5 L), EJ20 (2.0 L) and EJ25 (2.5L Turbo).
In the engine compartment
Fuse box located on the left side of the engine compartment, near the battery.
General view of the block.
| Diagram | ||
|---|---|---|
|
||
| No. | Description of fuses | A |
| 22 | Direction indicators and hazard warning lights, alarm switch | 15 |
| 23 | Rear Fog lamps relay, light switch | 20 |
| 24 | Left headlight | 15 |
| 25 | Brake lights, instrument cluster, interior lighting, luggage compartment lighting, trailer connector, clock, radio, central locking timer | 10 |
| 26 | Right headlight, high beam indicator, rear fog light relay | 15 |
| 27 | Empty | - |
| 28 | Empty | - |
| 29 | Empty | - |
| 30 | Air conditioner fan | 20 |
| 31 | Air conditioning | 10 |
| 32 | Headlight washer control unit, power window and sunroof circuit breaker | 30 |
| 33 | Main relay, fuel pump relay, engine control unit, immobilizer, fuse: "11" | 30 |
| 34 | Fuses: "4", "12", "19", "20", "21", "25" | 45 |
| 35 | Egnition lock | 45 |
| 36 | Fuses: "7", "13", "14" | 45 |
| 37 | Empty | - |
| 38 | ABS | 45 |
| 39 | Alternator, ABS, fuses: "30", "34" | - |
| Relay | ||
| R1 | Left headlight | |
| R2 | Right headlight | |
| R3 | Air conditioning | |
| R4 | Air conditioner fan | |
| R5 | Engine cooling fan | |
| R6 | Air conditioner fan | |
In the passenger compartment
Fuse box located at the bottom of the dashboard on the driver's side.
Photo - an example of the block execution.
| Assigment of fuses in the passenger compartment | ||
|---|---|---|
|
||
| No. | Decoding | A |
| 1 | Reversing lamps, reversing lamp switch (manual transmission), gear selector position sensor (automatic transmission), hazard warning light switch | 15 |
| 2 | Front wiper and washer, rear wiper and washer, multifunction switch | 20 |
| 3 | '92 -'96: Cigarette lighter, mirrors | 15 |
| '97 -'00: Impreza Cigarette Lighter Fuse , Mirrors, Engine Cooling Fan Relay (2) | 20 | |
| 4 | '92 -'96: Front Fog Light Relay | 15 |
| '97 -'00: Tail light, trailer connector, license plate light | 10 | |
| 5 | Front side light, rear side light, trailer connector, license plate light, light switch | 10 |
| 6 | '92 -'96: Empty | - |
| '97 -'00: Front fog light relay | 15 | |
| 7 | Heated rear window | 20 |
| 8 | '92 -'96: ABS | 10 |
| '97 -'00: Airbags | 15 | |
| 9 | Instrument Cluster, Lighting Control Unit, Cruise Control Switch, Front Fog Light Relay, Backlight Adjustment, Rear Fog Light Relay, Instrument Panel / Switch Lights | 10 |
| 10 | Empty | - |
| 11 | Central locking, central locking timer | 20 |
| 12 | Stop lamp switch, horn relay | 20 |
| 13 | Engine cooling fan relay | 20 |
| 14 | Engine control unit, transmission control unit | 10 |
| 15 | Air conditioning and heater control unit, heater relay, air recirculation actuator, instrument cluster, diagnostic socket, vehicle speed sensor, headlight range control, headlight washers, power window and sunroof relay, rear fog light switch, rear fog light relay | 10 |
| 16 | Fuel pump relay, engine control unit, ignition coils, immobilizer, diode, airbags | 15 |
| 17 | Radio-clocks | 15 |
| 18 | '92 -'96: ABS G-Sensor (AWD-M / T), ABS (AWD-M / T), cruise control switch, cruise control module | 15 |
| '97 -'00: ABS | 10 | |
| 19 | ABS | 20 |
| 20 | Heater motor relay | 15 |
| 21 | 15 | |
| Relay | ||
| R1 | Heated rear window | |
| R2 | Side light and interior lighting | |
| R3 | Engine cooling fan | |
