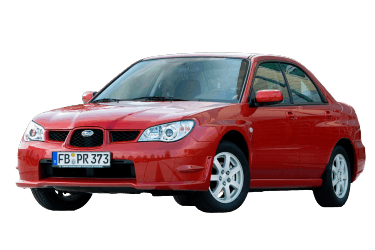

The second generation Subaru Impreza features a completely redesigned chassis. The main changes were aimed at achieving better handling with a slight increase in size: the wheelbase, body width and track were slightly larger. The length and height were slightly increased, but the recognizable proportions were retained. The four-wheel drive and the boxer engine remain unchanged. The second generation Subaru Impreza was produced in sedan and station wagon bodies. The sports models WRX and WRX STI, equipped with high-performance turbocharged engines, occupied a special position in the lineup. As for cars with naturally aspirated engines, the usual Impreza station wagon for Europe, for example, was available in versions with 1.6 and 2.0 liter engines.
The vehicle's power supply circuits are protected by relays and fuses. The elements are installed in blocks that are located in the engine compartment and in the passenger compartment. Considered circuits Subaru Impreza (GG / GD) 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007 release 2WD & 4WD with 1.5 liter engines; 1.6l; 2.0l; 2.5 l; 2.0 l TURBO and 2.5 l TURBO.
In the engine compartment
Fuse box located on the left side of the engine compartment.
Photo - an example of execution.
| Diagram | ||
|---|---|---|
|
||
| No. | A | Description of fuses |
| 1 | 20 | Heater radiator fan (main) |
| 2 | 20 | Heater radiator fan (optional) |
| 3 | 30 | (LHD models) ABS / ABS system |
| 4 | 20 | Heated rear window |
| 5 | 15 | Alarm, horn |
| 6 | 15 | Direction indicators |
| 7 | 10 | Automatic transmission control unit |
| 8 | 10 | Generator |
| 9 | 15 | Right headlight |
| 10 | 15 | Left headlight |
| 11 | 20 | Interior light switch |
| 12 | 20 | Clock, interior lighting |
| 13 | 10 | ( LHD turbocharged models ) Exhaust air valve |
| Relay | ||
|
||
| A | Main fan relay # 1 and # 2 | |
| B | ||
| C | Additional fan relay No. 1 | |
| D | Relay A / C | |
| E | Additional fan relay No. 2 | |
| F | Fan main fuse | |
| G | Additional fan fuse | |
In the passenger compartment
Fuse box located on the driver's side, at the bottom of the dashboard, behind a plastic cover.
General view of the block.
| Diagram | ||
|---|---|---|
|
||
| No. | A | Description of fuses |
| 1 | 15 | Heater fan |
| 2 | 15 | |
| 3 | 15 | Central locking, central locking remote control system |
| 4 | 20 | Cigarette lighter fuse Impreza, electric mirrors |
| 5 | 10 | Parking lights |
| 6 | 15 | SRS airbag system |
| 7 | 15 | Front fog lights |
| 8 | 20 | ABS / ABS solenoid valve |
| 9 | 15 | Radio tape recorder, clock |
| 10 | 10 | (RHD models) Fog lamp |
| 11 | 15 | Ignition system, airbag system (SRS), automatic transmission control system |
| 12 | 10 | Instrument Cluster Backlight Brightness |
| 13 | 10 | Instrument cluster, SRS indicator |
| 14 | 10 | Rear window wiper and washer |
| 15 | 30 | Windshield wiper and washer |
| 16 | 20 | Stop lights |
| 17 | 15 | Air conditioning |
| 18 | 15 | Reversing lights, cruise control |
| 19 | 20 | Heated side mirrors, defroster for windshield wiper blades |
| 20 | - | Empty |
| 21 | 15 | (left hand drive, naturally aspirated) ignition coils |
| 22 | 10 | (left hand drive) abs system |
| 23 | 20 | (left hand drive) connector for connecting additional. equipment, front seat heaters |
