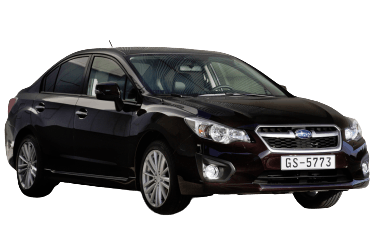

The fourth generation Subaru Impreza was created on the same platform as the XV crossover. Cars have a common front panel in the cabin, the same sidewalls of the body, front fenders, a radiator grill, lighting equipment, and other details. But the sedan has much less ground clearance (145 mm versus 220), passenger suspension settings and two engines instead of one. The fourth generation is characterized by lower fuel consumption and excellent visibility - for this, the front panel has become lower, as well as the lower edge of the side windows has dropped; mirrors also took a new place on the doors, and instead of them additional triangular glasses fit perfectly.
In our material, we will analyze in detail the fuse circuits of the 4th generation Subaru Impreza (GJ / GP bodies) 2011, 2012, 2013, 2014, 2015, 2016. We will give the locations and photos of the mounting blocks. Separately, we note the fuse responsible for the cigarette lighter.
In the engine compartment
Fuse box located on the left side of the engine compartment, next to the battery.
General view of the block.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| 1 | ABS block. Vehicle dynamics control unit | 30 |
| 2 | Main cooling fan | 25 |
| 3 | Auxiliary cooling fan | 25 |
| 4 | Empty | - |
| 5 | Empty | - |
| 6 | Headlights (low beam) | 30 |
| 7 | Headlights (high beam) | 15 |
| 8 | Backup | 20 |
| 9 | Horn | 15 |
| 10 | Heated rear window. Heated mirrors | 25 |
| 11 | Fuel pump | 15 |
| 12 | Continuously variable transmission control unit | 20 |
| 13 | The engine control unit | 7.5 |
| 14 | Direction indicator and alarm | 15 |
| 15 | Reversing and lighting relays | 15 |
| 16 | Generator | 7.5 |
| 17 | Empty | - |
| 18 |
|
10 |
| 19 | Headlight (low beam - right) | 15 |
| 20 | Headlight (low beam - left) | 15 |
In the passenger compartment
Fuse box located on the driver's side, at the bottom of the dashboard. To access, pull the cover down.
Photo - an example of the block execution.
| Diagram | ||
|---|---|---|
|
||
| No. | Decoding | A |
| 1 | Trailer hitch connector | 20 |
| 2 | Spare | 15 |
| 3 | Door lock | 15 |
| 4 | Front wiper defroster relay | 10 |
| 5 | Combined counter. Clock | 10 |
| 6 | Remote controlled rear view mirrors. Seat heating relay | 7.5 |
| 7 | Combined counter. Integrated unit | 15 |
| 8 | Stop lamp | 10 |
| 9 | Front wiper blade | 15 |
| 10 | Power supply (battery) | 7.5 |
| 11 | Direction indicator block | 7.5 |
| 12 | Transmission control unit. The engine control unit. Integrated unit | 15 |
| 13 |
|
20 |
| 14 | Parking lights. Rear light. Rear combination lamp | 15 |
| 15 | Trunk lighting. Clock | 10 |
| 16 | Lighting | 7.5 |
| 17 | Seat heaters | 15 |
| 18 | Standby light | 10 |
| 19 | Power window relay. Main radiator fan relay | 7.5 |
| 20 |
|
10 |
| 21 | Starter relay | 10 |
| 22 | Air conditioning . Rear window defogger relay coil | 7.5 |
| 23 | Empty | - |
| 24 | Audio system. Clock | 10 |
| 25 | SRS airbag system | 15 |
| 26 | 2013 - 2015: Model 7.5A Power Window Relay. Main radiator fan relay) | 7.5 |
| 27 | Blower fan | 15 |
| 28 | 15 | |
| 29 | Fog light | 15 |
| 30 | Empty | - |
| 31 | Automatic air conditioner. Integrated unit | 7.5 |
| 32 | Clutch switch. Steering lock control unit | 7.5 |
| 33 | Vehicle dynamics control unit | 7.5 |
