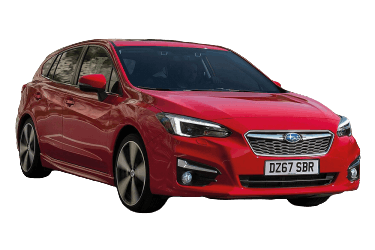

The fifth generation Subaru Impreza is built on a completely new modular platform. Thanks to modern architecture, the car body has become stiffer, the car obeys the steering better. The body has added in marker lamps - the width and height have grown by 41 and 38 mm, respectively, and the wheelbase has added 25 mm. But at the same time, the height was slightly reduced - by 10 mm. The lineup is represented by sedan (GK) and hatchback (GT) bodies. Traditionally for the brand, the car is equipped with boxer four-cylinder engines that work in conjunction with an all-wheel drive system.
In our material, we will analyze in detail the fuse circuits of the 5th generation Subaru Impreza (GK / GT body) 2017, 2018, 2019, 2020. Here are the locations and photos of the mounting blocks. Separately, we note the fuse responsible for the cigarette lighter.
In the engine compartment
Fuse box located on the left side of the engine compartment.
Access example.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| A | Main fuse | |
| 1 | Horn | 7.5 |
| 2 | 7.5 | |
| 3 | Right headlight - low beam | 15 |
| 4 | Left headlight - low beam | 15 |
| 5 | ACTGS (2017-2018) | 7.5 |
| 6 | Right headlight - high beam | 10 |
| 7 | Left headlight - high beam | 10 |
| 8 | taillights | 10 |
| 9 | Seat occupant detection system | 10 |
| 10 | OBD On-Board Diagnostic System | 7.5 |
| 11 | Rear running lights (switch) | 7.5 |
| 12 | JB-B | 30 |
| 13 | Alarm | 15 |
| 14 | Fuel pump | 20 |
| 15 | D-OP + B / Empty | 7.5 |
| 16 | MB-B | 10 |
| 17 | central locking | 15 |
| 18 | DCM | 10 |
| 19 | Speed sensor | 20 |
| 20 | Variable speed drive | 7.5 |
| 21 | Ignition coils | 15 |
| 22 | compression, AVCS valve | 10 |
| 23 | E / G2 | 10 |
| 24 | Empty | - |
| 25 | Empty | - |
| 26 | Oxygen sensor heater relay | 20 |
| 27 | E / G1 | 15 |
| 28 | Empty | - |
| 29 | Central locking, radio tape recorder, clock, reversing light | 30 |
| 30 | Heated rear windows | 25 |
| 31 | Audio system | 20 |
| 32 | vehicle dynamic stability control VDC SOL | 30 |
| 33 | Main cooling fan | 25 |
| 34 | Additional cooling fan | 25 |
| 35 | Heated windshield - relay | 10 |
| 36 | Front fog lights | 15 |
| 37 | Heater fan | 15 |
| 38 | 15 | |
| 39 | Empty | - |
| 40 | Front wiper | 30 |
| 41 | Front windscreen washer | 15 |
| 42 | Rear wiper | 15 |
| 43 | Empty | - |
| 44 | Empty | - |
In the paseenger compartment
Located on the driver's side, at the bottom of the dashboard, behind the protective cover.
An example of access to a fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| 1 | Empty | - |
| 2 | Cigarette lighter Impreza | 20 |
| 3 | IG A-1 | 7.5 |
| 4 | Audio system, navigation | 15 |
| 5 | IG B-2 | 15 |
| 6 | Empty | - |
| 7 | 12V power outlet | 15 |
| 8 | Air conditioning | 15 |
| 9 | Air conditioning | 7.5 |
| 10 | IG B-1 | 7.5 |
| 11 | Empty | - |
| 12 | Empty | - |
| 13 | IG A-3 | 7.5 |
| 14 | UNIT + B | 7.5 |
| 15 | Instrument cluster (instrument cluster) | 7.5 |
| 16 | Empty | - |
| 17 | Rear view mirrors | 7.5 |
| 18 | LAMP IG | 7.5 |
| 19 | IG A-2 | 10 |
| 20 | Airbags | 10 |
| 21 | Empty | - |
| 22 | STRG / H | 15 |
| 23 | Daytime Running Lights | 10 |
| 24 | Empty | - |
| 25 | Empty | - |
| 26 | serves at the same time to reset error codes in the computer and power the radio | 10 |
| 27 | A / C + B (2019) | - |
| 28 | Rear fog lights | 20 |
| 29 | Empty | - |
| 30 | Empty | - |
| 31 | Empty | - |
| 32 | Parking lights, license plate lights, parking lights, instrument cluster lights | 7.5 |
| 33 | Ignition switch, starter | 7.5 |
| 34 | Empty | - |
| 35 | Empty | - |
| 36 | Ignition switch, starter | 7.5 |
| 37 | Stop lamps | 7.5 |
| 38 | EyeSight system | 7.5 |
