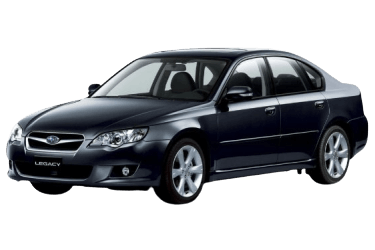

The fourth generation Subaru Legacy was presented as an all-wheel drive sedan or station wagon. Japanese-made cars belong to the European class D. A feature of the model is the Subaru boxer engine, which, due to its low center of gravity, provides excellent stability of the car in difficult road conditions. Japanese engineers have managed to preserve the visual continuity of generations, while giving the new Legacy a more dynamic and elegant appearance. A certain charm to the car is added by the headlights of a special shape, a powerful embossed hood, smoothly flowing down to the branded hexagonal radiator grille. If we talk about the internal content, the technical filling and the level of comfort are at an even higher level than in previous generations.
The vehicle's power supply circuits are protected by fuses and relays. The elements are installed in blocks that are located in the engine compartment and in the passenger compartment. The fuse diagram of the Subaru Legacy (BL / BP) 4th generation 2003, 2004, 2005, 2006, 2007, 2008, 2009 model year, as well as the Subaru Outback (BP) of the 3rd generation with 2.0 liter engines are considered; 2.0 L (Turbo); 2.5 l and 3.0 l are considered.
In the engine compartment
Fuse box located on the driver's side, behind a plastic cover.
General view of the block.
| Diagram - Type 1 | ||
|---|---|---|
|
||
| No. | Decoding | A |
| F1 | Generator | 120 |
| F2 | ABS / ESP system | 30 |
| F3 | Spare | 25 |
| F4 | Cooling fan motor | 25 |
| F5 | 25 | |
| F6 | Spare | 20 |
| F7 | Spare | 15 |
| F8 | Left headlight | 15 |
| F9 | Spare | 20 |
| F10 | Sound signals (Horn) | 15 |
| F11 | Spare | 25 |
| F12 | Fuel pump fuse | 15 |
| F13 | Electronic transmission control module (TCM) | 15 |
| F14 | Spare | 7.5 |
| F15 | Spare | 15 |
| F16 | Spare | 20 |
| F17 | Generator | - |
| F18 | Empty | - |
| F19 | Exhaust air pump | 60 |
| F20 | Exhaust air system | 10 |
| F21 | Spare | 50 |
| F22 | Ignition Lock Chains | 50 |
| F23 | Spare | 50 |
| F24 | ABS / ESP system | 50 |
| F25 | Spare | 50 |
| F26 | Spare | 30 |
| F27 | Engine management | 30 |
| F28 | 30 | |
| No. | Relay modules | |
| 1 | Empty | |
| 2 | Headlamp | |
| 3 | ||
| 4 | Heated rear window | |
| 5 | parking lights | |
| 6 | Horn | |
| 7 | Empty | |
| 8 | Air conditioning system | |
| 9 | High beam headlights | |
| 10 | Empty | |
| 11 | Exhaust air pump | |
| 12 | ||
| 13 | ||
| Diagram of the engine compartment block Legacy / Outback - Type 2 | ||
|---|---|---|
|
||
| No. | Decoding | A |
| 1 | ABS electronic control unit, electronic stability control system | 30 |
| 2 | Cooling system main fan motor (H4) | 25 |
| 3 | Additional cooling fan motor (H6) | 25 |
| 4 | Cooling system main fan motor | 25 |
| 5 | Spare | 20 |
| 6 | Right headlight | 15 |
| 7 | Left headlight | 15 |
| 8 | Reversing lights | 20 |
| 9 | Horn | 15 |
| 10 | Heated rear window | 25 |
| 11 | Fuel pump | 15 |
| 12 | Electronic control unit for automatic transmission | 15 |
| 13 | Electronic engine control unit | 7.5 |
| 14 | Turn signal interrupter relay | 15 |
| 15 | Parking light switch | 20 |
| 16 | Generator | 7.5 |
| Relay | ||
| 1 | Main relay | |
| 2 | Left headlight relay | |
| 3 | Right headlight relay | |
| 4 | Horn relay | |
| 5 | Relay parking lights | |
| 6 | Heated rear window relay | |
|
||
| AC | Air conditioner relay | |
In the passenger compartment
The fuse box is located on the driver's side, at the bottom of the dashboard behind a plastic cover.
Photo is an example of execution.
| Diagram | ||
|---|---|---|
|
||
| No. | Description of fuses | A |
| 1 | Trailer connector, rear blower motor | 20 |
| 2 | Empty | - |
| 3 | central locking | 15 |
| 4 | Relay, anti-icer brushes, electric sunroof | 15 |
| 5 | Instrument cluster | 15 |
| 6 | Power mirrors, seat heater relay, vanity mirror lamp | 7.5 |
| 7 | Instrument cluster, integrated unit | 15 |
| 8 | Stop lights | 20 |
| 9 | Heated mirrors, defroster brushes | 20 |
| 10 | Power supply | 7.5 |
| 11 | Clock, turn signal interrupter relay | 7.5 |
| 12 | Electronic control unit for automatic transmission, electronic control unit SRS, electronic engine control unit, integrated unit | 15 |
| 13 | 12V Socket (rear) | 20 |
| 14 | Front clearance, rear clearance, combination lamp | 15 |
| 15 | Empty | - |
| 16 | Backlight | 15 |
| 17 | Seat heaters | 15 |
| 18 | Reversing lights | 10 |
| 19 | Right headlight relay | 7.5 |
| 20 | Cigarette lighter fuse Legacy / Outback | 10 |
| 21 | Starter relay | 7.5 |
| 22 | Air conditioning, rear window defogger relay | 15 |
| 23 | Rear window wiper, rear window washer | 15 |
| 24 | Audio system, clock | 15 |
| 25 | Passive Safety System (SRS) | 15 |
| 26 | Power window relay | 15 |
| 27 | Heater blower motor | 15 |
| 28 | 15 | |
| 29 | Fog lights | 15 |
| 30 | Windshield wiper motor, windshield washer pump | 30 |
| 31 | Air conditioning electronic control unit, integrated unit | 7.5 |
| 32 | Left headlight relay | 7.5 |
| 33 | Electronic control unit ABS ABS, electronic stability control system | 7.5 |
| Relay board located on the side of the main unit | |
|---|---|
|
|
| F1 | Engine management |
| F2 | Empty |
| F3 | Empty |
| F4 | Empty |
| 1 | Fog lamp relay |
| 2 | Empty |
| 3 | window lifters |
| 4 | heater fan |
| 5 | Rear fog lamp relay |
| 6 | heated mirrors |
| 7 | heated windshield |
| 8 | heated seats |
